9400022 Pinion Yoke KIT 3R series fits 1966 to 1971 Oldsmobile F-85, Cutlass, 4-4-2 with 8.2 inch BOP rear end with 27 spline pinion and bolt in style axles
Part Number:
9400022


UPC:
Your Cost $138.55
STATUS:  IN STOCK - FREE SHIPPING

9400022

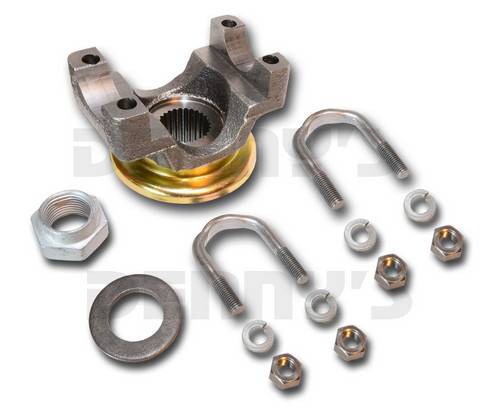

  • 3R SERIES PINION YOKE
    • INCLUDES - pinion nut, washer and u-bolt set
  • 27 spline
  • U-Bolt style
  • Fits 1966 to 1971 Oldsmobile F-85, Cutlass, 4-4-2 with BOP rear axle housing with bolt in style axles
    • Commonly known as the BOP Rear End (Buick-Olds-Pontiac)
  • 1.942 seal surface diameter
    • DOES NOT FIT early BOP housings that originally had a pinion yoke with the 1.642 seal surface diameter
9400022 Pinion Yoke KIT 3R series fits 1966 to 1971 Oldsmobile F-85, Cutlass, 4-4-2  with 8.2 inch BOP rear end with 27 spline pinion and bolt in style axles
9400022 Pinion Yoke KIT 3R series fits 1966 to 1971 Oldsmobile F-85, Cutlass, 4-4-2 with 8.2 inch BOP rear end with 27 spline pinion and bolt in style axles
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $138.55

9400022

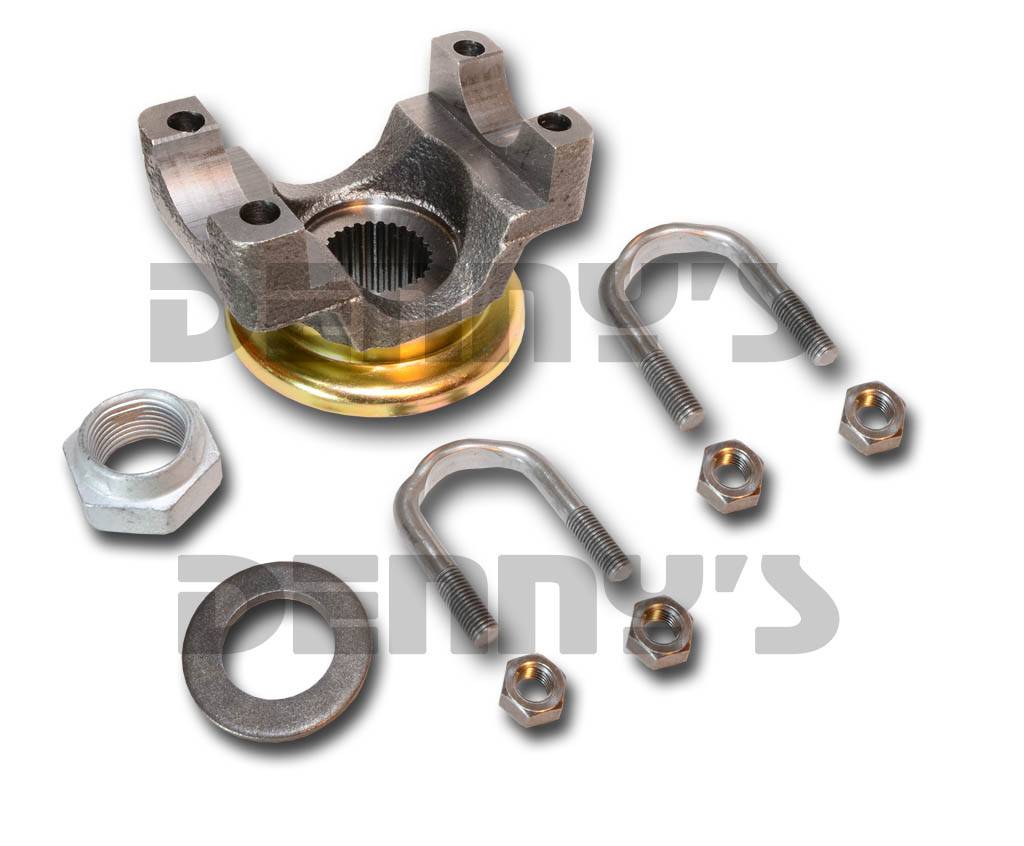

  • 3R SERIES PINION YOKE
    • INCLUDES - pinion nut, washer and u-bolt set
  • Fits 1966 to 1971 Oldsmobile F-85, Cutlass, 4-4-2 with BOP rear axle housing with bolt in style axles
    • Commonly known as the BOP Rear End (Buick-Olds-Pontiac)

Fits the following vehicles with 8.2 inch BOP rear axle with 27 spline pinion

  • Olds F-85, Cutlass, 4-4-2
    • 1966, 1967, 1968, 1969, 1970, 1971
  • Tempest/GTO
    • 1966, 1967, 1968, 1969, 1970, 1971
  • Firebird
    • 1967, 1968, 1969, 1970, 1971
  • Buick GS/Gran Sport
    • 1966, 1967, 1968, 1969, 1970, 1971

NOTE: You must be careful if you have a 1971 or 1972 because the rear end can be either the 8.2 inch BOP with 27 spline pinion or the 8.5 inch Corporate 10 bolt with 30 spline pinion

Dimensions

  • U-Bolt Style to match original equipment
  • 27 splines
  • Designed for 3R Series universal Joint
    • #24 = 2.556 inches (approx 2  9/16) is the distance between the yoke inner surfaces where the "C" Clips lock
    • #22 = 1.125 inches (1 1/8) is the diameter of the u-joint bearing caps that fits into pinion yoke
  • #25 = 1.942 seal surface diameter
    • DOES NOT FIT early BOP housings that originally had a pinion yoke with the 1.642 seal surface diameter
  • #21A = 2 7/8 inches tall
