9321478 Pinion Yoke KIT 1330 Series 28 splines 5 inches tall fits Ford 9 inch rear end 3.625 x 1.125 u-joint Ford BIG Cap

Part Number:
9321478

UPC:

Your Cost $129.95

STATUS: IN STOCK - FREE SHIPPING

9321478

Ford 9 inch Pinion Yoke KIT
- Fits all Ford 9 inch rear ends with 28 spline pinion gear
- INCLUDES: u-bolt set and pinion nut
1330 series - 3.625 x 1.125 inch Ford Big Cap
28 splines
5 inches tall
U-Bolt style

Fits universal joint 3.625 cap to cap with 1.125 Bearing caps

DIMENSIONS

SPLINE OD = 1.235
D = 1.125
E = 3.625
Q = 2.42
R = 1.81
S = 5.03

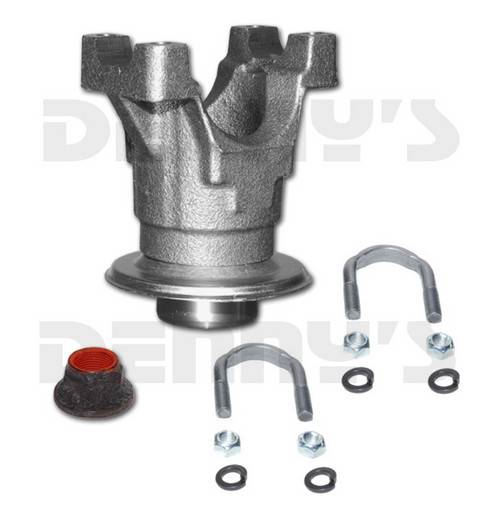

9321478 Pinion Yoke KIT 1330 Series 28 splines 5 inches tall fits Ford 9 inch rear end 3.625 x 1.125 u-joint Ford BIG Cap

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $129.95

9321478

Ford 9 inch Pinion Yoke KIT
- Fits all Ford 9 inch rear ends with 28 spline pinion gear
- INCLUDES: u-bolt set and pinion nut
1330 series - 3.625 x 1.125 inch Ford Big Cap
28 splines
5 inches tall
U-Bolt style

Fits universal joint 3.625 cap to cap with 1.125 Bearing caps

DIMENSIONS

SPLINE OD = 1.235
D = 1.125
E = 3.625
Q = 2.42
R = 1.81
S = 5.03

TIP: You can also use this 5 inch tall pinion yoke to replace your 4 inch tall pinion yoke when you need to get your slip yoke into the transmission 1 inch further. Ideal way to get that extra inch that you need when the driveshaft is a bit too short.

9321478 Pinion Yoke KIT 1330 Series 28 splines 5 inches tall fits Ford 9 inch rear end 3.625 x 1.125 u-joint Ford BIG Cap

You May Also Need These Parts to Complete the Job

TIMKEN 7044NA Pinion Seal fits Ford 9 inch rear end Part#: 7044NA $13.96	Dana Spicer 2-94-58X U-Bolt Set fits 1.125 bearing cap diameter 1.590 CL for FORD Big Cap 1310 or 1330 pinion yoke, transfer case yoke or transmission yoke Part#: 2-94-58X $6.85
DANA SPICER 5-1204X - Universal Joint 1330 Series FORD with (2) 1.125 Bearing Caps Greaseable Part#: 5-1204X $19.38	DANA SPICER 5-7438X Universal Joint 1330 Series FORD with (2) 1.125 Bearing Caps NON Greaseable Part#: 5-7438X $28.95
