Street Rod HD Driveshafts > STAGE 2

Denny's SRHD3-S2

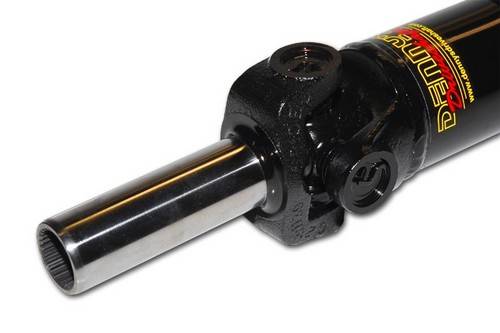

Street Rod HD Driveshaft 3 inch Stage 2 with Sonnax 1330 Slip Yoke

• STAGE 2 is recommended for use with up to 700 horsepower.


STAGE 2 Includes:

• 3 inch Diameter Tube - DOM Steel
  • "IF YOU CAN POSSIBLY TWIST OUR STREET ROD STEEL DRIVESHAFT TUBING OR BREAK OUR WELDS...WE'LL REPLACE IT FREE"
  • All Denny's Driveshafts are assembled using the latest computer controlled welding equipment for the strongest welds possible.
  • All Denny's Driveshafts are High Speed - High RPM Balanced and Tested for smooth operation.  This is priceless when it comes to customer satisfaction!
  • All Denny's Driveshafts come Fully Assembled and Balanced with slip yoke and universal joints.... ready to bolt in!
• SONNAX 1330 series FORGED SLIP YOKE
  • ►Available to fit all 27 and 32 spline GM automatic transmissions
  • ►Available to fit all 27 and 32 spline Muncie, Borg Warner, AutoGear, Saginaw, Richmond
  • ►Available to fit 28 and 31 spline Ford C4, C6, AOD, and 4R70W automatics
  • ►Available to fit 28 and 31 spline T5, T10, Top Loader, Tremec TKO 600, T56 Magnum
  • NOT Available in 1330 for DODGE transmisions...  Please CLICK HERE for Dodge Driveshafts
• Dana Spicer NON Greaseable Universal Joints
  • FRONT universal joint 1330 series to match slip yoke

  • REAR universal joint can be 1330, 1350, 7290, 3R to match your rear end pinion yoke.

    • Flat Flange Yoke option available for Ford 8.8 rear
• MAXIMUM LENGTH for 3 inch is 55 inches for Dimension B6 on Diagram "B"

  • Please contact us by email if you require a longer length with a 3 inch tube OD.  EMAIL CLICK HERE
• MAXIMUM LENGTH for 3 inch is 57 inches for Dimension 55 on Diagram "K"
  • Please contact us by email if you require a longer length with a 3 inch tube OD.  EMAIL CLICK HERE
•
  • Denny's Free Lifetime Labor means for example if you ever need it shortened, re-balanced, change u-joints....the Labor is FREE
    • Please see our Free Lifetime Labor page for details. CLICK HERE


HOW TO MEASURE

You have 2 choices ...see both choices below

CHOICE >>>>>> If your rear end has a u-bolt or strap and bolt style PINION YOKE then use Diagram "B":

• MAXIMUM LENGTH restrictions for SRHD3-S2:

  • DIAGRAM "B" ...Number "B6" should be approximately 55 inches or less.

    • Please contact us by email if you require a longer length with a 3 inch tube OD.  EMAIL CLICK HERE
    • If a longer length is required please see our 3.5 inch Street Rod HD Stage 2 Driveshaft
• CLICK HERE to see Diagram "B" now

CHOICE >>>>>> Use Diagram "K" ONLY if you have a Ford 8.8 rear with a FLAT FLANGE.

• PLEASE NOTE:  There will be an Additional cost for the correct flange yoke. CLICK HERE for Flange Yokes
• MAXIMUM LENGTH restrictions for SRHD3-S2:

  • DIAGRAM "K" ...Number "55" should be approximately 57 inches or less.
    • CLICK HERE to see Diagram "K" now
    • Please contact us by email if you require a longer length with a 3 inch tube OD.  EMAIL CLICK HERE
    • If a longer length is required please see our 3.5 inch Street Rod HD Stage 2 Driveshaft
  • DIAGRAM "L" ...we will also need NUMBERS 58, 59 and 60 on this page to build your order

    • CLICK HERE to see Diagram "L" now
•
