Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck


Driveshaft and Driveline Parts > HARDWARE

HARDWARE

Denny's stocks all the hardware you will need to install your driveshaft.

U-Bolt Sets for 1310, 1330 and 1350 as well as the hard to find set for the early GM 3R u-bolt style rears.  We also carry Strap and Bolt sets for GM and Mopar installations.  Flange Bolts for Fords.  Nuts to install a CV yoke on a New Process 203, 205, 208, or 241 Transfer case and Double Cardan CV driveshaft bolts.

    •  Please see Torque Specs at bottom of this page for proper tightening of U-Bolt Sets and Strap and Bolt Sets.

 Click on the parts listed below for a full description and photo

HARDWARE

U-Bolts

U-Bolts for 1.062 caps

U-Bolts for 1.062 CV YOKE ONLY

U-Bolts for Ford 1.125 caps

U-Bolts for Dodge 1.125 caps

U-Bolts FOR 1.188 caps

U-Bolts for 1.375 caps

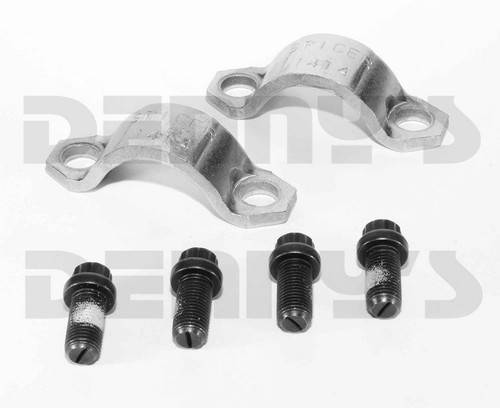

Strap & Bolt Sets

For FORD

DANA SPICER 3-70-28X Strap and Bolt set CLICK HERE for More Details Part Number: 3-70-28X
$7.95
IN STOCK

For GM with 1.062 cap

For GM with 1.125 cap

For GM with 1.187 cap

For GM with 1.375 cap

For DODGE with 1.062 cap

For DODGE with 1.078 cap

For DODGE with 1.125 cap

For DODGE with 1.188 cap

For DODGE with 1.375 cap

For JEEP

For 1610 series

For 1710/1760/1810 series

For SPL90/SPL100 series

For SPL170 series

For SPL250 series

Pinion Flange Bolts

Transmission/Transfer Case Flange Bolts

Double Cardan CV Bolts

Transfer Case Nut

58-64 Chevy 55-72 Truck Bolt Set for 2 Piece Driveshaft

Diff Cover Bolts

Ring Gear Bolts

Spindle Bolts and Nuts

4x4 AXLE NUT and WASHER

4x4 SNAP RING

PTO - SQUARE KEY

PTO - WOODRUFF KEY

1504-1 WOODRUFF KEY .188 wide 1 inch long CLICK HERE for More Details Part Number: 1504-1
$1.30
IN STOCK
1505-1 WOODRUFF KEY .250 wide 1 inch long CLICK HERE for More Details Part Number: 1505-1
$1.39
IN STOCK
1506-1 WOODRUFF KEY .312 wide 1 inch long CLICK HERE for More Details Part Number: 1506-1
$1.45
IN STOCK

PTO Set Screw

Ford 8 inch Housing Studs and Washers

Ford 9 inch Housing Studs and Washers

Roll Pin

Boot Band

NUT - For Midship Stub Spline

Vacuum Fitting

Balance Weights

0.14 oz.

0.17 oz.

0.28 oz.

0.35 oz.

TORQUE SPECIFICATIONS

Please see Torque Specs below for proper tightening of U-Bolt Sets and Strap and Bolt Sets.

Note:  Specifications below are the Recommended Torque specifications listed by the DANA SPICER Corporation and are to be used as a guideline to install attaching hardware for each of the universal joint series shown in the chart.

Note:  Failure to tighten attaching hardware properly can result in hardware damage and or universal joint and driveline damage.  Please consult your vehicle service manual for manufacturers torque specifications if not listed below.

image/jpeg

  • U-BOLTS
  • Recommended Torque to Tighten Correctly
          • 1310 Series 14 to 17 Lb. Ft.
          • 1330 Series 14 to 17 Lb. Ft.
          • 1350 Series 20 to 24 Lb. Ft.
          • 1410 Series 20 to 24 Lb. Ft.

image/jpeg

  • STRAPS & BOLTS
  • Recommended Torque to Tighten Correctly
          • 1310 Series Dana Spicer Yokes 13 to 18 Lb. Ft.
          • 1330 Series Dana Spicer Yokes 13 to 18 Lb. Ft.
          • GM Yokes 3R Series 30 to 35 Lb. Ft.
          • GM Yokes 1310 Series long bolts 30 to 35 Lb. Ft.
          • GM Yokes 1330 Series long bolts 30 to 35 Lb. Ft.
          • GM Yokes 1350 Series long bolts 30 to 35 Lb. Ft.
          • 1350 Series Dana Spicer Yokes 30 to 35 Lb. Ft.
          • 1350 Series Corvette Metric Bolts 25 to 30 Lb. Ft.
          • 1410 Series Dana Spicer Yokes 30 to 35 Lb. Ft.
          • 7260 Dodge 13 to 18 Lb. Ft.
          • 7290 Dodge 13 to 18 Lb. Ft.
