AAM American Axle Manufacturing Slip Yokes
Slip Yokes

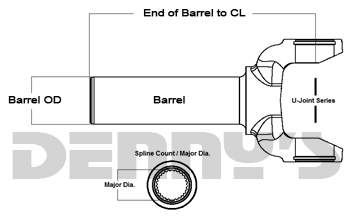

| AAM Part Number | Vehicle Make | Photo | Lockup and Series |
Spline Count (Diameter) |
CL to End (inches) |
Barrel OD (inches) |
Notes | |
|---|---|---|---|---|---|---|---|---|
| 1555 series | ||||||||

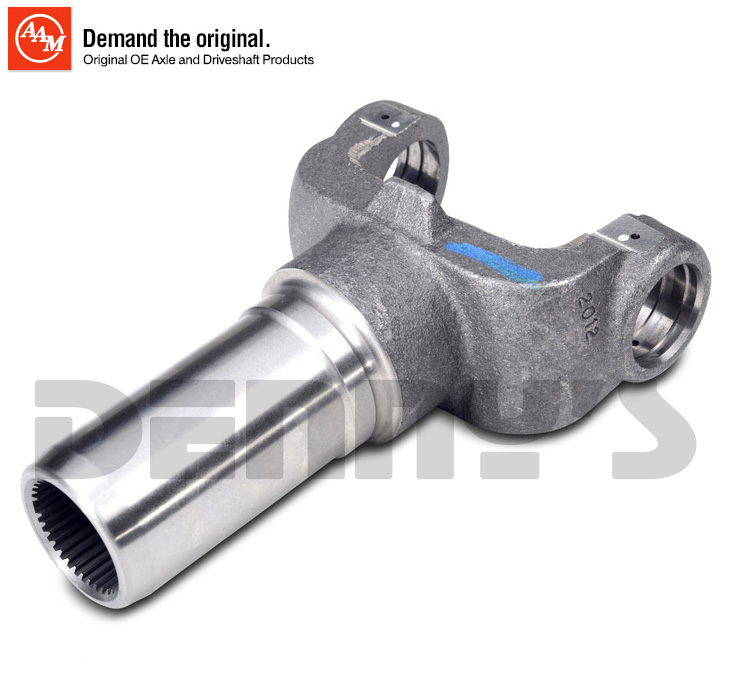

| 40038044 | Chrysler | MORE INFO |  |
Outside Snap Ring 1555 Series |
34 Based on 36 (1.55 in.) |
7.44 in. | 2.07 in. | Order 40021327 boot and clamp Kit if needed |

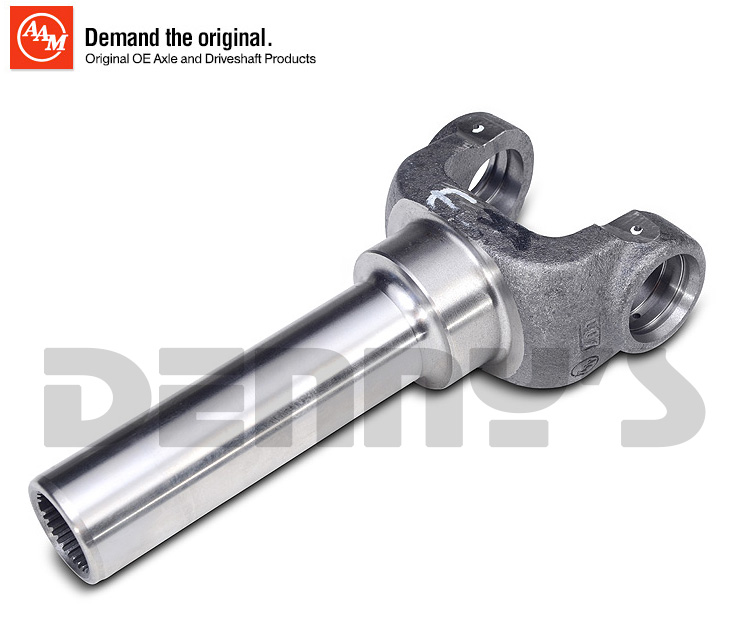

| 40042217 | Chrysler | MORE INFO |  |
Outside Snap Ring 1555 Series |
28 Based on 30 (1.28 in.) | 9.05 in. | 1.84 in. | Without Damper |
| 1485 series | ||||||||

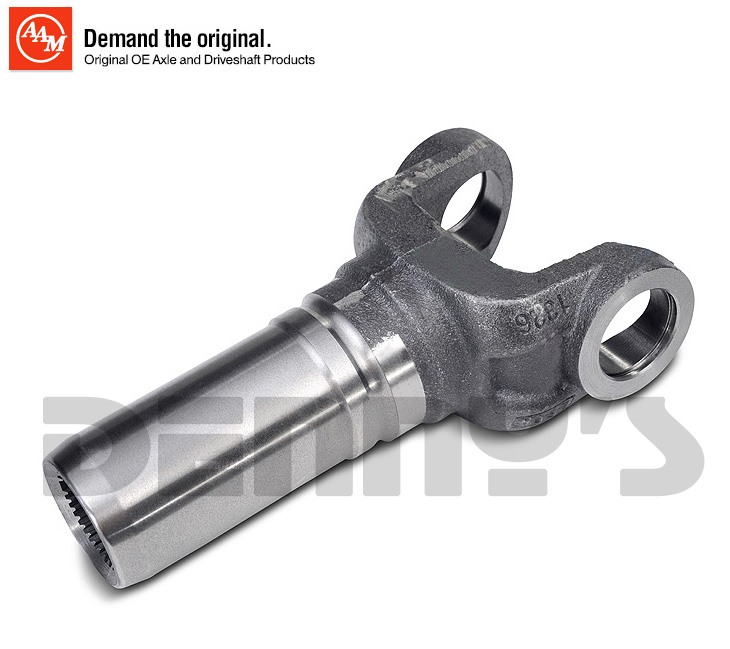

| 40021324 | Chrysler | MORE INFO |  |
Outside Snap Ring 1485 Series |
35 Based on 36 (1.55 in.) | 7.44 in. | 2.07 in. | Order 40021327 boot & clamp Kit if needed |

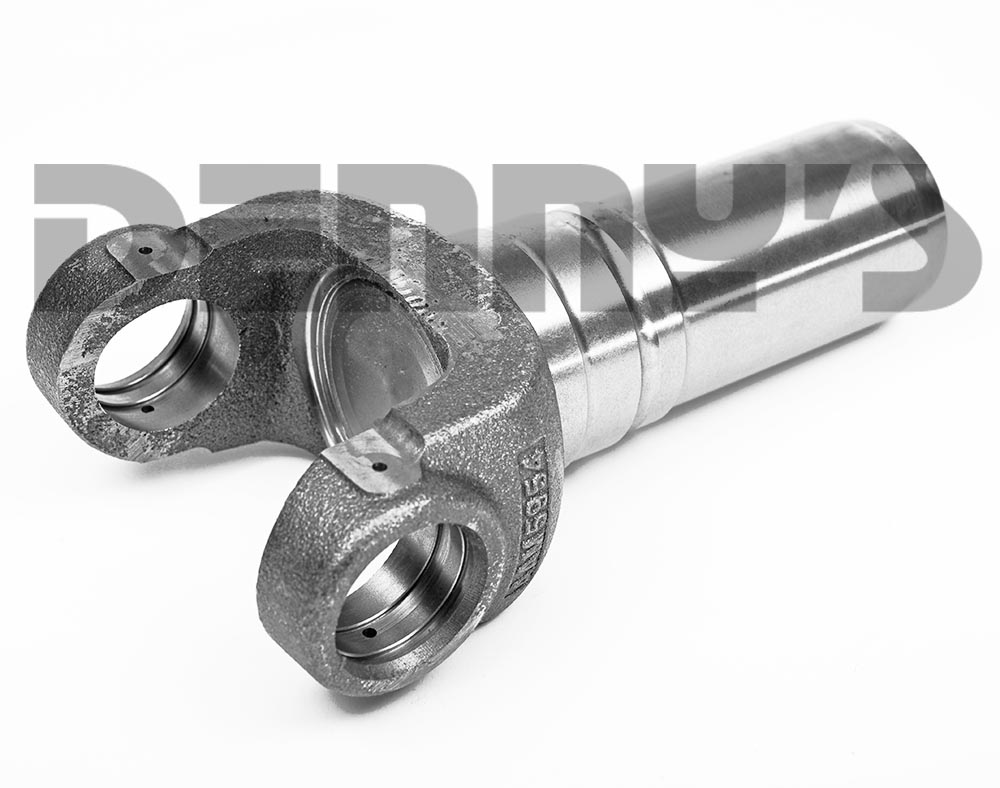

| 40038564 | Chrysler | MORE INFO |  |
Outside Snap Ring 1485 Series |
35 Based on 36 (1.55 in.) | 7.44 in. | 2.07 in. | Order 40021327 boot & clamp Kit if needed |
| 40038571 | Chrysler | MORE INFO |
Outside Snap Ring 1485 Series |
32 Based on 34 (1.75 in.) | 9.55 in. | 2.30 in. | NOT Plated | |

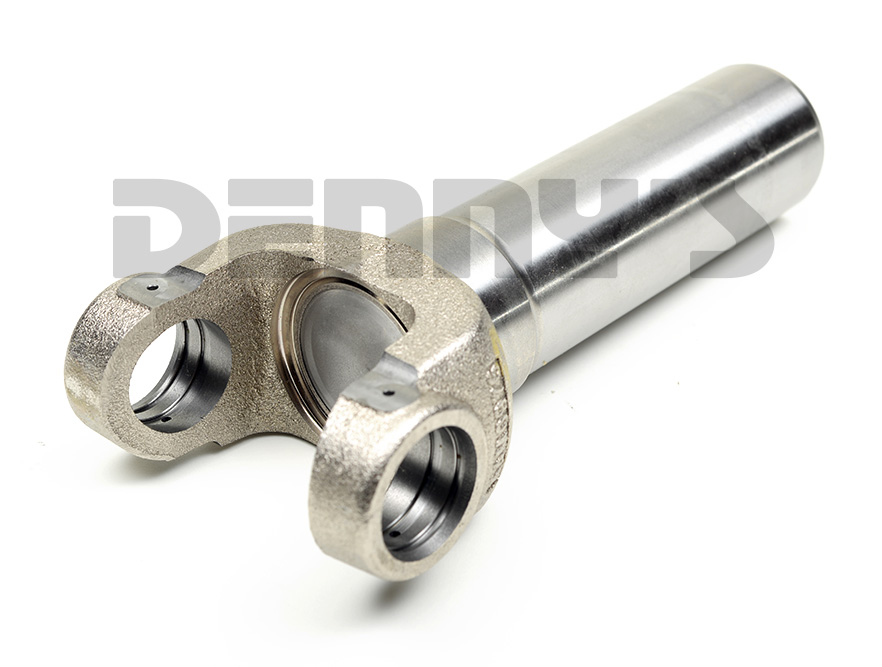

| 40040694 | Chrysler | MORE INFO |  |
Outside Snap Ring 1485 Series |
30 Based on 31 (1.61 in.) | 9.53 in. | 2.20 in. | Without Damper, Nickel Plated |
| 40041575 | Chrysler | MORE INFO |
Outside Snap Ring 1485 Series |
32 Based on 34 (1.75 in.) | 9.55 in. | 2.30 in. | Nickel Plated | |
| 40110101 | GM | MORE INFO |
Outside Snap Ring 1485 Series |
30 Based on 31 (1.61 in.) | 8.34 in. | 2.20 in. | ||
| 40110102 | GM | MORE INFO |
Outside Snap Ring 1485 Series |
30 Based on 31 (1.61 in.) | 8.34 in. | 2.20 in. | Nickel Plated | |
| 40110105 | GM | MORE INFO |
Outside Snap Ring 1485 Series |
35 Based on 36 (1.55 in.) | 8.34 in. | 2.20 in. | ||
| 1415 series | ||||||||
| 40077164 | GM |
Outside Snap Ring 1415 Series |
34 Based on 36 (1.20 in.) | 7.44 in. | 2.07 in. | |||
| 26064291 | GM | MORE INFO |
Outside Snap Ring 1415 Series |
31 Based on 32 (1.37 in.) | 7.87 in. | 1.73 in. | ||
| 26064292 | GM | MORE INFO |
Outside Snap Ring 1415 Series |
31 Based on 32 (1.37 in.) | 6.93 in. | 1.88 in. | Nickel Plated | |

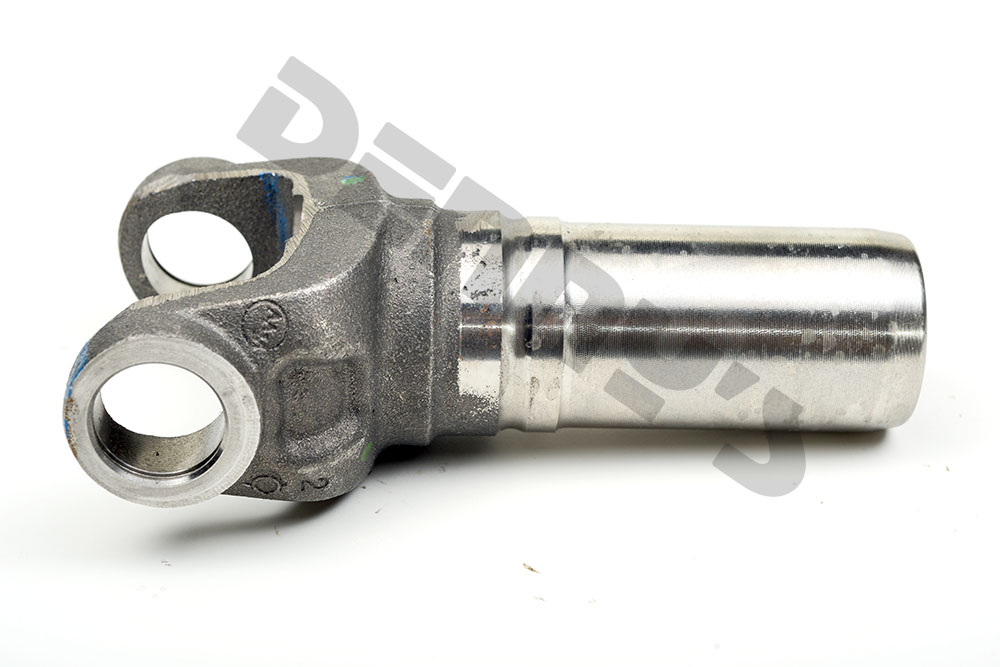

| 40021321 | Chrysler | MORE INFO |  |
Outside Snap Ring 1415 Series |
35 Based on 36 (1.55 in.) | 7.28 in. | 2.07 in. | Order 40021327 boot & clamp Kit if needed |
| 40021530 | GM | MORE INFO |
Outside Snap Ring 1415 Series |
30 Based on 32 (1.37 in.) | 7.87 in. | 1.88 in. | Nickel Plated | |

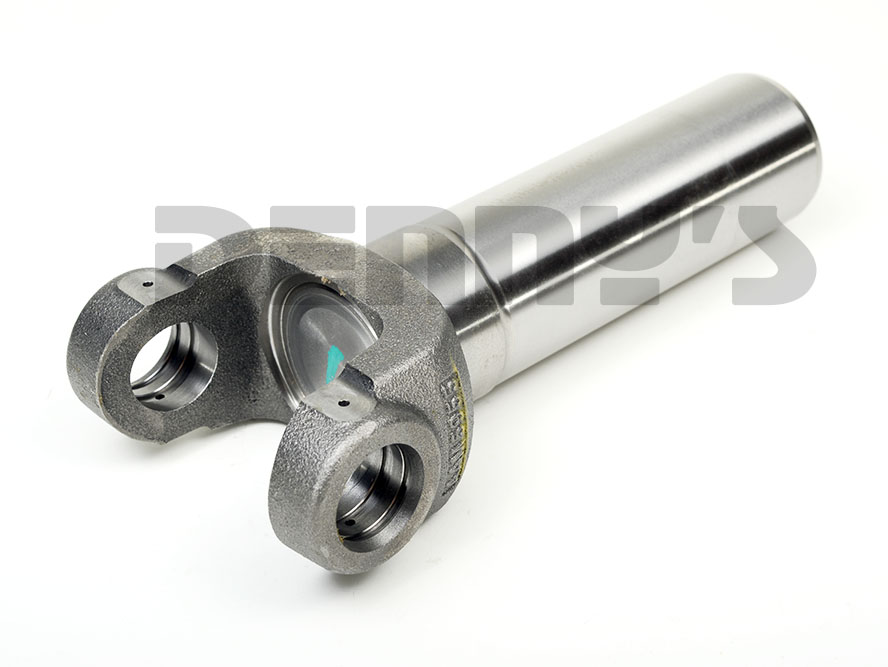

| 40038532 | Chrysler | MORE INFO |  |
Outside Snap Ring 1415 Series |
32 Based on 34 (1.75 in.) | 9.53 in. | 2.30 in. | Without Damper |

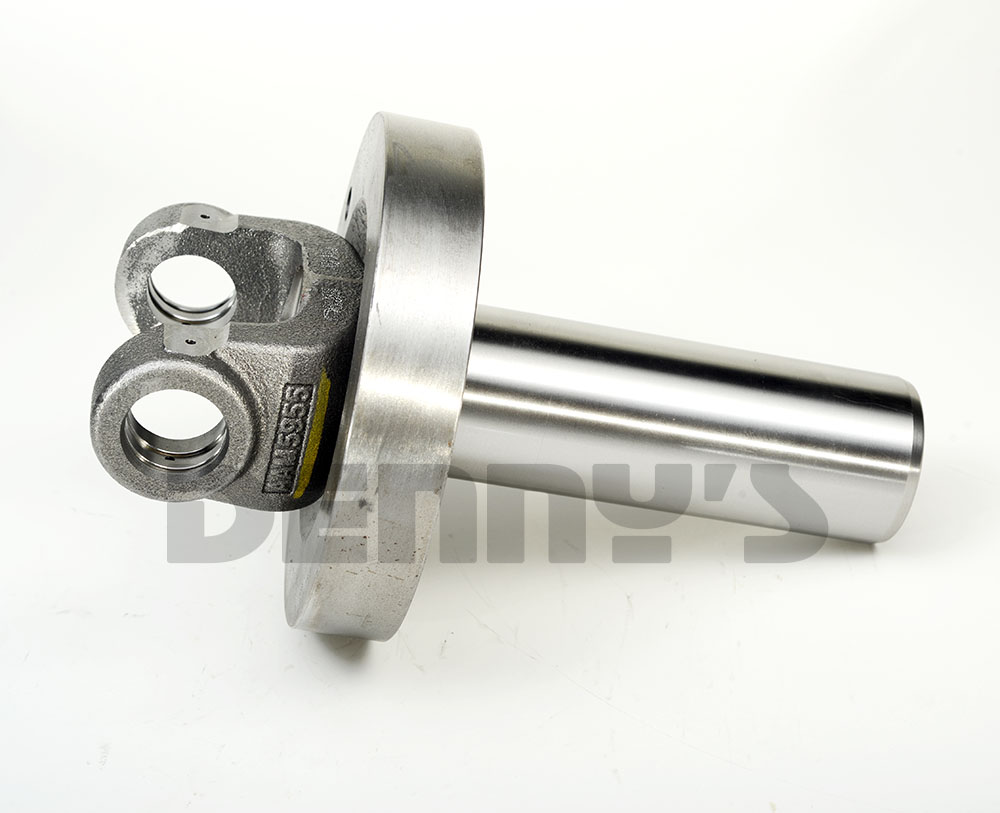

| 40038533 | Chrysler | MORE INFO |  |
Outside Snap Ring 1415 Series |
32 Based on 34 (1.75 in.) | 9.55 in. | 2.30 in. | 70 Hz Damper, Plated |
| 40038536 | Chrysler | MORE INFO |
Outside Snap Ring 1415 Series |
32 Based on 34 (1.75 in.) | 9.53 in. | 2.30 in. | Without Damper, Nickel Plated | |

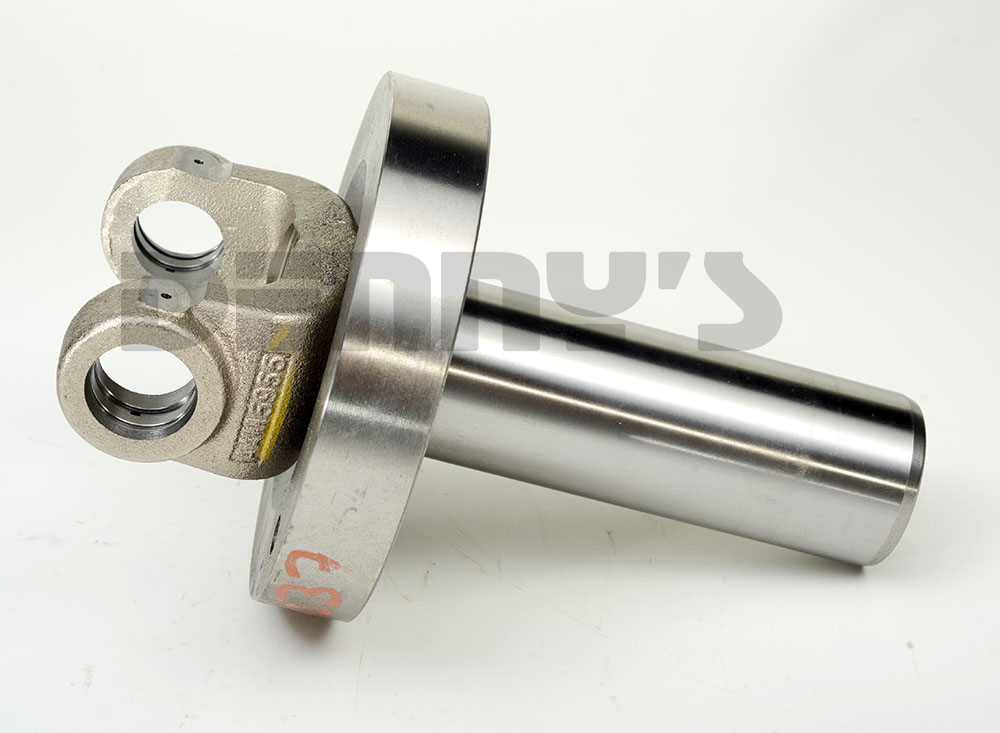

| 40038537 | Chrysler | MORE INFO |  |
Outside Snap Ring 1415 Series |
32 Based on 34 (1.75 in.) | 9.55 in. | 2.30 in. | 70 Hz Damper, Nickel Plated |

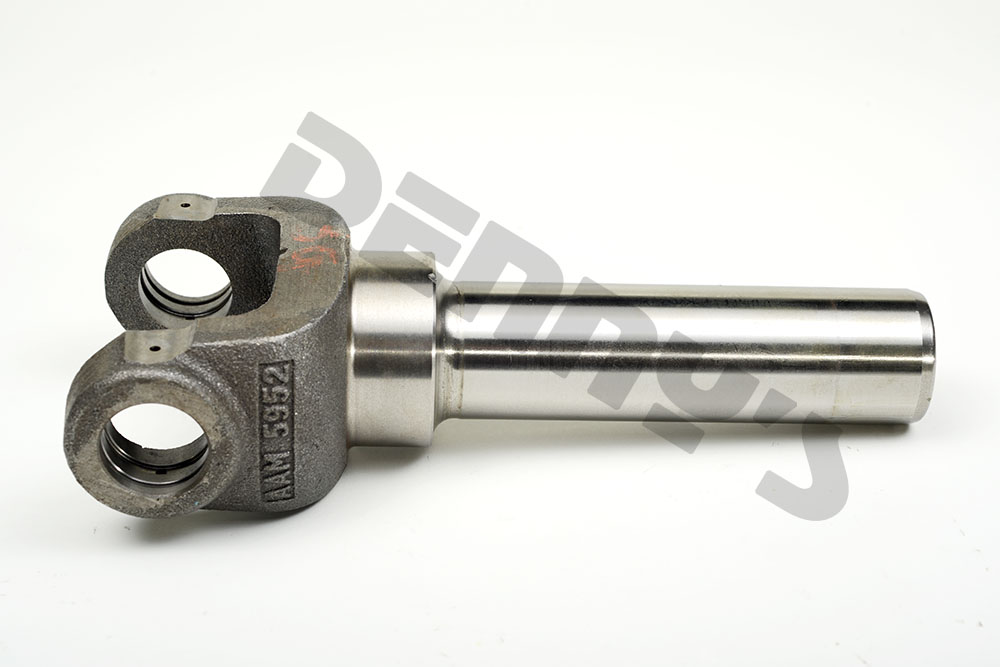

| 40038543 | Chrysler | MORE INFO |  |
Outside Snap Ring 1415 Series |
28 Based on 30 (1.28 in.) | 9.05 in | 1.68 in. | Without Damper |

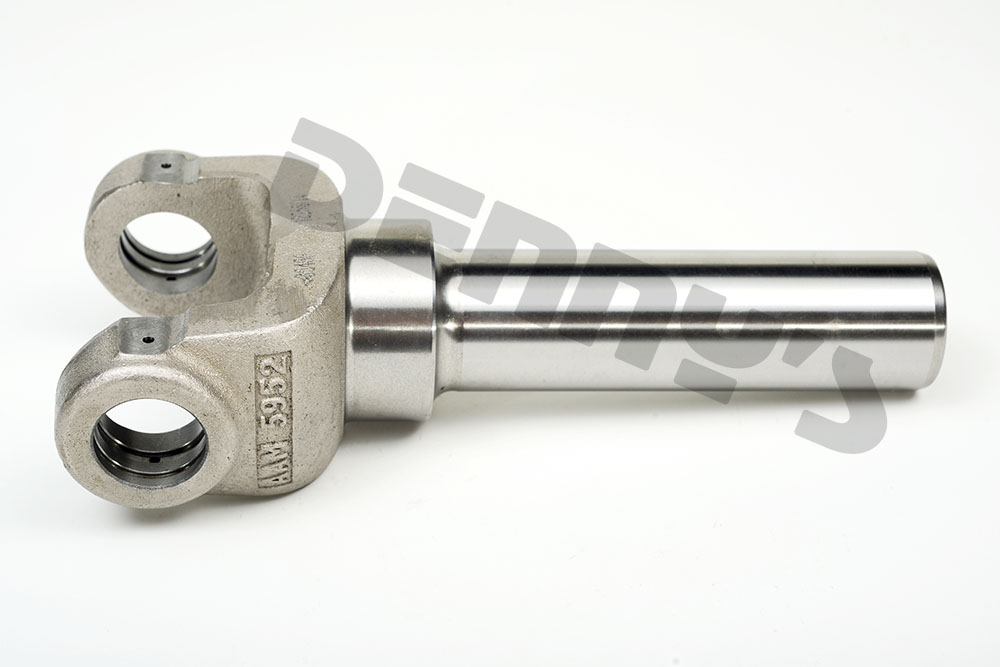

| 40038546 | Chrysler | MORE INFO |  |
Outside Snap Ring 1415 Series |
28 Based on 30 (1.28 in.) | 9.05 in. | 1.68 in. | Without Damper, Nickel Plated |

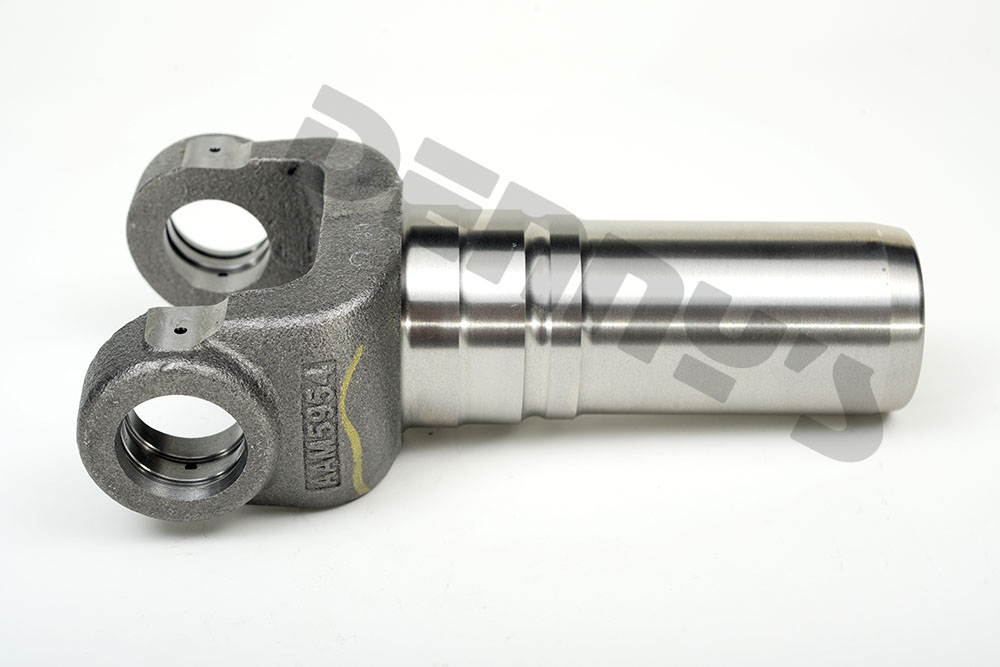

| 40038559 | Chrysler | MORE INFO |  |
Outside Snap Ring 1415 Series |
35 Based on 36 (1.55 in.) | 7.44 in. | 2.07 in. | Order 40021327 boot & clamp Kit if needed |

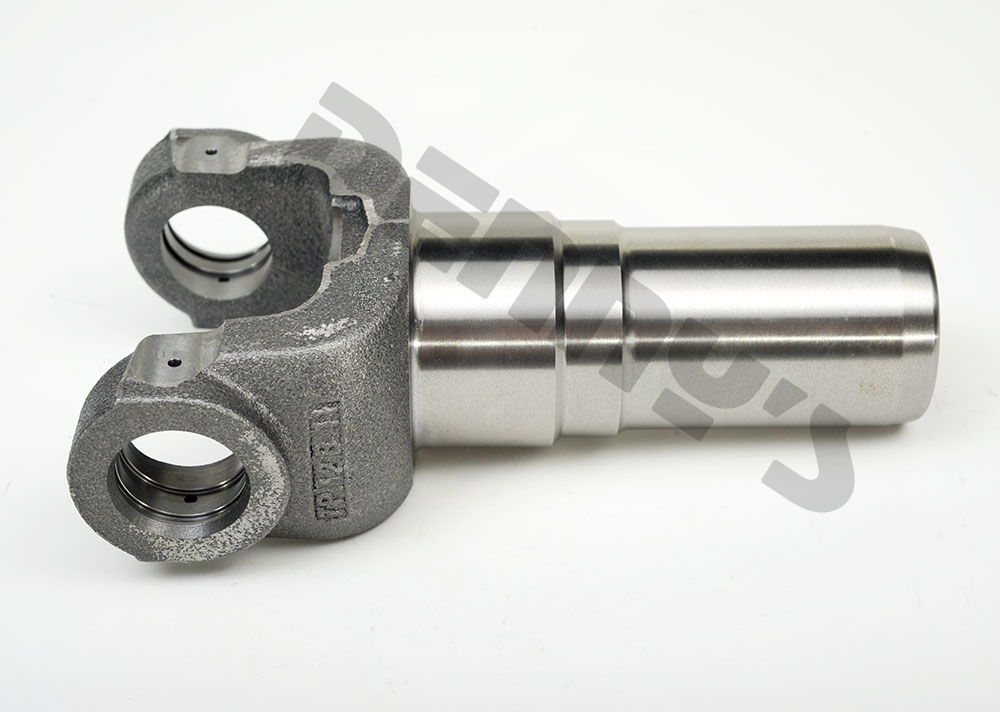

| 40060551 | Nissan | MORE INFO |  |
Outside Snap Ring 1415 Series |
34 Based on 36 (1.55 in.) | 7.17 in. | 2.04 in. | Order 40070221 boot & clamp Kit if needed |

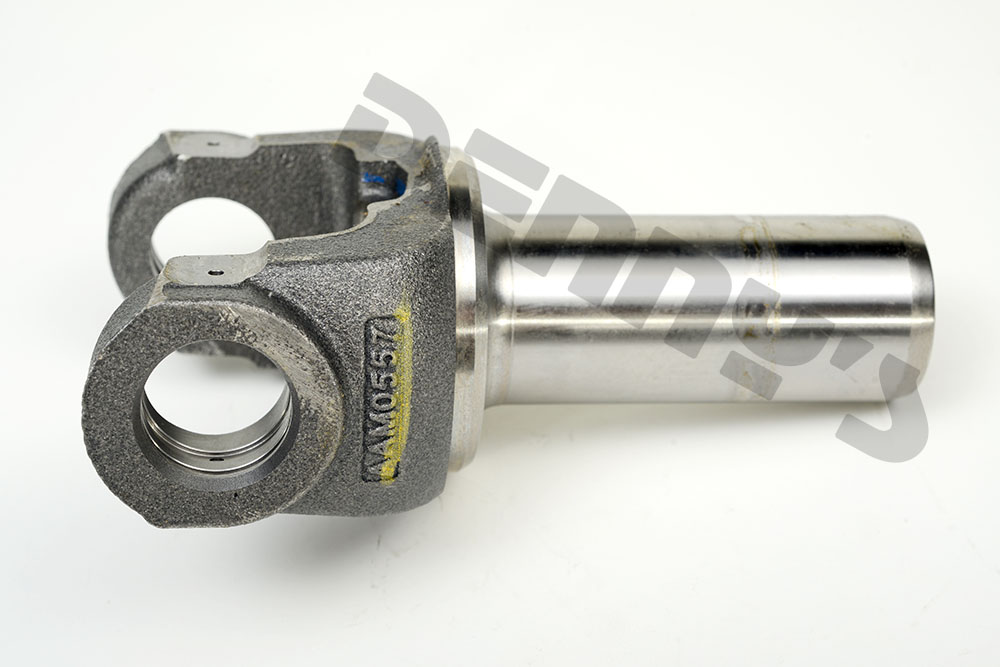

| 40060561 | Nissan | MORE INFO |  |
Outside Snap Ring 1415 Series |
30 Based on 32 (1.37 in.) | 6.35 in. | 1.73 in. | |
| 40102353 | GM | MORE INFO |
Outside Snap Ring 1415 Series |
31 Based on 32 (1.44 in.) | 7.64 in. | 1.97 in. | ||
| 40103475 | GM | MORE INFO |
Outside Snap Ring 1415 Series |
31 Based on 32 (1.44 in.) | 7.87 in. | 1.88 in. | ||
| 40106860 | GM |
Outside Snap Ring 1415 Series |
31 Based on 32 (1.37 in.) | 7.87 in. | 1.88 in. | |||
| 40110098 | GM |
Outside Snap Ring 1415 Series |
30 Based on 31 (1.61 in.) | 8.34 in. | 2.20 in. | |||

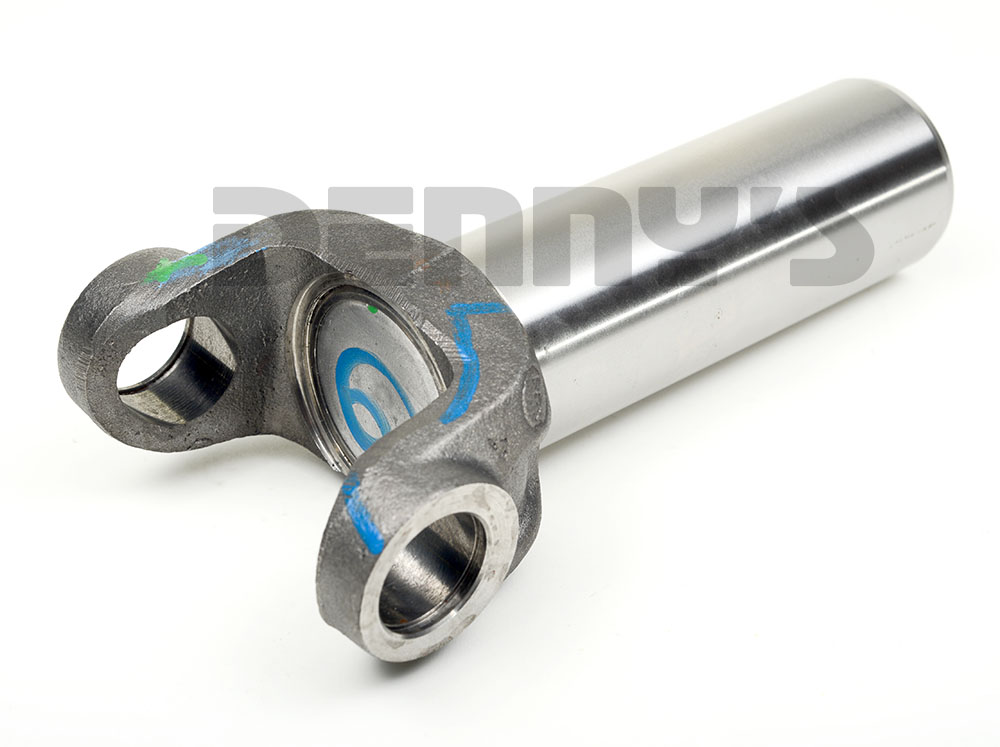

| 40110099 | GM | MORE INFO |  |
Outside Snap Ring 1415 Series |
35 Based on 36 (1.55 in.) | 8.34 in. | 2.20 in. | |
| 40110100 | GM | MORE INFO |
Outside Snap Ring 1415 Series |
30 Based on 31 (1.61 in.) | 8.34 in. | 2.20 in. | Nickel Plated | |
| 40110104 | GM |
Outside Snap Ring 1415 Series |
35 Based on 36 (1.55 in.) | 8.34 in. | 2.20 in. | |||
| 1355 series | ||||||||

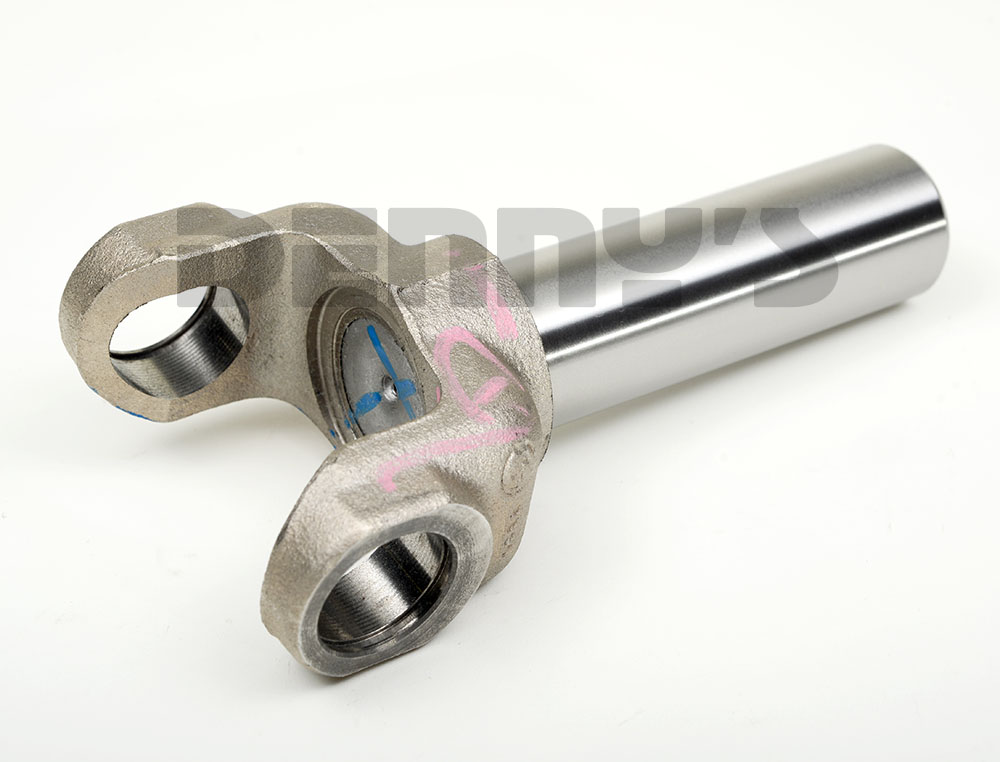

| 20877209 | GM | MORE INFO |  |
Outside Snap Ring 1355 Series |
27 (1.17 in.) | 6.93 in. | 1.50 in. | Nickel Plated |
| 26010700 | GM | MORE INFO |  |
Outside Snap Ring 1355 Series |
Spline and Slip driveshaft style 31 Based on 32 (1.37 in.) | 6.93 in. | 2.13 in. | Vent Hole, Threaded - Order 26047142 cap & 7827942 seal if needed |

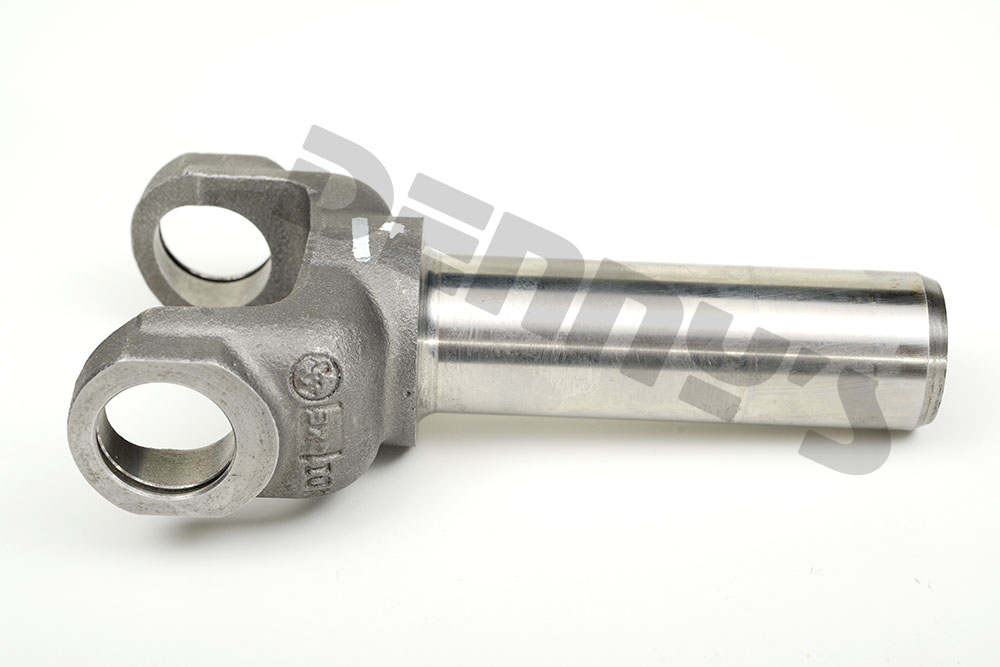

| 26013281 | GM | MORE INFO |  |
Outside Snap Ring 1355 Series |
26 Based on 27 (1.17 in.) | 6.93 in. | 1.50 in. | Has 12mm Spline Counterbore |

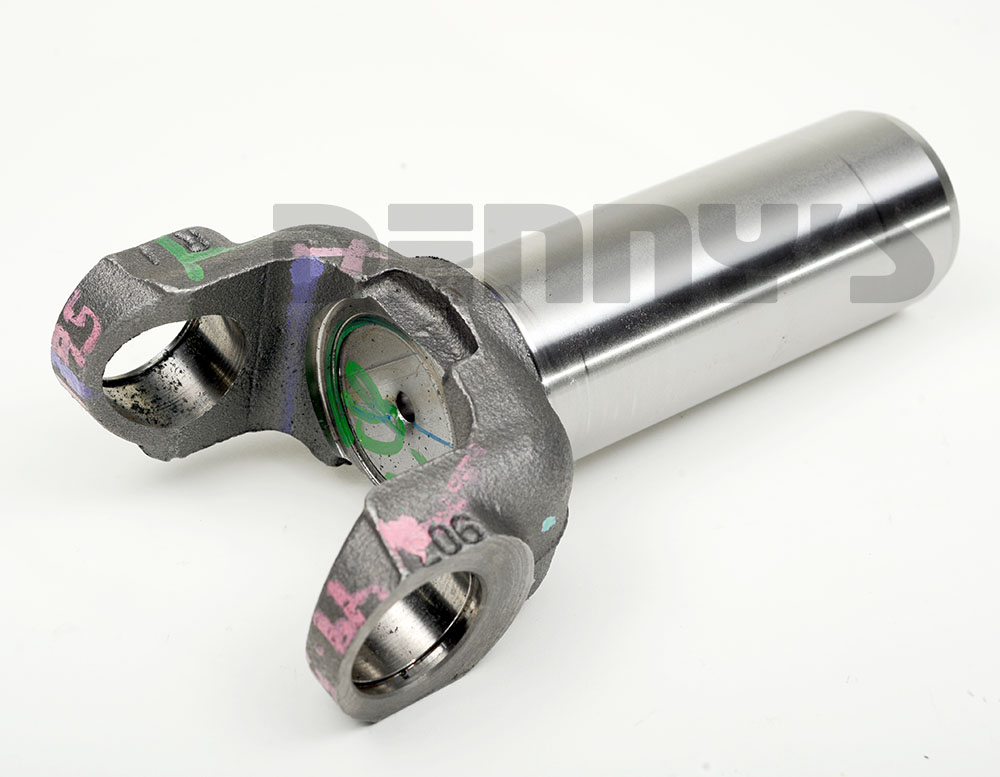

| 26045229 | GM | MORE INFO |  |
Outside Snap Ring 1355 Series |
30 or 31 Based on 32 (1.37 in.) | 6.93 in. | 1.88 in. | Vent Hole |
| 40021420 | GM | MORE INFO |
Outside Snap Ring 1355 Series |
30 Based on 32 (1.37 in.) | 7.87 in. | 1.88 in. | Nickel Plated | |
| 40038344 | Chrysler | MORE INFO |
Outside Snap Ring 1355 Series |
29 Based on 32 (1.37 in.) | 7.20 in. | 1.75 in. | Order 40021078 boot & clamp kit if needed | |

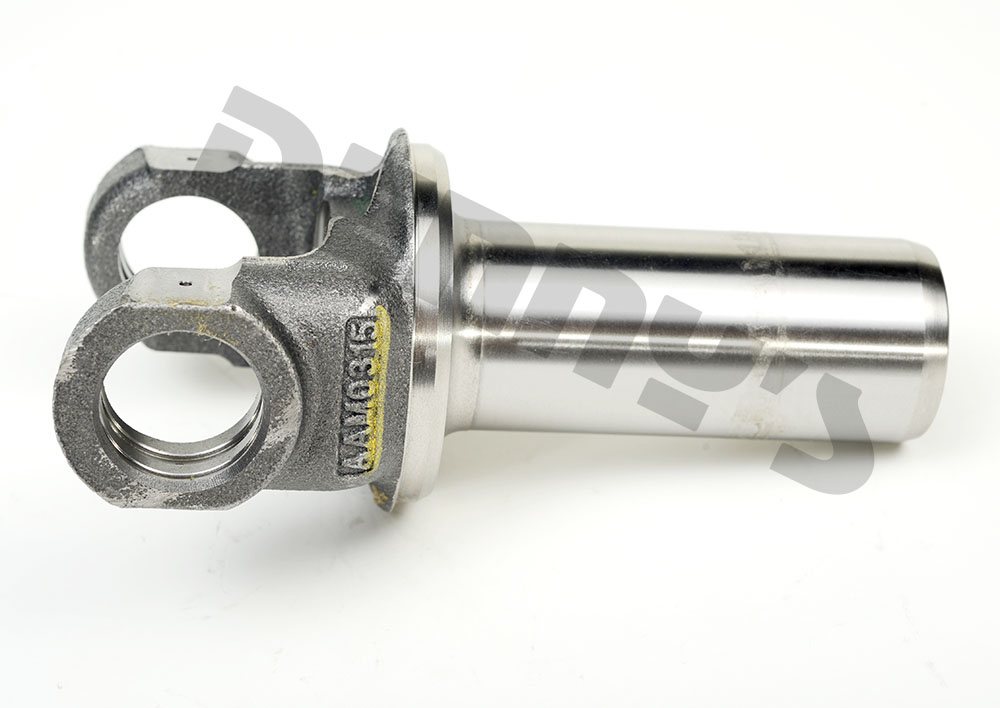

| 40060325 | Nissan | MORE INFO |  |
Outside Snap Ring 1355 Series |
30 Based on 32 (1.37 in.) | 6.10 in. | 1.73 in. | Has 10mm Spline Counterbore |

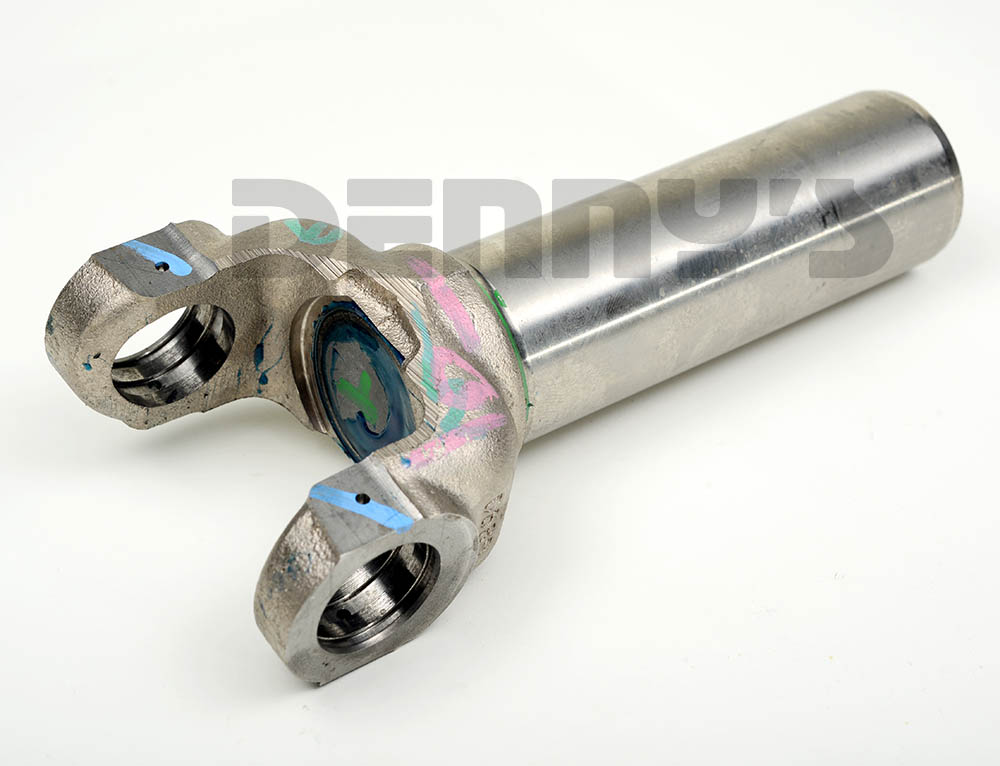

| 40070696 | GM | MORE INFO |  |
Outside Snap Ring 1355 Series |
30 Based on 32 (1.37 in.) | 7.87 in. | 1.88 in. | |

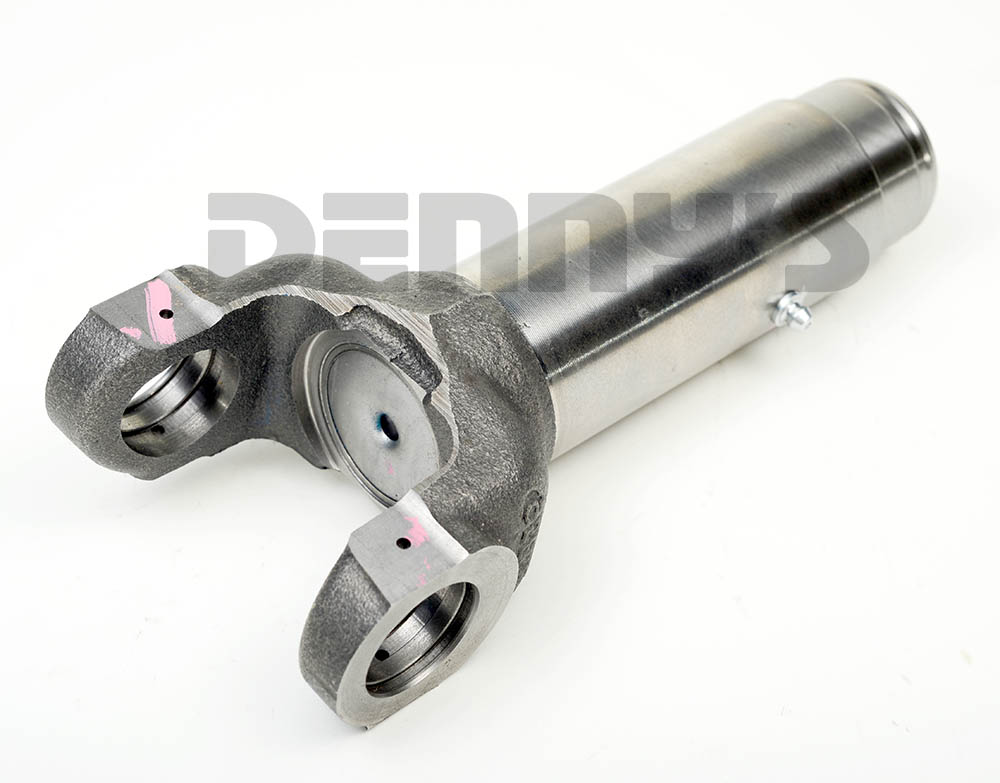

| 40070776 | GM | MORE INFO |  |
Outside Snap Ring 1355 Series |
31 Based on 32 (1.37 in.) | 7.87 in. | 1.97 in. | Vent Hole, Order 26063059 Spline seal if needed |
| 40106885 | GM |
Outside Snap Ring 1355 Series |
30 Based on 32 (1.37 in.) | 7.87 in. | 1.88 in. | |||
| 40149857 | GM | MORE INFO |
Outside Snap Ring 1355 Series |
30 Based on 32 (1.44 in.) | 7.87 in. | 1.88 in. | with Damper | |
| 3R series | ||||||||
| 7812557 | GM | MORE INFO | .jpg) |
Inside C-Clip 3R Series 1344 |
26 Based on 27 (1.17 in.) | 5.46 in. | 1.50 in. | |

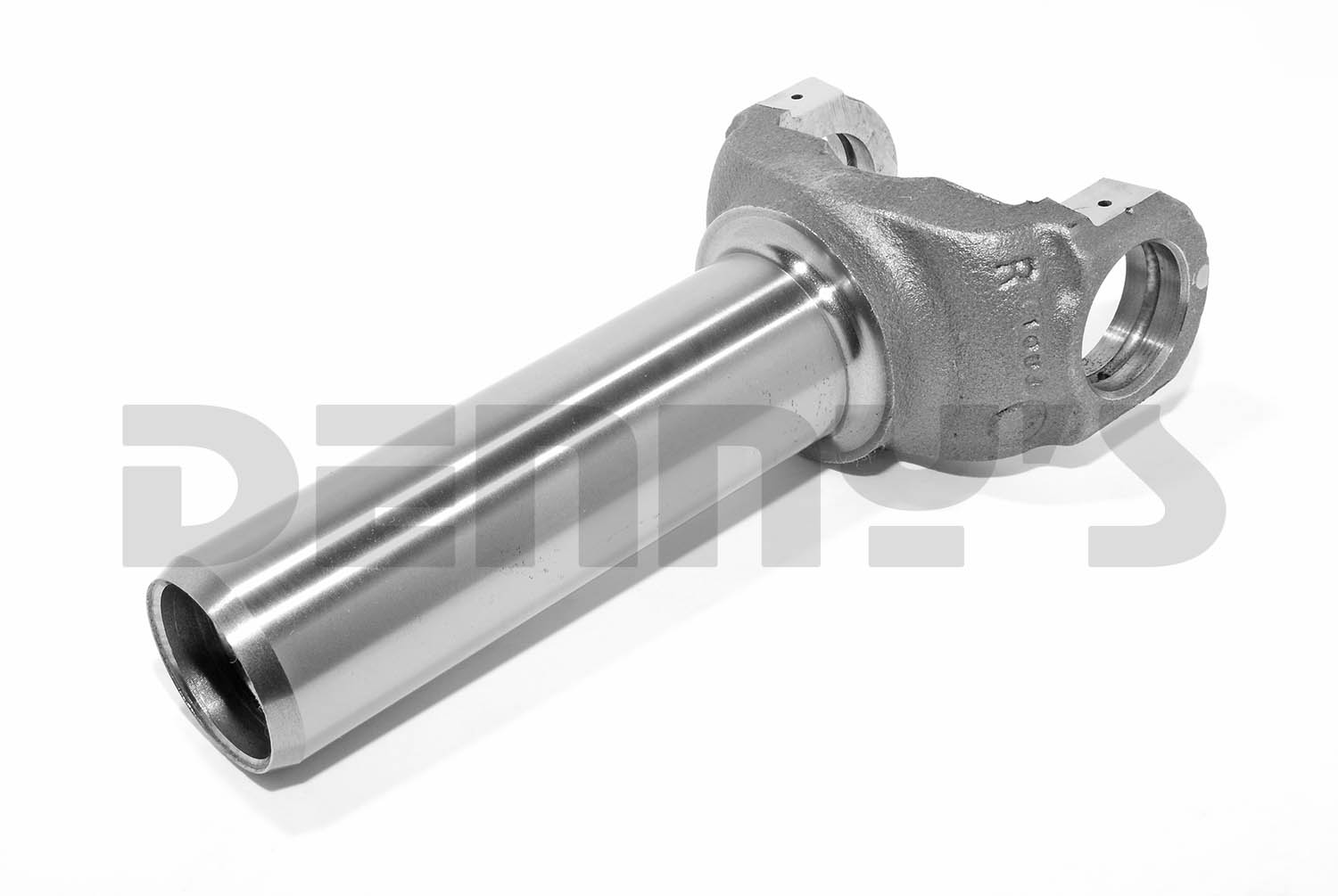

| 7848635 | GM | MORE INFO |  |
Inside C-Clip 3R Series 1344 |
26 Based on 27 (1.17 in.) | 6.76 in. | 1.50 in. | Vent Hole - Has 12mm Spline Counterbore |

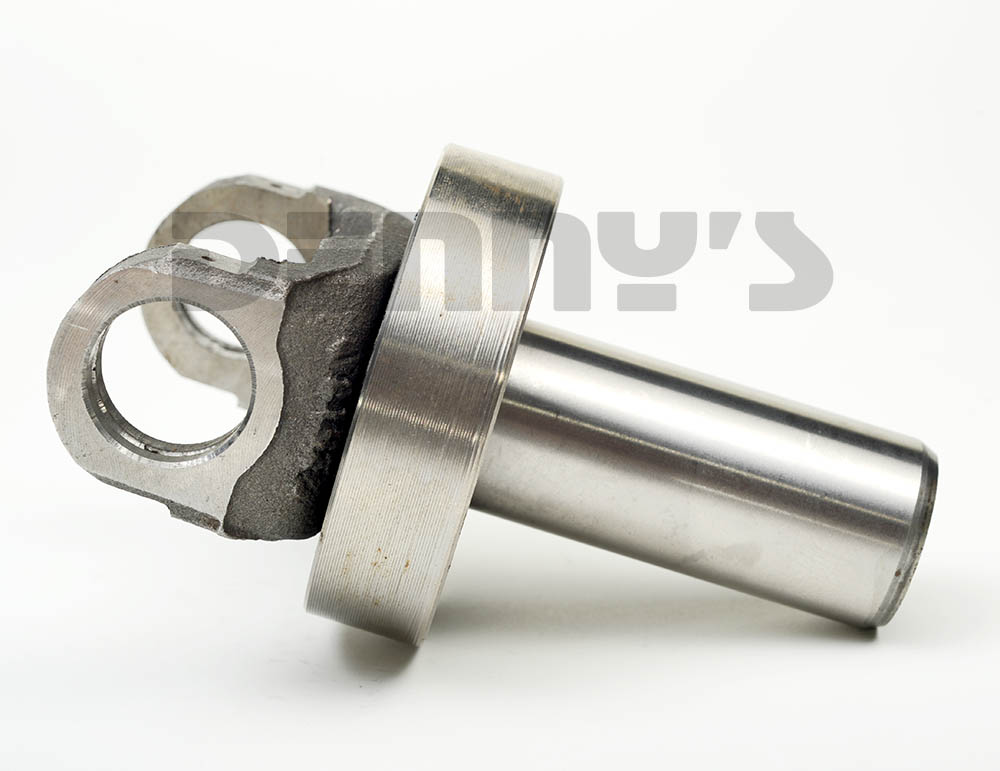

| 26039762 | GM | MORE INFO |  |
Inside C-Clip 3R Series 1344 |
26 Based on 27 (1.17 in.) | 5.46 in. | 1.50 in. | 360-460 Hz Damper |

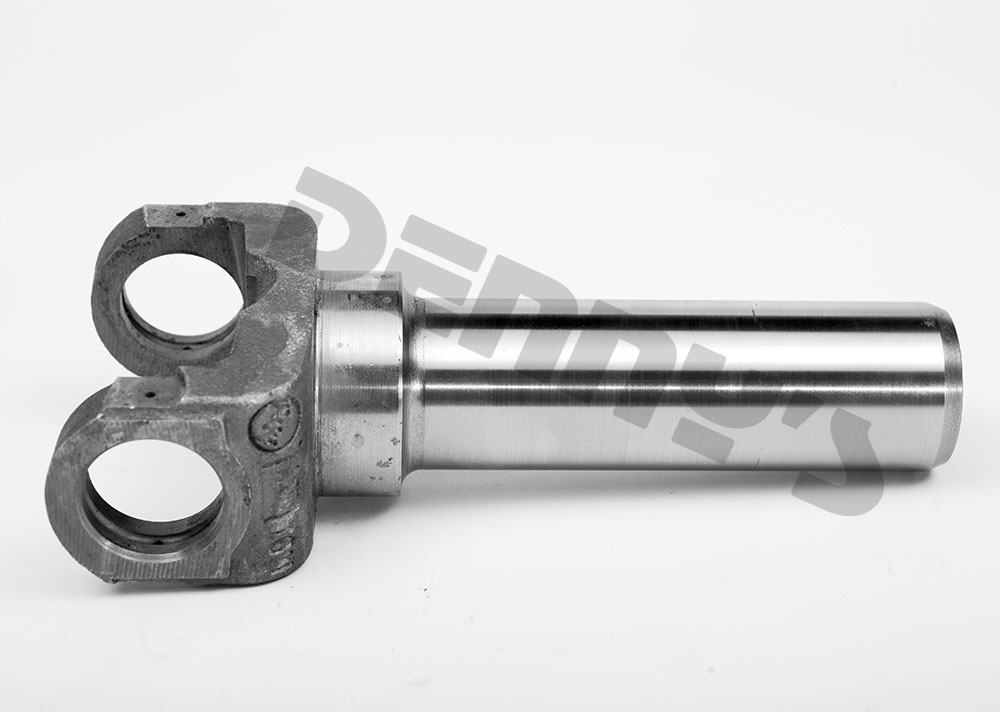

| 26042556 | GM | MORE INFO |  |
Inside C-Clip 3R Series 1344 |
26 Based on 27 (1.17 in.) | 6.76 in. | 1.50 in. | Without Damper, Vent Hole - Has 12mm Spline Counterbore |
| 26047426 | GM | MORE INFO |  |
Inside C-Clip 3R Series 1344 |
26 Based on 27 (1.17 in.) | 5.46 in. | 1.50 in. | 383-518 Hz Damper |
| 26051650 | GM | MORE INFO |  |
Inside C-Clip 3R Series 1344 |
26 Based on 27 (1.17 in.) | 6.12 in. | 1.50 in. | Without Damper |
| 26051658 | GM | MORE INFO |  |
Inside C-Clip 3R Series 1344 |
26 Based on 27 (1.17 in.) | 6.76 in. | 1.50 in. | |
| 26056863 | GM | MORE INFO |
Inside C-Clip 3R Series 1344 |
31 Based on 32 (1.37 in.) | 7.20 in. | 1.88 in. | ||
| 40012623 | GM | MORE INFO |  |
Inside C-Clip 3R Series 1344 |
26 Based on 27 (1.17 in.) | 6.76 in. | 1.50 in. | 370-470 Hz Damper, Vent Hole, Has 11mm Spline Counterbore |
| 40026155 | GM | MORE INFO | .jpg) |
Inside C-Clip 3R Series 1344 |
30 or 31 Based on 32 (1.37 in.) | 7.87 in. | 1.88 in. | 370-470 Hz Damper, Nickel Plated |
| 40032054 | GM | MORE INFO |  |
Inside C-Clip 3R Series 1344 |
30 or 31 Based on 32 (1.37 in.) | 7.87 in. | 1.88 in. | Nickel Plated |
| 40038575 | GM | MORE INFO |
Inside C-Clip 3R Series 1344 |
Spline and Slip driveshaft style 28 Based on 32 (1.37 in.) | 7.20 in. | 1.75 in. | Order 40021078 boot & clamp Kit if needed | |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
