SLIP YOKES for 4x4 TRUCK TRANSFER CASE

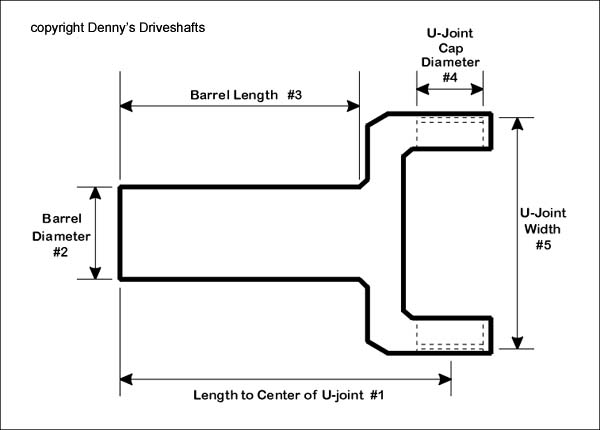

 OUTSIDE SNAP RING STYLE Slip Yoke Dimensions Explained
- 1310 Series - 3-7/32 wide between snap rings. 1-1/16 bore for u-joint caps
- 1330 Series - 3-5/8 wide between snap rings. 1-1/16 bore for u-joint caps
- 1350 Series - 3-5/8 wide between snap rings. 1-3/16 bore for u-joint caps
- 1410 Series - 4-3/16 wide between snap rings. 1-3/16 bore for u-joint caps
- 1480/SPL55 Series - 4-3/16 wide between snap rings. 1-3/8 bore for u-joint caps

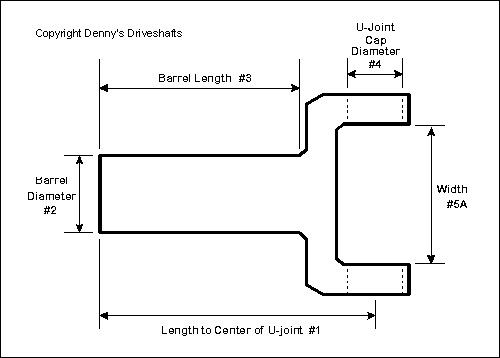

 INSIDE SNAP RING STYLE Slip Yoke Dimensions Explained
- GM 3 R Series = 2-9/16 wide between the inner surfaces of the yoke where the "C" Clips lock the u-joint in place. 1-1/8 bore for u-joint caps. Original GM universal joint was held in place with INJECTED PLASTIC.
#5A = 2-9/16 inches
#4 = 1-1/8 inches

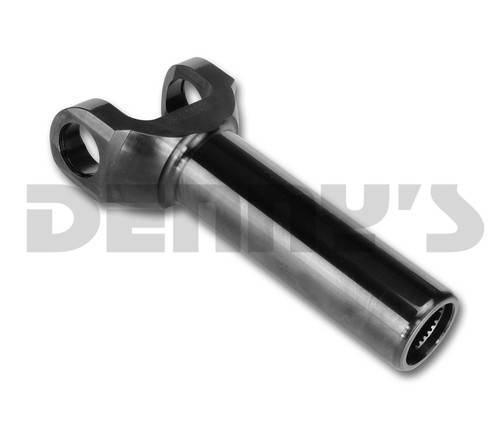

SLIP YOKES - For 4X4 Transfer Case
NP231 with 27 SPLINE rear output 1.5 inch barrel OD
NP231D Dodge with 27 SPLINE rear output 1.558 inch barrel OD
NP205, 208, 241, 243, 246, 261, 263 with 32 SPLINE rear output 1.886 barrel OD
1310 SERIES - OUTSIDE SNAP RINGS
1330 SERIES - OUTSIDE SNAP RINGS
1350 SERIES - OUTSIDE SNAP RINGS
1410 SERIES - OUTSIDE SNAP RINGS
3R SERIES - INSIDE "C" CLIPS
NP246 AUTOTRAC with 32 SPLINE FEMALE FRONT OUTPUT
NP261XHD NP263XHD with 31 SPLINE rear output 2.200 barrel OD
1410 SERIES - OUTSIDE SNAP RINGS
1480 SERIES - OUTSIDE SNAP RINGS
1485 SERIES - OUTSIDE SNAP RINGS
DODGE NP271DHD NP273 with 34 SPLINE rear output 2.300 barrel OD
FORD NP208F with 31 SPLINE Rear Output 1.886 barrel OD
FORD NP271 NP273 with 34 SPLINE rear output 2.300 barrel OD
|
|
|
