Jeep > FRONT AXLES and RELATED PARTS > DANA 30 - DISCONNECT FRONT

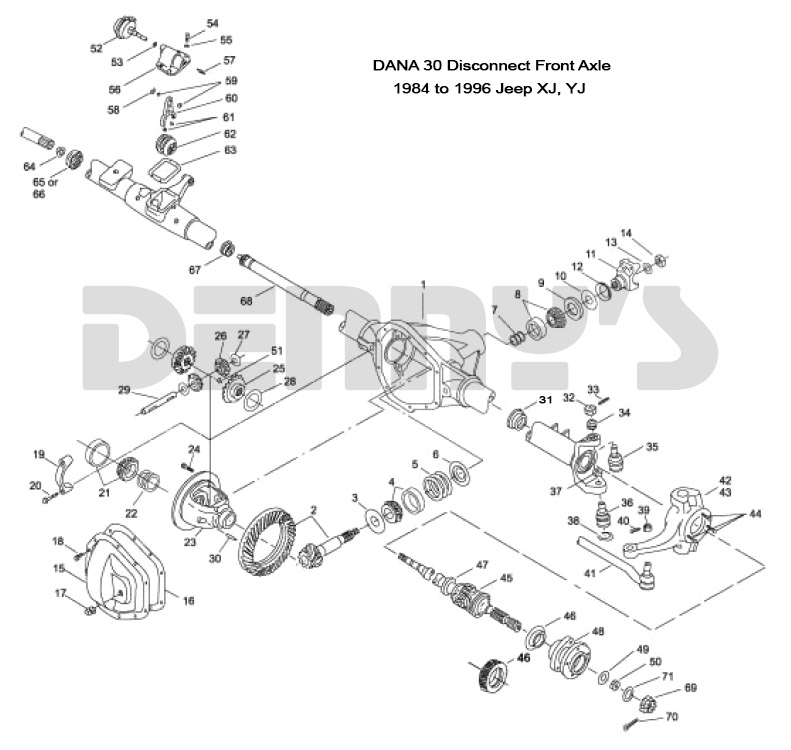

Denny's Driveshafts exploded view of Dana 30 Disconnect front axle for Jeep XJ, YJ, TJ



Diagram # Part # Description Diagram # Part # Description
 1  *****  Housing - For reference only  39  *****  Nut
 2  Multiple

 Gear Set - See Ring and Pinion Gear

 40  *****  Cotter pin
 3  30764  Slinger  41  *****  Tie Rod
 4  706015X  Inner Pinion Bearing Cup and Cone  42    Right Knuckle
 5  *****  Inner Pinion Brg Shims - See Shim kits  43    Left Knuckle
 5  706936X  Pinion Bearing Shim Kit  44  41027  Spindle Bolts
 5  706938X  Diff and Pinion Brg Shim Kit  45  Multiple See Axle section
 6  32349  Baffle for Pinion Bearing  46  46988  Slinger Outer Axle
       46  44646  ABS Tone Ring
 7  *****  Outer Pinion Brg Shims - See Shim kits  47  701113X  Slinger Inner Axle
 8  706030X  Outer Pinion Bearing Cup and Cone  48    Hub assembly
 9  13575  Slinger for Outer Pinion Bearing  49  40596  Flat Washer
 10  44895  Pinion Seal  50  40597  Hex Nut
 11  Multiple  Pinion Yoke - End Yoke  51  42570  Snap Ring
 12  *****  Slinger for Pinion Yoke  52 - 63  Multiple  Motor Assembly
 13  30186  Pinion Washer  53  620980  O Ring
 14  30185  Pinion Nut  54    Cap Screw
 15 - 18  Multiple  Diff Cover Kit includes 15, 16, 17, 18  55    Lockwasher
 15  707180X  Diff Cover  56  42208  Cover Disconnect Housing
 16  34684  Diff Cover Gasket  57  *****  Switch assembly
 17  43180  Plug for Diff Cover  58  621097  Snap ring
 18  34279  Bolts for Diff Cover Quantity 10  59  620979  Snap Ring
 19  *****  Diff Brg Cap - not sold separately  60  42585  Shift Fork
 20  48631-1  Bolt for Diff Brg Cap  61  621059  Clip for shift fork
 21  706016X  Diff Bearing Kit Cup and Cone  62  42998  Clutch Collar
 22  706937X  Diff Bearing Shim Kit  63  41494  Gasket
 23  *****  Diff Case - Not sold separately  64  43337  Bushing
       64  565985  Bearing
 24  41221  Ring Gear Bolts Qty 10  65  42500  Oil Seal - 87 to 96
       65  48488  Oil Seal - 84 to 86
 25  *****  Diff Large Side Gear - See Spider Gear Section  66    Guide
 26  32926  Diff Small Spider Gear  67  43342  Bushing
       67 621000  Bearing
 27  34096  Thrust washer for Diff Small Spider Gear  68  43361-1  Shaft - Output Discontinued
 28  40027  Thrust washer for Diff Large Spider Gear  69  40598  Retainer Nut
 29  41648  Diff Cross Shaft  70  *****  Cotter Pin
 30  13449  Diff Cross Shaft Lock  71  *****  Spring wave washer
 31  46470  Tube Seal Left Side
 32 - 38  706944X  Ball Joint Set




DANA 30 - DISCONNECT FRONT

AXLES - OUTER

Dana Spicer 10007747 CHROMOLY Outer Axle Stub Shaft replaces 43205 CLICK HERE for More Details Part Number: 10007747
$167.55
$140.32
IN STOCK
FREE SHIPPING

AXLE - DUST SHIELD / ABS TONE RING

Dana Spicer 701113X Plastic dust shield CLICK HERE for More Details Part Number: 701113X
$37.77
IN STOCK

AXLE - OUTER NUT and WASHER

AXLE - INNER

Dana Spicer 10007743 CHROMOLY Inner Axle Shaft Jeep replaces 73898-1X CLICK HERE for More Details Part Number: 10007743
$220.99
$185.08
IN STOCK
FREE SHIPPING

AXLES - COMPLETE ASSEMBLY

NO ABS

WITH ABS

AXLE U-JOINTS

AXLE - TUBE SEALS

BALL JOINTS

DISCONNECT PARTS

DISCONNECT ACTUATOR

DISCONNECT CLUTCH COLLAR

BUSHING

NEEDLE BEARING

SHIFT FORK

DIFF PARTS

COVER GASKET

COVER BOLTS

DIFF BEARINGS

PINION BEARINGS

SHIMS

E-CLIP

LOCKPIN / ROLL PIN

SPIDER GEARS

RING GEAR BOLTS

PINION SEAL

PINION YOKE

PINION NUT and WASHER

Dana 30 Pinion WASHER CLICK HERE for More Details Part Number: 30186
$0.40
IN STOCK
DANA SPICER 30185 Dana 30 Pinion NUT CLICK HERE for More Details Part Number: 30185
$0.95
IN STOCK
