1350 Series - 4.25 x 2.68 inch pilot

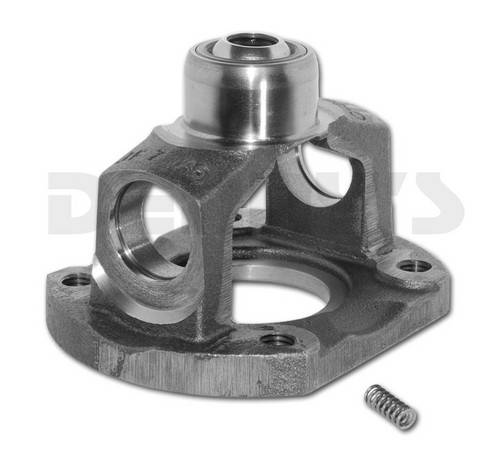

Neapco N3-83-025X Double Cardan CV Flange Yoke fits 99 - 04 Ford F250, F350 with 2.687 inch pilot diameter on REAR transfer case flange

Part Number:
N3-83-025X

UPC:

083869015804

Your Cost $104.95

STATUS: IN STOCK

N3-83-025X

Double Cardan CV Flange Yoke

Fits Ford F250, F350 transfer case rear output flange with 2.687 inch pilot diameter
- 1999, 2000, 2001, 2002, 2003, 2004
- NOTE: Some had the 2 inch pilot diameter ...please check this before ordering
1350 Series
NON Greaseable style
4 Mounting holes are threaded to accept OEM Ford bolts
Use with 1350 Series U-Joints listed below.
Needle Bearing Ball Socket fits 1/2 inch stud yoke
Comes with New Spring included

DIMENSIONS

Bolt Circle.... 4.25 inches measured diagonally
Pilot Diameter... 2.68 inches
Fits universal joint 3.625 inches cap to cap (3 5/8 inches)
Fits u-joint bearing cap diameter 1.187 inches (1 3/16 inches)

Neapco N3-83-025X Double Cardan CV Flange Yoke fits 99 - 04 Ford F250, F350 with 2.687 inch pilot diameter on REAR transfer case flange

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $104.95

N3-83-025X

Double Cardan CV Flange Yoke

Fits Ford F250, F350 transfer case rear output flange with 2.687 inch pilot diameter
- 1999, 2000, 2001, 2002, 2003, 2004
- NOTE: Some had the 2 inch pilot diameter ...please check this before ordering
1350 Series
NON Greaseable style
4 Mounting holes are threaded to accept OEM Ford bolts
Use with 1350 Series U-Joints listed below.
Needle Bearing Ball Socket fits 1/2 inch stud yoke
Comes with New Spring included

DIMENSIONS

Bolt Circle.... 4.25 inches measured diagonally
Pilot Diameter... 2.68 inches
Fits universal joint 3.625 inches cap to cap (3 5/8 inches)
Fits u-joint bearing cap diameter 1.187 inches (1 3/16 inches)

It is recommended that you install a new rubber boot every time you service the Double Cardan CV joint.
- Please see the bottom of this page for new rubber boot

Neapco N3-83-025X Double Cardan CV Flange Yoke fits 99 - 04 Ford F250, F350 with 2.687 inch pilot diameter on REAR transfer case flange

You May Also Need These Parts to Complete the Job

42-1855 BOLT Set M12-1.75 for Ford Transmission/Transfer Case Flange - 12mm 12 point bolt set Part#: 42-1855 $11.95	Neapco 2-0053G universal joint 1350 Series non greaseable 3.622 x 1.188 Part#: 2-0053G $27.95
Dana Spicer 5-178X Greaseable u-joint 1350 Series Part#: 5-178X $20.95	Dana Spicer 5-1350X Universal Joint NON Greaseable 1350 series cold forged solid body heat treated precision ground and case hardened with multi lip seals Part#: 5-1350X $23.54

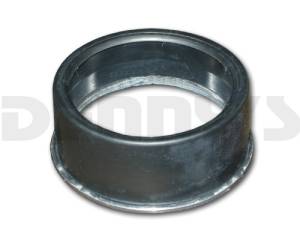

DANA SPICER 2-86-418 Rubber Boot for Ford OEM Non Greaseable CV Centering Yoke Part#: 2-86-418 $7.25
