AAM 40048044 Open Diff Carrier loaded case fits 1999 to 2018 GM 8.6 inch 10 bolt rear 1/2 ton pickups, Tahoe, Yukon, Avalanche, Escalade with 30 spline rear axles

Part Number:
40048044

UPC:

840382500169

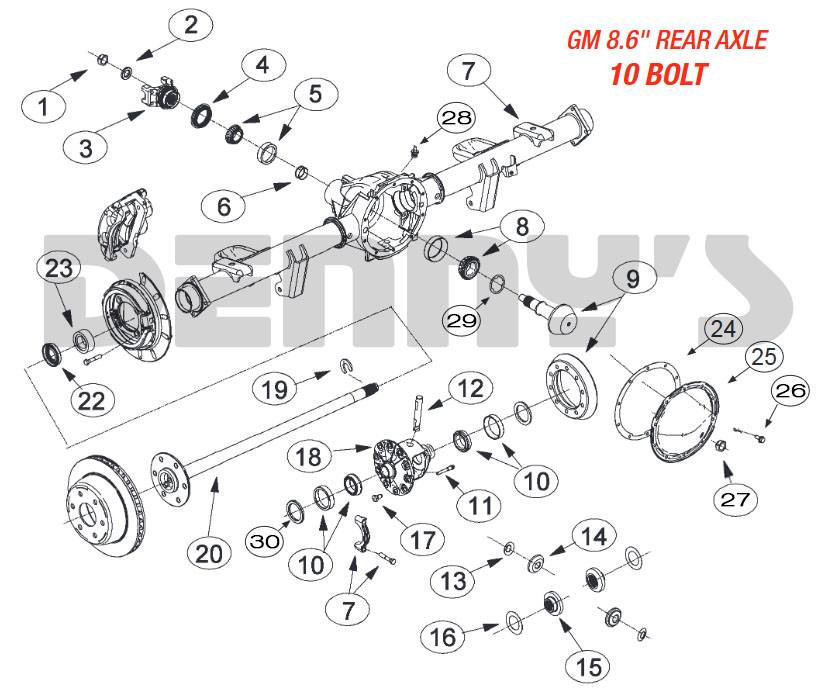

Diagram Number:
18

Your Cost $245.94

STATUS: IN STOCK - FREE SHIPPING

AAM 40048044

OPEN Diff Carrier complete with internal spider gears, cross pin and lock bolt
Application
- Chevy and GMC 8.6 inch 10 bolt rear with 30 spline axles GM 1/2 Ton Trucks, Tahoe, Yukon, Avalanche, Escalade
  - 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
- Chevy and GMC 8.5 inch 10 bolt rear with 30 spline axles
  - 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
  - Has 1.78 bearing hub diameter. Use LM102949 and LM102911 for 1971 to 1998 applications with 30 spline axles.
Ratio
- Fits ratios 2.73 and up
Splines
- Fits 1.29 - 30 spline axles
Misc Info
- Casting 8064
OEM Numbers and Replacement Numbers
- 19244836, 26060748 (casting 26060749), 40007876 (has 7875 or 1073 stamped into top), 25824246
Comments
- Fits 1971 to 1998 GM 8.5 inch and 1999 to 2011 GM 8.6 inch 10 Bolt rear ends.
- Has 1.78 bearing hub diameter. Use LM102949 and LM102911 for 1971 to 1998 applications with 30 spline axles.

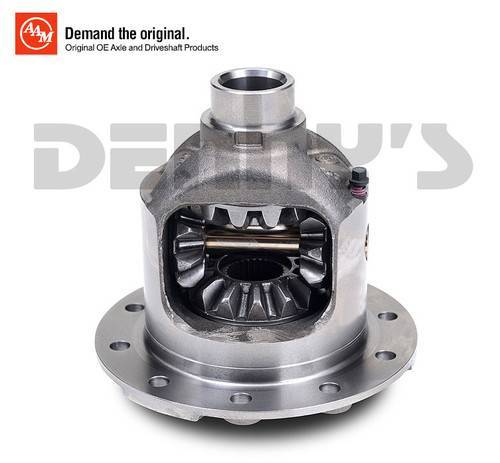

AAM 40048044 Open Diff Carrier loaded case fits 1971 to 1998 GM 8.5 inch 10 bolt and 1999 to 2018 GM 8.6 inch 10 bolt rear 1/2 ton pickups, Tahoe, Yukon, Avalanche, Escalade with 30 spline rear axles

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $245.94

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

AAM 40048044

OPEN Diff Carrier complete with internal spider gears, cross pin and lock bolt
Application
- Chevy and GMC 8.6 inch 10 bolt rear with 30 spline axles GM 1/2 Ton Trucks, Tahoe, Yukon, Avalanche, Escalade
  - 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
- Chevy and GMC 8.5 inch 10 bolt rear with 30 spline axles
  - 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
  - Has 1.78 bearing hub diameter. Use LM102949 and LM102911 for 1971 to 1998 applications with 30 spline axles.
Ratio
- Fits ratios 2.73 and up
Splines
- Fits 1.29 - 30 spline axles
Misc Info
- Casting 8064
OEM Numbers and Replacement Numbers
- 19244836, 26060748 (casting 26060749), 40007876 (has 7875 or 1073 stamped into top), 25824246
NOTES:
- Fits 1971 to 1998 GM 8.5 inch and 1999 to 2011 GM 8.6 inch 10 Bolt rear ends.
- Has 1.78 bearing hub diameter. Use LM102949 and LM102911 for 1971 to 1998 applications with 30 spline axles.

AAM 40048044 Open Diff Carrier loaded case fits 1971 to 1998 GM 8.5 inch 10 bolt and 1999 to 2018 GM 8.6 inch 10 bolt rear 1/2 ton pickups, Tahoe, Yukon, Avalanche, Escalade with 30 spline rear axles
