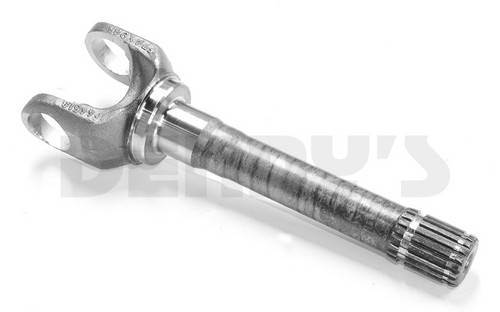

DANA SPICER 39905 OUTER AXLE 9.92 inches 19 splines fits 1980 to 1996-1/2 FORD F150 and BRONCO with Dana 44 IFS front axle
Part Number:
39905


UPC:
023913134501

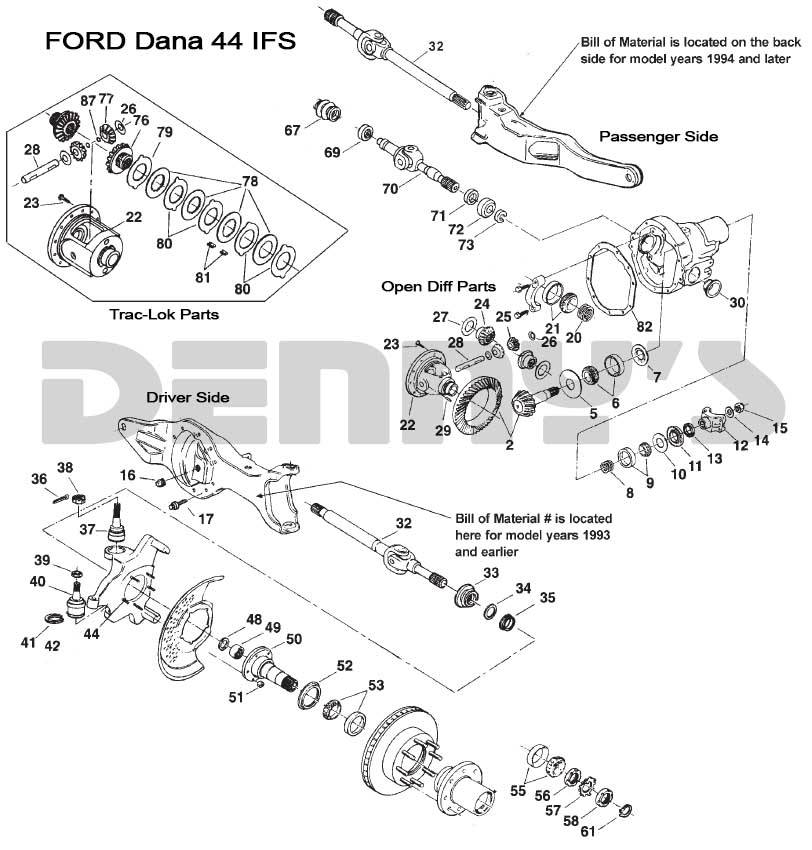

Diagram Number:
32-Outer
Your Cost $119.75
STATUS:  IN STOCK

DANA  SPICER 39905

OUTER AXLE SHAFT for DANA 44 IFS

  • Fits FORD BRONCO with DANA 44 IFS FRONT
    • 1980, 1981, 1982, 1983, 1984, 1985, 1986
    • 1992-1/2, 1993, 1994, 1995, 1996, 1996-1/2
  • Fits FORD F-150 with DANA 44 IFS FRONT
    • 1981-1/2, 1982, 1983, 1984, 1985, 1986
  • 19 SPLINES
  • FITS 5-760X UNIVERSAL JOINT
  • 9.92 INCHES Centerline of u-joint to end of yoke
Spicer
DANA SPICER 39905 OUTER AXLE 9.92 inches 19 splines fits 1980 to 1996-1/2 FORD F150 and BRONCO with Dana 44 IFS front axle
DANA SPICER 39905 OUTER AXLE 9.92 inches 19 splines fits 1980 to 1996-1/2 FORD F150 and BRONCO with Dana 44 IFS front axle
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $119.75

DANA  SPICER 39905

OUTER AXLE SHAFT for DANA 44 IFS

  • 19 splines
  • Fits FORD BRONCO with DANA 44 IFS FRONT
    • 1980,,1981, 1982, 1983, 1984, 1985, 1986
    • 1992-1/2, 1993, 1994, 1995, 1996, 1996-1/2
  • Fits FORD F-150 with DANA 44 IFS FRONT
    • 1981-1/2, 1982, 1983, 1984, 1985, 1986


FITS 5-760X UNIVERSAL JOINT

  • B1 = 1.250 inch diameter with 19 splines
  • B = 9.92 inches Centerline of u-joint to end of yoke
  • U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
  • U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )

IMPORTANT:  Please be sure that your original axle length matches B = 9.92 inches before ordering

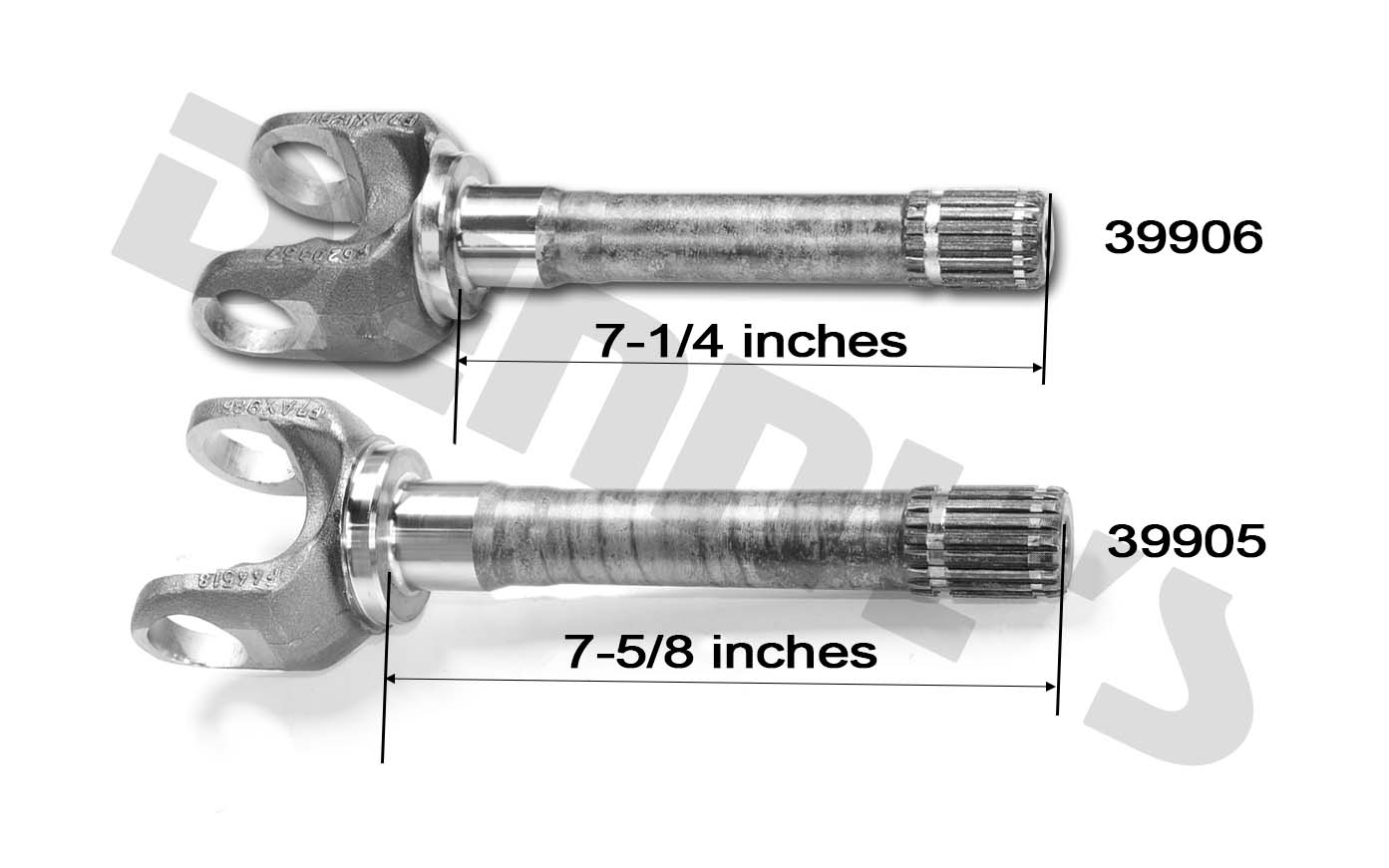

Another dimension to check is shown in the photo below.

 Denny's comparison of Dana Spicer 39905 and 39906

image/jpeg
DANA SPICER 39905 OUTER AXLE 9.92 inches 19 splines fits 1980 to 1996-1/2 FORD F150 and BRONCO with Dana 44 IFS front axle

DANA SPICER 39905 OUTER AXLE 9.92 inches 19 splines fits 1980 to 1996-1/2 FORD F150 and BRONCO with Dana 44 IFS front axle
