Driveshaft and Driveline Parts > PINION YOKES - Front and Rear End > Dana > Dana 36 > 1310 Series

DANA SPICER 2-4-8091X - Dana 36 Pinion Yoke 1310 series 26 spline fits CORVETTE

Part Number:
2-4-8091X

UPC:

023913235321

Your Cost $54.28

STATUS: IN STOCK

DANA SPICER 2-4-8091X

CORVETTE Dana 36 PINION YOKE
26 spline 1310 series ...U-Bolt style

Spicer

DANA SPICER 2-4-8091X - Dana 36 Pinion Yoke 1310 series 26 spline fits CORVETTE

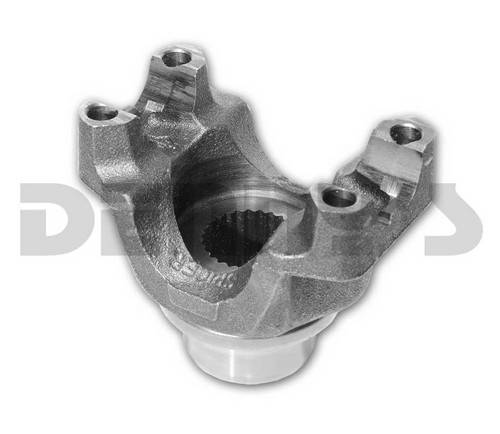

DANA SPICER 2-4-8091X Pinion Yoke for Dana 36 CHEVY CORVETTE

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $54.28

DANA SPICER 2-4-8091X

CORVETTE Dana 36 PINION YOKE

26 spline 1310 series ...U-Bolt Style

Fits CHEVY CORVETTE with DANA 36 rear End

U-Bolt Set Sold Separately
Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
26 splines
SPLINE OD = 1.146
D = 1.062
E = 3.219
Q = 1.500
R = 1.552
S = 3.000

image/jpeg

DANA SPICER 2-4-8091X - Dana 36 Pinion Yoke 1310 series 26 spline fits CORVETTE

DANA SPICER 2-4-8091X Pinion Yoke for Dana 36 CHEVY CORVETTE
