Ford Driveshafts and Driveline Parts > Mustang 1964-2004 Driveshafts and Driveline Parts > Pinion Yokes

N2-4-FD01XKT

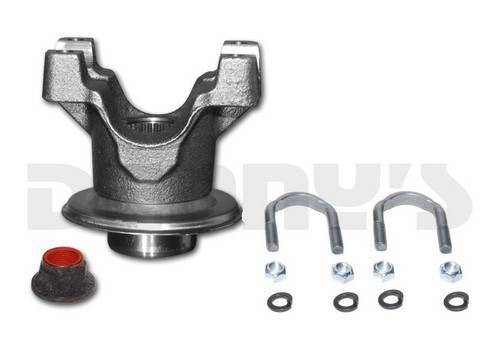

• Ford 9 inch Pinion Yoke Kit

  • Fits Mustang with Ford 9 inch rear end with 28 spline pinion gear
• 1310 series - 3.219 x 1.062 inch cap diameter
• 28 splines
• 4 inches tall
• U-Bolt style

INCLUDES

• N2-4-FD01X Pinion Yoke
• 2-94-28X U-Bolt Set
• 9028 Pinion Nut
• 7044NA Pinion Seal

Fits universal joint 3.219 cap to cap with 1.062 Bearing caps

DIMENSIONS

• SPLINE OD = 1.235
• D = 1.062
• E = 3.219
• Q = 2.42
• R = 1.81
• S = 4.03

Neapco N2-4-FD01X

• Ford 9 inch Pinion Yoke
  • Fits all Ford 9 inch rear ends with 28 spline pinion gear
• 1310 series
• 28 splines
• 4 inches tall
• U-Bolt style

Fits universal joint 3.219 cap to cap with 1.062 Bearing caps

DIMENSIONS

• SPLINE OD = 1.235
• D = 1.062
• E = 3.219
• Q = 2.42
• R = 1.81
• S = 4.03

Neapco N2-4-FD02X

• Ford 9 inch Pinion Yoke
  • Fits all Ford 9 inch rear ends with 28 spline pinion gear
• 1330 series
• 28 splines
• 4 inches tall
• U-Bolt style

Fits universal joint 3.625 cap to cap with 1.062 Bearing caps

DIMENSIONS

• SPLINE OD = 1.235
• D = 1.062
• E = 3.625
• Q = 2.42
• R = 1.81
• S = 4.03

9000472

• Ford 9 inch Pinion Yoke KIT
  • Fits all Ford 9 inch rear ends with 28 spline pinion gear
  • INCLUDES: u-bolt set and pinion nut
• 1330 series - 3.625 x 1.125 inch Ford Big Cap
• 28 splines
• 4 inches tall
• U-Bolt style

Fits universal joint 3.625 cap to cap with 1.125 Bearing caps

DIMENSIONS

• SPLINE OD = 1.235
• D = 1.125
• E = 3.625
• Q = 2.42
• R = 1.81
• S = 4.03

9131104

• Ford 9 inch Pinion Yoke KIT
  • Fits all Ford 9 inch rear ends with 28 spline pinion gear
  • INCLUDES: u-bolt set and pinion nut
• 1310 series - 3.219 x 1.062 inch
• 28 splines
• 5 inches tall
• U-Bolt style

Fits universal joint 3.210 cap to cap with 1.062 Bearing caps

DIMENSIONS

• SPLINE OD = 1.235
• D = 1.062
• E = 3.219
• Q = 2.42
• R = 1.81
• S = 5.03

  TIP: You can also use this 5 inch tall pinion yoke to replace your 4 inch tall pinion yoke when you need to get your slip yoke into the transmission 1 inch further.   Ideal way to get that extra inch that you need when the driveshaft is a bit too short.

9321478

• Ford 9 inch Pinion Yoke KIT
  • Fits all Ford 9 inch rear ends with 28 spline pinion gear
  • INCLUDES: u-bolt set and pinion nut
• 1330 series - 3.625 x 1.125 inch Ford Big Cap
• 28 splines
• 5 inches tall
• U-Bolt style

Fits universal joint 3.625 cap to cap with 1.125 Bearing caps

DIMENSIONS

• SPLINE OD = 1.235
• D = 1.125
• E = 3.625
• Q = 2.42
• R = 1.81
• S = 5.03

 Mark Williams Enterprises 39023

• 1350 series Chromoly Pinion Yoke fits Ford 8.8 rear with 30 spline pinion

  • Manufactured from high strength heat treated 4340 steel.
• 30 spline
• U-Bolt Style
• 3-9/32 inches tall
• Machined to accept data collection ring

FORD DL3Z-4851-A

Pinion Flange to fit Ford 8.8 inch rear ends up to 2004

Fits car and light truck 8.8 inch rear ends up to 2004

• 4.25 inch bolt circle
• 2 inch pilot
• 30 splines
