1310 to 1350 series Combination Universal Joints
- To connect 1310 series driveshafts or driveline components to 1350 series driveshafts or driveline components.
- For example:
- to connect a 1310 slip yoke to a 1350 driveshaft.
- to connect a 1350 driveshaft to a 1310 rear end pinion yoke
- 1310 series
- 3.219 inches (3 7/32) wide across bearing caps
- Two different options for bearing caps....
- Option #1....2 bearing caps 1.062 inch (1 1/16) diameter
- Option #2....2 bearing caps 1.125 inch (1 1/8) diameter to connect to a Ford 1310 pinion yoke designed for the 1 1/8 inch bearing caps
- Designed for Outside snap ring style driveshaft yokes and also Locating Tab style pinion yokes, transmission yokes and transfer case yokes
- 1350 series
- 3.625 inches (3 5/8) wide across bearing caps
- 2 bearing caps are 1.187 inch (1 3/16) diameter
- Designed for Outside snap ring style driveshaft yokes and also Locating Tab style pinion yokes, transmission yokes and transfer case yokes
CLICK on the selections below for more details

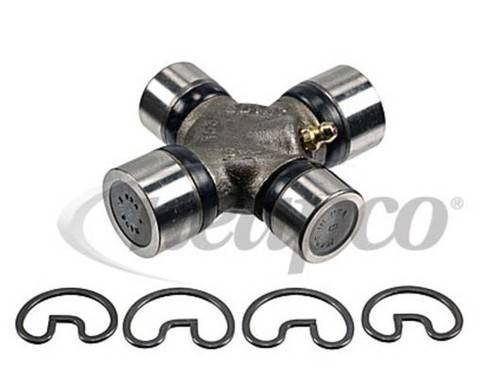

Combo U-Joint 1310 to 1350 series 3.219 X 3.625
1.062 X 1.188 Bearing Cap Diameter
1.125 X 1.188 Bearing Cap Diameter
|
