1330 to 1350 series Combination Universal Joints
- To connect 1330 series driveshafts or driveline components to 1350 series driveshafts or driveline components.
- For example:
- to connect a 1330 slip yoke to a 1350 driveshaft.
- to connect a 1350 driveshaft to a 1330 rear end pinion yoke with 1.062 caps
- to connect a 1350 driveshaft to a 1330 Ford BIG CAP pinion yokes, transmission yokes and transfer case yokes with 1.125 caps
- 1330 series
- 3.625 inches (3 5/8) wide across bearing caps
- 2 bearing caps are 1.062 inch (1 1/16) diameter
- Designed for Outside snap ring style driveshaft yokes and also Locating Tab style pinion yokes, transmission yokes and transfer case yokes
- 1330 series FORD BIG CAP
- 3.625 inches (3 5/8) wide across bearing caps
- 2 bearing caps are 1.125 inch (1 1/8) diameter
- Designed for Locating Tab style pinion yokes, transmission yokes and transfer case yokes
- 1350 series
- 3.625 inches (3 5/8) wide across bearing caps
- 2 bearing caps are 1.188 inch (1 3/16) diameter
- Designed for Outside snap ring style driveshaft yokes and also Locating Tab style pinion yokes, transmission yokes and transfer case yokes
CLICK on the selections below for more details

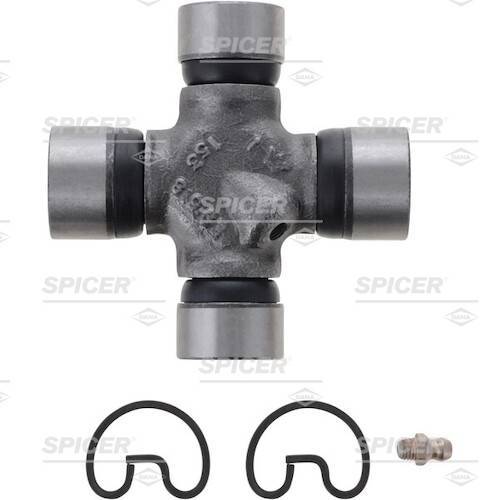

Combo U-Joint 1330 to 1350 series 3.625 X 3.625
1.062 X 1.188 Bearing Cap Diameter
1.125 X 1.188 Bearing Cap Diameter
|
