1310 Series ... see u-joints at bottom of this page
OEM U-Bolt style pinion yoke ... U-Bolt Set included
Exact match to original equipment
INCLUDES
U-Bolts, lock washers and nuts

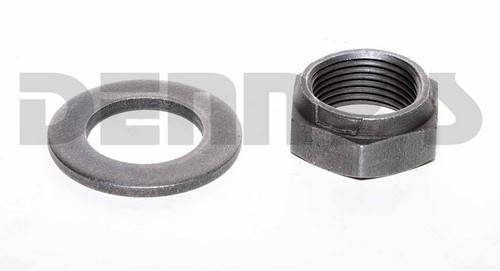

Pinion Nut and Washer
DIMENSIONS
SPLINE OD = 1.328
D = 1.062
E = 3.219
Q = 1.190
R = 1.740
S = 2.625
Restoration fanatics will appreciate how exact this unit resembles the original OEM GM Corvette Pinion yoke. U-joint size is 3 7/32 inches wide with 1 1/16th inch cap diameter. These will have the same overall dimensions as your original yoke and most importantly for those of you who are looking for “restoration originality” they will look just like the originals. This size was normally used from 1963 to 1974 but it will fit all 30 spline 1963 to 1979 Corvette rear differentials. Comes with U-Bolts, Pinion Nut and Washer. Replace that old worn out original with a new one.
