DANA SPICER 2-3-8001KX Slip Yoke 1310 Series
$71.95 $68.95 each
Part Number:
2-3-8001KX
$71.95 $68.95 each
DANA SPICER 2-3-8001KX
1310 Series Slip Yoke
Status: IN STOCK
DANA SPICER 2-40-1701 SPLINE Fits 2.0 inch .120 wall tubing 1.375 inch Diameter with 16 Splines
$39.95 each
Part Number:
2-40-1701
$39.95 each
DANA SPICER SPLINE 2-40-1701
Fits any series 16 Spline SLIP YOKE designed for 1.375 inch diameter spline
Fits TUBE DIAMETER = 2.0 inch OUTSIDE TUBE Diameter
Fits TUBE WALL THICKNESS = .120 inch Tube wall thickness
Major SPLINE Diameter = 1.375
SPLINES = 16
K = 6.188
L = 2.250
R = 5.625
Status: IN STOCK
DANA SPICER 211916X Rubber Dust Boot 1.140 ID x 1.670 ID x 4.070 inches long 3 Bellows for spline and slip yoke style driveshaft fits 1210, 1310 and 1330 series
$15.76 each
Part Number:
211916X
$15.76 each
SPICER 211916X
Rubber Dust Boot for spline and slip style driveshaft
Comes with two clamps to firmly attach boot to slip yoke and to spline shaft
Normally found on 1210, 1310 and 1330 series driveshafts
Fits 1 3/8 inch diameter splines
3 Bellows
Status: IN STOCK

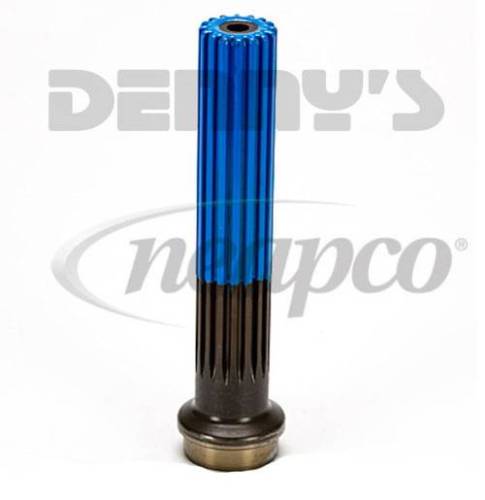

NEAPCO N2-40-1701-2 SPLINE Fits 2.0 inch .120 wall tubing
$104.95 $99.95 each
Part Number:
N2-40-1701-2
$104.95 $99.95 each
NEAPCO N2-40-1701-2
SPLINE Fits 2.0 inch .120 wall tubing
Fits any series 16 Spline SLIP YOKE designed for 1.375 inch diameter spline
Fits TUBE DIAMETER = 2.0 inch OUTSIDE TUBE Diameter
Fits TUBE WALL THICKNESS = .120 inch Tube wall thickness
Major SPLINE Diameter = 1.375
SPLINES = 16
K = 7.750
L = 6.250
R = 7.250
See listing below for suggested slip yokes
1310 series ... N2-3-8021KX or 2-3-8021KX
plus additional 280195 splined press on seal or rubber boot 211932X
1330 series ... N2-3-8041KX or 2-3-8041KX
plus additional 280195 splined press on seal or rubber boot 211932X
1350 series ...3-3-2591KX comes with splined seal
1350 series ...N3-3-1502KX comes with splined seal
Status: IN STOCK
Dana Spicer 2-40-5023529 Spline long travel 19 based on 20 splines fits 2.0 OD x 0.120 wall tube
$166.95 each
Part Number:
2-40-5023529
$166.95 each
Dana Spicer 2-40-5023529
Long Travel Spline - use with Dana Spicer 2-3-5023651KX slip yoke for 4.5 inches of in/out movement
This spline is 19 based on 20 and fits the 18 based on 20 SLIP YOKE in two positions
Fits 2.0 x 0.120 wall tube
Status: IN STOCK - FREE SHIPPING
Dana Spicer 2-3-5023651KX Slip Yoke long travel 1310 series 18 based on 20 splines 1.338
$210.95 each
Part Number:
2-3-5023651KX
$210.95 each
Dana Spicer 2-3-5023651KX
1310 Series Long Travel Slip Yoke - use with 2-40-5023529 spline for 4.5 inches of in/out movement
Spline/Hole Outside Diameter = 1.338
Number of Splines = 18 based on 20 - 2 wide spaces
Series = 1310
Lock up style = OUTSIDE
Universal Joint Width = 3.219
D - Universal Joint Bore = 1.062
Comes with Dust Cap Part Number = 211121X
Dust Cap Style = 1 PIECE PRESS ON
F - Center of u-joint bore to plug = 1.437
J - Center of u-joint bore to End of Slip yoke barrel = 9.812
Status: IN STOCK - FREE SHIPPING
