3.5 x .083 DOM DRIVESHAFT TUBING - 12 INCH LENGTH
$25.30 each
|
| Part Number:
3500-083-12
|
$25.30 each
|
|
DRIVESHAFT TUBING - DOM
- 3.5 INCH OUTSIDE DIAMETER (3 1/2 inch)
- .083 WALL THICKNESS
- DOM - Drawn over mandrel
- ASTM A513
|
|
Status: SOLD OUT...More Coming Soon
|
|
|
|
|
3.5 x .083 DOM DRIVESHAFT TUBING - 24 INCH LENGTH
$50.60 each
|
| Part Number:
3500-083-24
|
$50.60 each
|
|
DRIVESHAFT TUBING - DOM
- 3.5 INCH OUTSIDE DIAMETER (3 1/2 inch)
- .083 WALL THICKNESS
- DOM - Drawn over mandrel
- ASTM A513
|
|
Status: SOLD OUT...More Coming Soon
|
|
|
|
|
3.5 x .083 DOM DRIVESHAFT TUBING - 36 INCH LENGTH
$79.20 each
|
| Part Number:
3500-083-36
|
$79.20 each
|
|
DRIVESHAFT TUBING - DOM
- 3.5 INCH OUTSIDE DIAMETER (3 1/2 inch)
- .083 WALL THICKNESS
- DOM - Drawn over mandrel
- ASTM A513
|
|
Status: SOLD OUT...More Coming Soon
|
|
|
|
|
3.5 x .083 DOM DRIVESHAFT TUBING - 48 INCH LENGTH
$107.80 each
|
| Part Number:
3500-083-48
|
$107.80 each
|
|
DRIVESHAFT TUBING - DOM
- 3.5 INCH OUTSIDE DIAMETER (3 1/2 inch)
- .083 WALL THICKNESS
- DOM - Drawn over mandrel
- ASTM A513
|
|
Status: SOLD OUT...More Coming Soon
|
|
|
|
|
3.5 x .083 DOM DRIVESHAFT TUBING - 60 INCH LENGTH
$137.50 each
|
| Part Number:
3500-083-60
|
$137.50 each
|
|
DRIVESHAFT TUBING - DOM
- 3.5 INCH OUTSIDE DIAMETER (3 1/2 inch)
- .083 WALL THICKNESS
- DOM - Drawn over mandrel
- ASTM A513
|
|
Status: SOLD OUT...More Coming Soon
|
|
|
|
|
DANA SPICER 3-28-427 Weld Yoke 1350 Series to fit 3.5 inch .083 wall tubing
$38.95 each
|
| Part Number:
3-28-427
|
$38.95 each
|
|
DANA SPICER 3-28-427
1350 Series Weld Yoke
- Fits 3.5 inch OD X .083 wall tubing
- F - Butt Diameter = 3.345
- Series = 1350
- Lock up style = OUTSIDE SNAP RING
- E - Universal Joint Width = 3.625
- D - Universal Joint Bore = 1.187
- H - Center of u-joint bore to point of weld = 1.840
- Special Notes: USE KIT 5-178X, 5-1350X
CLICK HERE : For ALL DANA SPICER Weld Yoke Part Numbers, Specifications and Dimensions
|
|
Status: IN STOCK
|
|
|
|
|

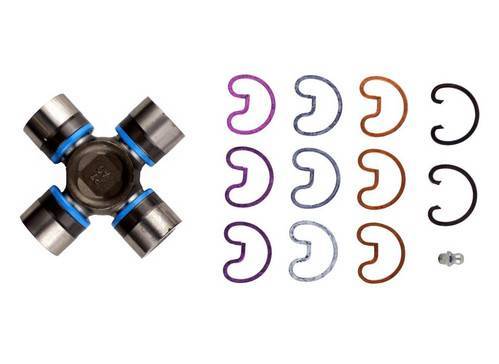

DANA SPICER 5-1350X maintenance free solid body universal joint
$23.54 each
|
| Part Number:
5-1350X
|
$23.54 each
|
|
DANA SPICER 5-1350X
1350 Series MAINTENANCE FREE U-Joint.
|
|
Status: IN STOCK
|
|
|
|
|
Dana Spicer 5-178X Greaseable u-joint 1350 Series
$20.95 each
|
| Part Number:
5-178X
|
$20.95 each
|
|
DANA SPICER 5-178X
1350 Series GREASEABLE U-Joint.
|
|
Status: IN STOCK
|
|
|
|
|
DANA SPICER 5-1350-1X GREASEABLE Universal Joint 1350 Series
$32.60 each
|
| Part Number:
5-1350-1X
|
$32.60 each
|
|
DANA SPICER 5-1350-1X
- 1350 Series Spicer GREASEABLE Universal Joint
- 5-1350-1X greaseable version of the 5-1350X
- Grease fitting in end of bearing cap
- Dimensions
- A = 3.625 inches
- B = 3.625 inches
- C = bearing caps are 1.188 inch diameter
- D = bearing caps are 1.188 inch diameter
- outside snap rings
|
|
Status: IN STOCK
|
|
|
