Driveshaft and Driveline Parts > PINION YOKES - Front and Rear End > Chevy 55-64 with 17 Spline

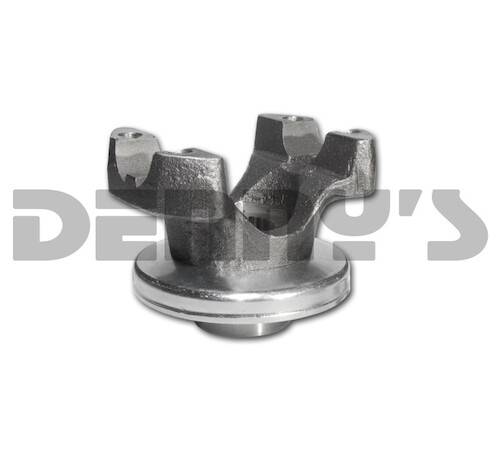

9174662 Pinion yoke 1310 series 17 Spline fits 1955 to 1964 Chevrolet

Part Number:
9174662

UPC:

Your Cost $116.55

Sorry, sold out

CLICK HERE to be NOTIFIED when this item is available

STATUS: SOLD OUT...More Coming Soon

9174662

Pinion yoke

1310 series ...see 5-153X U-Joint
17 spline
U-bolt style pinion yoke for 1955-1964 Chevrolet with removable center section differentials and also for the 56-62 Corvette.
Scroll to bottom of page for pinion nut, washer and u-bolt set.

9174662 Pinion yoke 1310 series 17 Spline fits 1955 to 1964 Chevrolet

9174662 Pinion yoke 1310 series 17 Spline fits 1955 to 1964 Chevrolet

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: $116.55

9174662

Pinion yoke

1310 series
17 spline
U-bolt style pinion yoke for 1955-1964 Chevrolet with removable center section differentials and also for the 56-62 Corvette.
Scroll to bottom of page for pinion nut, washer and u-bolt set.

Spline Count: 17
Spline Diameter: 1.310
Hub Diameter: 1.739
Thru Hole: 1.181
Centerline To End: 2.595
U-joint: 1310 ...see 5-153X U-Joint

9174662 Pinion yoke 1310 series 17 Spline fits 1955 to 1964 Chevrolet

9174662 Pinion yoke 1310 series 17 Spline fits 1955 to 1964 Chevrolet

You May Also Need These Parts to Complete the Job

8812 Pinion Nut and Washer fits 1955 to 1964 CHEVY drop out carrier with 17 spline pinion Part#: 8812 $9.95	Timken Seal 6818 Part#: 6818 $20.39
Dana Spicer 2-94-28X U-Bolt Set fits 1.062 bearing cap diameter 1.416 CL on 1310 or 1330 pinion yokes, transfer case yokes and transmission yokes FORD, CHEVY, GMC, DODGE, JEEP, IHC Part#: 2-94-28X $5.98	Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.10
Dana Spicer 5-1310-1X Universal Joint 1310 Series GREASEABLE 3.219 x 1.062 outside snap rings Part#: 5-1310-1X $26.95	Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66
