Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

9201147 Chromoly Pinion Yoke 7290 series fits 8.75 inch Dodge with 10 spline pinion 8 3/4 inch
Part Number:
9201147


UPC:
Your Cost $169.55
Sorry, sold out
STATUS:  DISCONTINUED ITEM

9201147

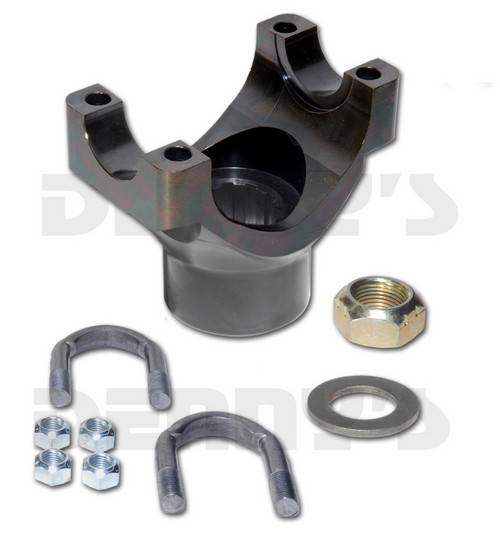

Chromoly Pinion Yoke 7290 Series

  • Fits DODGE 8.75 inch
    • Fits ALL Dodge, Plymouth and Chrysler 8 3/4 inch rear ends with 10 spline pinion gear
  • Fits 7290 Series universal joint DODGE "Small" U-joint
    • 24 = 2.625 between flats where "C" clip locks u-joint in place
    • 22 = 1.125 Bearing Cap Diameter
  • 10 spline
  • Forged Chromoly for superior strength

INCLUDES

  • Pinion nut and washer
  • 7290 series U-bolt set.

DIMENSIONS

  • 21A = 3.375 inch
  • 25 = 1.875 inch
  • Length through spline hole = 1.500 inch
    • full spline - no counterbore
  • 23 = 1.187 inch
  • Washer OD = 1.500 inch
  • Washer ID = .770 inch
  • Washer thickness = .115 inch
  • Socket wrench size for nut =  1-1/8 inch.
9201147 Chromoly Pinion Yoke 7290 series fits 8.75 inch Dodge with 10 spline pinion 8 3/4 inch
9201147 Chromoly Pinion Yoke 7290 series fits 8.75 inch Dodge with 10 spline pinion 8 3/4 inch
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  DISCONTINUED ITEM
YOUR COST:  $169.55

9201147

Chromoly Pinion Yoke 7290 Series

  • Fits DODGE 8.75 inch
    • Fits ALL Dodge, Plymouth and Chrysler 8 3/4 inch rear ends with 10 spline pinion gear
  • Fits 7290 Series universal joint DODGE "Small" U-joint
    • 24 = 2.625 between flats where "C" clip locks u-joint in place
    • 22 = 1.125 Bearing Cap Diameter
  • 10 spline
  • Forged Chromoly for superior strength

INCLUDES

  • Pinion nut and washer
  • 7290 series U-bolt set.

DIMENSIONS

  • 21A = 3.375 inch
  • 25 = 1.875 inch
  • Length through spline hole = 1.500 inch
    • full spline - no counterbore
  • 23 = 1.187 inch
  • Washer OD = 1.500 inch
  • Washer ID = .770 inch
  • Washer thickness = .115 inch
  • Socket wrench size for nut =  1-1/8 inch.
