Chevrolet > 4X4 TRUCKS > CV Parts - Yokes - U-Joints - Hardware > PINION YOKES > 12 BOLT

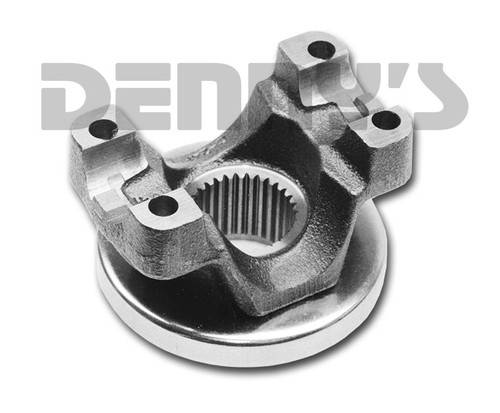

NEAPCO N2-4-GM01X Pinion Yoke U-Bolt style 1310 Series fits Chevy and GMC Truck 12 Bolt Rear end C10, C20, K5, K10, K15

Part Number:
N2-4-GM01X

UPC:

083869002866

Your Cost $109.48

STATUS: IN STOCK - FREE SHIPPING

NEAPCO N2-4-GM01X

PINION YOKE

Fits Chevy and GMC 12 bolt TRUCK Rear ends
- C10, C20, K5, K10, K15
30 splines
1310 Series ... see u-joints at bottom of this page
U-Bolt style pinion yoke ... see u-bolts at bottom of this page

DIMENSIONS

SPLINE OD = 1.328
D = 1.062
E = 3.219
Q = 1.190
R = 1.740
S = 2.59

Neapco

NEAPCO N2-4-GM01X Pinion Yoke U-Bolt style 1310 Series fits Chevy and GMC Truck 12 Bolt Rear end C10, C20, K5, K10, K15

NEAPCO N2-4-GM01X Pinion Yoke U-Bolt style 1310 Series fits Chevy and GMC Truck 12 Bolt Rear end C10, C20, K5, K10, K15

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $109.48

NEAPCO N2-4-GM01X

PINION YOKE

Fits Chevy and GMC 12 bolt TRUCK Rear ends
- C10, C20, K5, K10, K15
30 splines
1310 Series ... see u-joints at bottom of this page
U-Bolt style pinion yoke ... see u-bolts at bottom of this page

DIMENSIONS

SPLINE OD = 1.328
D = 1.062
E = 3.219
Q = 1.190
R = 1.740
S = 2.59

image/jpeg

NEAPCO N2-4-GM01X Pinion Yoke U-Bolt style 1310 Series fits Chevy and GMC Truck 12 Bolt Rear end C10, C20, K5, K10, K15

NEAPCO N2-4-GM01X Pinion Yoke U-Bolt style 1310 Series fits Chevy and GMC Truck 12 Bolt Rear end C10, C20, K5, K10, K15

You May Also Need These Parts to Complete the Job

Dana Spicer 2-94-28X U-Bolt Set fits 1.062 bearing cap diameter 1.416 CL on 1310 or 1330 pinion yokes, transfer case yokes and transmission yokes FORD, CHEVY, GMC, DODGE, JEEP, IHC Part#: 2-94-28X $5.98	Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.10
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66	TIMKEN 8460N - Pinion Seal fits Chevy 12 Bolt CAR & TRUCK rear ends Part#: 8460N $13.95
Neapco 1-0153 Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153 ~~$15.76~~ $14.95
