Chevrolet > 4X4 TRUCKS > CV Parts - Yokes - U-Joints - Hardware > PINION YOKES > 8.5 INCH 10 BOLT

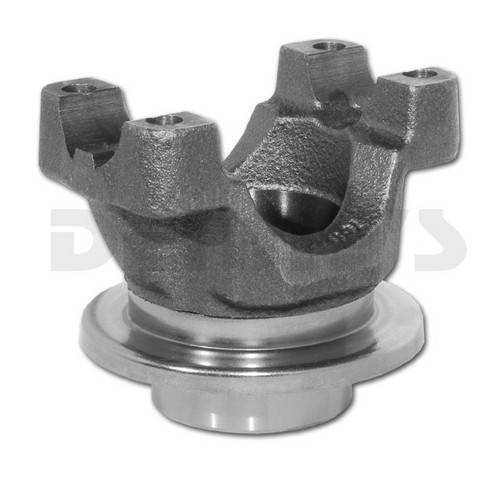

Neapco N2-4-GM03X PINION YOKE 30 spline 1310 Series fits Chevy, GMC 8.5 inch 10 Bolt FRONT and REAR AXLE

Part Number:
N2-4-GM03X

UPC:

083869002880

Your Cost $105.95

STATUS: IN STOCK - FREE SHIPPING

Neapco N2-4-GM03X

PINION YOKE
- 30 spline
- 1310 Series
- Fits Chevy and GMC 8.5 inch 10 Bolt 4X4 FRONT AXLE
- Fits Chevy and GMC 8.5 inch 10 Bolt Car and Light truck REAR AXLE
U-Bolt Set Sold Separately

Neapco

Neapco N2-4-GM03X PINION YOKE 30 spline 1310 Series fits Chevy, GMC 8.5 inch 10 Bolt FRONT and REAR AXLE

Neapco N2-4-GM03X PINION YOKE 30 spline 1310 Series fits Chevy, GMC 8.5 inch 10 Bolt FRONT and REAR AXLE

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $105.95

Neapco N2-4-GM03X

PINION YOKE
- 30 spline
- 1310 Series
- Fits Chevy and GMC 8.5 inch 10 Bolt 4X4 FRONT AXLE
- Fits Chevy and GMC 8.5 inch 10 Bolt Car and Light truck REAR AXLE

DIMENSIONS

1310 Series
CL TO END OF HUB: 3.16
HUB DIAMETER: 1.94
JOINT ANGLE: 20
LENGTH THROUGH BORE: 1.15
SPLINE DIAMETER: 1.312
SPLINES: 30

U-Bolt Set Sold Separately

Neapco N2-4-GM03X PINION YOKE 30 spline 1310 Series fits Chevy, GMC 8.5 inch 10 Bolt FRONT and REAR AXLE
Click Here to Enlarge	Click Here to Enlarge

You May Also Need These Parts to Complete the Job

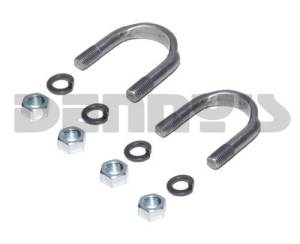

Dana Spicer 2-94-28X U-Bolts for 1.062 bearing cap diameter 1310 or 1330 Series Part#: 2-94-28X $5.98	Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.10
Timken 2043 Pinion Seal for GM 8.5 Inch 10 Bolt Rear End Part#: 2043 $10.95	Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66
Timken 8622 Pinion Seal Chevy and GMC 8.5 Inch 10 Bolt 4x4 TRUCK FRONT Part#: 8622 $23.34	Neapco 1-0153 Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153 ~~$15.76~~ $14.95
