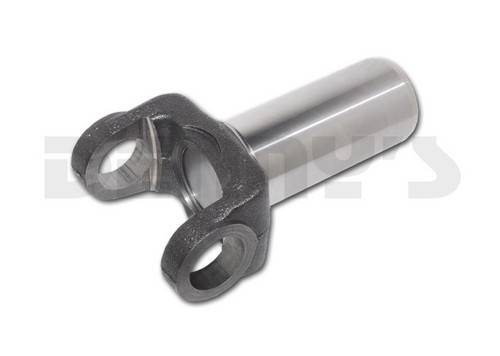

NEAPCO N3R-3-9762X Transmission Slip Yoke 3R series INSIDE CLIPS 32 spline TH400

Part Number:
N3R-3-9762X

UPC:

083869010106

Your Cost ~~$128.95~~ Sale Price $123.95

You Save $5.00

STATUS: IN STOCK - FREE SHIPPING

NEAPCO N3R-3-9762X

GM Original Equipment Replacement 3R Series 32 spline Transmission Slip Yoke. Used on Chevy and GM TH400 automatic and Muncie manual transmission with 32 spline output.

Designed for inside "C" Clip style 3R Series u-joints.

INSIDE "C" Clip Style
1 1/8 Bearing Cap Diameter

NEAPCO N3R-3-9762X Transmission Slip Yoke 3R series INSIDE CLIPS 32 spline TH400

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: ~~$128.95~~ Sale Price $123.95

You Save $5.00

NEAPCO N3R-3-9762X

GM Original Equipment Replacement 3R Series 32 spline Transmission Slip Yoke. Used on Chevy and GM TH400 automatic and Muncie manual transmission with 32 spline output.

Designed for inside "C" Clip style 3R Series u-joints.

Length to center of u-joint... Dimension #1 = 5 3/8 inches
Barrel Diameter... Dimension #2 = 1.886 inches
Barrel Length... Dimension #3 = 3 3/4 inches
U-joint cap diameter... Dimension #4 = 1 1/8 inches
U-joint width between "C" Clips... Dimension #5A = 2.562 inches
Inside "C" Clip style u-joint...Scroll down to bottom of page for universal joints
Series... GM 3R OEM
Spline count... 32 NOTE: When counting splines inside a slip yoke you may find a wide space with a missing spline...if so then you must add (1) to your total count.

image/jpeg

NEAPCO N3R-3-9762X Transmission Slip Yoke 3R series INSIDE CLIPS 32 spline TH400
