Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck


DANA 30 FRONT - 1967-1971 FORD U-100 BRONCO > DIFF PARTS > COVER BOLTS

Dana Spicer 34279 Diff Cover BOLT 5/16-18 hex head fits Dana 25, 27, 30, Super 30, 35, 44, Chevy 8.2 inch 10 bolt, Chevy 12 Bolt, GM 7.5 and 7.6 inch 10 bolt, GM 8.5 and 8.6 inch 10 bolt, AMC 20
Part Number:
34279


UPC:
023913138363

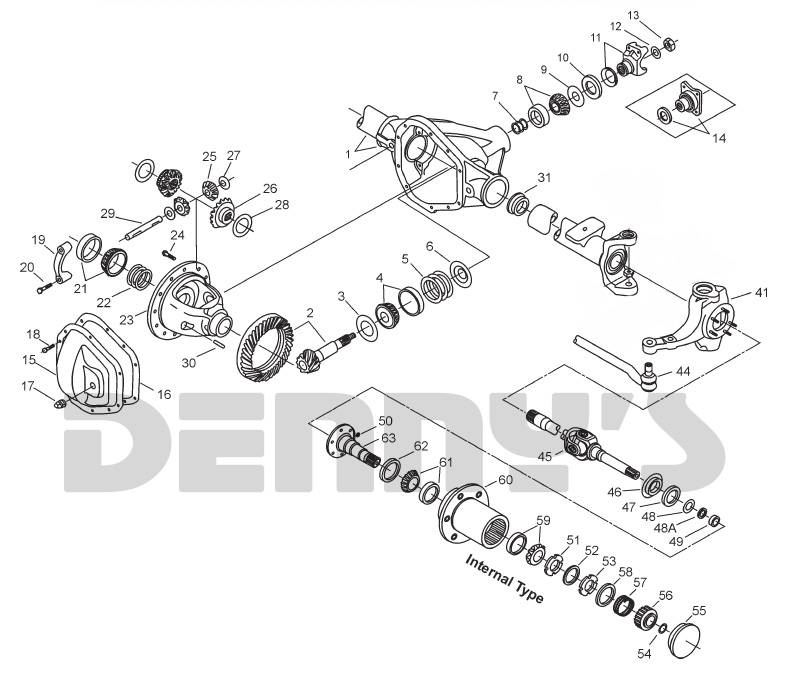

Diagram Number:
18
Your Cost $2.25
STATUS:  IN STOCK

DANA SPICER 34279

Differential COVER Bolt

  • Thread Size = .312 (5/16) -18
  • Head Size = 1/2 inch HEX HEAD
  • Thread length = .625 inch
  • Serrated washer bolt head

Fits the following FRONT and REAR diff covers

  • Dana 25
  • Dana 27
  • Dana 30 and Super 30
  • Dana 35
  • Dana 44
  • Chevy 8.2 inch 10 bolt
  • Chevy 12 bolt car and truck
  • GM 7.5 and 7.6 inch 10 bolt
  • GM 8.5 inch 10 bolt front and rear
  • GM 8.6 inch 10 bolt
  • AMC 20

DOES NOT FIT Dana 44 IFS independent front suspension

Spicer
Dana Spicer 34279 Diff Cover BOLT 5/16-18 hex head fits Dana 25, 27, 30, Super 30, 35, 44, Chevy 8.2 inch 10 bolt, Chevy 12 Bolt, GM 7.5 and 7.6 inch 10 bolt, GM 8.5 and 8.6 inch 10 bolt, AMC 20
Dana Spicer 34279 Diff Cover BOLT 5/16-18 hex head fits Dana 25, 27, 30, Super 30, 35, 44, Chevy 8.2 inch 10 bolt, Chevy 12 Bolt, GM 7.5 and 7.6 inch 10 bolt, GM 8.5 and 8.6 inch 10 bolt, AMC 20
Click for Larger Photo
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $2.25

DANA SPICER 34279

Differential COVER Bolt

  • Thread Size = .312 (5/16) -18
  • Head Size = 1/2 inch HEX HEAD
  • Thread length = .625 inch
  • Serrated washer bolt head

Fits the following FRONT and REAR diff covers

  • Dana 25
  • Dana 27
  • Dana 30 and Super 30
  • Dana 35
  • Dana 44
  • Chevy 8.2 inch 10 bolt
  • Chevy 12 bolt car and truck
  • GM 7.5 and 7.6 inch 10 bolt
  • GM 8.5 inch 10 bolt front and rear
  • GM 8.6 inch 10 bolt
  • AMC 20

DOES NOT FIT Dana 44 IFS independent front suspension
Dana Spicer 34279 Diff Cover BOLT 5/16-18 hex head fits Dana 25, 27, 30, Super 30, 35, 44, Chevy 8.2 inch 10 bolt, Chevy 12 Bolt, GM 7.5 and 7.6 inch 10 bolt, GM 8.5 and 8.6 inch 10 bolt, AMC 20

Dana Spicer 34279 Diff Cover BOLT 5/16-18 hex head fits Dana 25, 27, 30, Super 30, 35, 44, Chevy 8.2 inch 10 bolt, Chevy 12 Bolt, GM 7.5 and 7.6 inch 10 bolt, GM 8.5 and 8.6 inch 10 bolt, AMC 20
