Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

DANA SPICER SPL55-3X Front Axle Universal Joint NON GREASEABLE fits 1999 to 2003 FORD F-450 Super Duty, F-550 Super Duty all with DANA 60 Front
Part Number:
SPL55-3X


UPC:
023913121068
Your Cost $55.78
STATUS:  IN STOCK

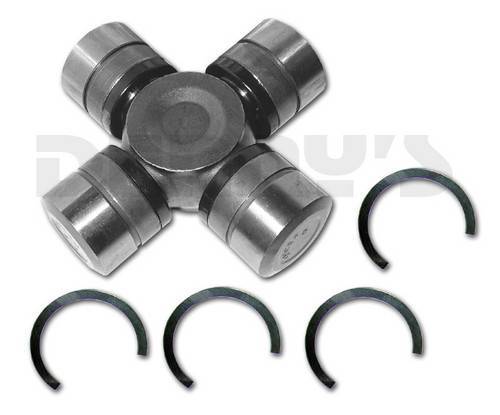

Dana Spicer SPL55-3X

Dana 60 Front Axle U-joint

  • NON Greaseable front axle universal joint  MAINTENANCE FREE...Very strong , high mileage
  • Fits FORD F-450 Super Duty and F-550 Super Duty with Dana 60 Front Axles
    • 1999, 2000, 2001, 2002, 2003

DIMENSIONS

  • C & D = 1.375 inch diameter with inside "C" Clips to lock the cap in place.
  • A & B = 3 inches is the span between the yoke inner surfaces where the "C" Clips lock in.
  • 1480WJ series
  • Replaces old number Dana Spicer part number 5-806X

See SPL55-4X for GREASEABLE version

Spicer
DANA SPICER SPL55-3X Front Axle Universal Joint NON GREASEABLE fits 1999 to 2003 FORD F-450 Super Duty, F-550 Super Duty all with DANA 60 Front
DANA SPICER SPL55-3X Front Axle Universal Joint NON GREASEABLE fits 1975 to 2011 FORD F-450 Super Duty, F-550 Super Duty all with DANA 60 Front
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $55.78

Dana Spicer SPL55-3X

Dana 60 Front Axle U-joint

  • NON Greaseable front axle universal joint  MAINTENANCE FREE...Very strong , high mileage
  • Fits FORD F-450 Super Duty and F-550 Super Duty with Dana 60 Front Axles
    • 1999, 2000, 2001, 2002, 2003

DIMENSIONS

  • C & D = 1.375 inch diameter with inside "C" Clips to lock the cap in place.
  • A & B = 3 inches is the span between the yoke inner surfaces where the "C" Clips lock in.
  • 1480WJ series
  • Replaces old number Dana Spicer part number 5-806X

See SPL55-4X for GREASEABLE version
