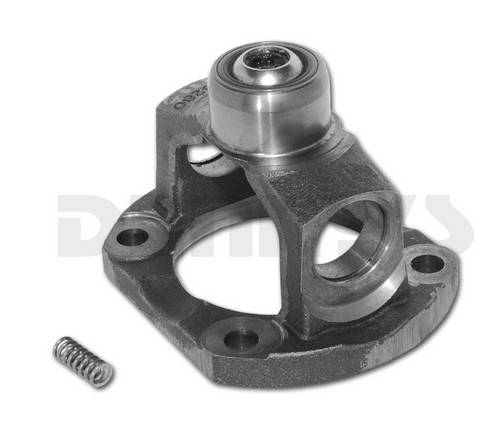

NEAPCO N3-83-3281X Double Cardan CV Flange Yoke CHEVY and GMC 4x4 1350 Series
Part Number:
N3-83-3281X


UPC:
083869012674
Your Cost $112.77 Sale Price $107.40
You Save $5.37
Sorry, sold out
STATUS:  IN STOCK - FREE SHIPPING

NEAPCO N3-83-3281X

Chevy & GMC Double Cardan CV Flange Yoke 1350 Series General Motors.  Non Greaseable Maintenance Free design. Mounts to any GM Double Cardan CV style transfer case flange or rear end flange.  Use this CV flange yoke to attach a 1350 Series Double Cardan CV driveshaft to a Chevy or GMC 4x4 Transfer Case.  Also can be used to attach a 1350 Series Double Cardan CV driveshaft to a GM rear end that originally had the 3R Series Double Cardan CV Joint.

Neapco
NEAPCO N3-83-3281X Double Cardan CV Flange Yoke CHEVY and GMC 4x4 1350 Series
NEAPCO N3-83-3281X Double Cardan CV Flange Yoke CHEVY and GMC 4x4 1350 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $112.77 Sale Price $107.40
You Save $5.37

NEAPCO N3-83-3281X

Chevy & GMC Double Cardan CV Flange Yoke 1350 Series General Motors.  Non Greaseable Maintenance Free design.  Mounts to any GM Double Cardan CV style transfer case flange or rear end flange.  Use this CV flange yoke to attach a 1350 Series Double Cardan CV driveshaft to a Chevy or GMC 4x4 Transfer Case.

Also can be used to attach a 1350 Series Double Cardan CV driveshaft to a GM rear end that originally had the 3R Series Double Cardan CV Joint.

  • 1350 Series Double Cardan CV Flange Yoke
  • Use with 1350 Series greaseable u-joints listed below.
    • Does not work with non greaseable Dana Spicer 5-1350X or 5-1350-1X greaseable universal joints because the body of the u-joint it too large to flex freely in this yoke
  • Needle Bearing Ball Socket fits 1/2 inch stud yoke
  • Maintenance Free
  • Comes with New Spring included
  • Bolt Pattern.... 4.25 inches measured diagonally
  • Pilot Diameter... 3.125 inches (3 1/8 inches)
  • Centering Yoke Fits 1350 Series Universal Joint
    • Dimension between snap rings on centering yoke is (3.625 inches) 3 5/8 inches
    • Designed to fit (1.187 inches) 1 3/16 inch U-Joint Bearing cap

image/jpegIt is recommended that you install a new rubber boot every time you service the Double Cardan CV joint.

Please see bottom of this page for new rubber boot

NEAPCO N3-83-3281X Double Cardan CV Flange Yoke CHEVY and GMC 4x4 1350 Series

NEAPCO N3-83-3281X Double Cardan CV Flange Yoke CHEVY and GMC 4x4 1350 Series

Click to Load this Photo
Click Here to Enlarge
Click to Load this Photo
Click Here to Enlarge

You May Also Need These Parts to Complete the Job

Neapco 2-0053G universal joint 1350 Series non greaseable 3.622 x 1.188
$24.10 $22.95
Dana Spicer 5-178X Greaseable u-joint 1350 Series
$20.95
