Neapco 1-4635 Universal Joint greaseable fits FORD with 1.125 cap on 8 inch or 9 inch rear

Part Number:
1-4635

UPC:

083869146355

Your Cost ~~$35.54~~ Sale Price $33.85

You Save $1.69

Sorry, sold out

STATUS: Email for Availability

NEAPCO 1-4635

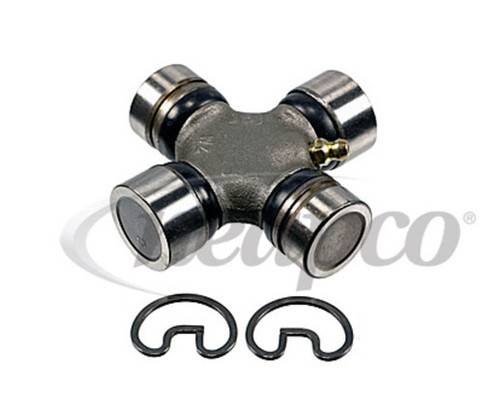

1310 Series Greaseable Universal Joint...FORD Rear Universal Joint.

For use at rear of 1310 series Driveshaft where 1.125 cap diameter is required to fit Ford 8 inch or 9 inch Rear end pinion yoke.
Also called Ford Big Cap u-joint
Same as obsolete Dana Spicer 5-1201X
See Dana Spicer 5-7439X for non greaseable version

Neapco 1-4635 Universal Joint greaseable fits FORD with 1.125 cap on 8 inch or 9 inch rear

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: Email for Availability

YOUR COST: ~~$35.54~~ Sale Price $33.85

You Save $1.69

NEAPCO 1-4635

1310 Series Greaseable Universal Joint...FORD Rear Universal Joint.

For use at rear of 1310 series Driveshaft where 1.125 cap diameter is required to fit Ford Rear end pinion yoke.
Grease Fitting in body of u-joint

Dimensions:

A = 3.219 inches
B = 3.219 inches
C = 2 bearing caps are 1.0625 inch diameter to press into driveshaft
D = 2 bearing caps are 1.125 inch diameter to fit rear end pinion yoke
Outside snap rings to lock into driveshaft yoke
Fits 1310 series Ford tab style pinion yokes typically found on Ford 8 inch and Ford 9 inch rear ends.

Notes:

Interchanges:

Neapco 1-4635 Universal Joint greaseable fits FORD with 1.125 cap on 8 inch or 9 inch rear
