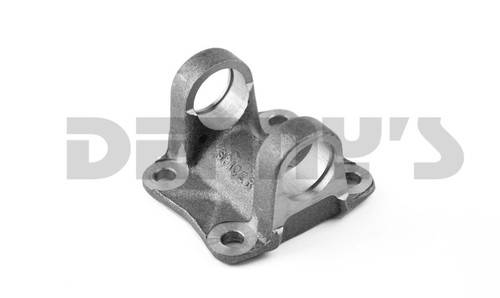

DANA SPICER 1-2-39 Fits 1100/1110 Series flange yoke with 2.250 pilot
Part Number:
1-2-39


UPC:
023913232696
Your Cost $43.95
Sorry, sold out
STATUS:  OBSOLETE - NO LONGER AVAILABLE

DANA SPICER 1-2-39

1100/1100 Series Flange Yoke




Spicer
DANA SPICER 1-2-39 Fits 1100/1110 Series flange yoke with 2.250 pilot
DANA SPICER 1-2-39 Fits 1100/1110 Series flange yoke with 2.250 pilot
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  OBSOLETE - NO LONGER AVAILABLE
YOUR COST:  $43.95

DANA SPICER 1-2-39

1100/1100Series Flange Yoke

  • A - Flange or Swing Diameter = 3.375 inches
  • B - Bolt Circle Diameter = 2.750 inches
    • Bolt Hole Diameter = 0.312 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 2.250 inches
    • Center Pilot = MALE
  • Series = 1100/1100
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 2.411 inches
    • D - U-Joint Bearing cap diameter = .938 inches
  • G - Center of u-joint bore to Face of flange = 1.188 inches
  • X - inches
  • Y - inches
  • Special Notes: BOLT HOLES EQUALLY SPACED, use on 1100 series PTO applications





Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 1-2-39 Fits 1100/1110 Series flange yoke with 2.250 pilot

DANA SPICER 1-2-39 Fits 1100/1110 Series flange yoke with 2.250 pilot
