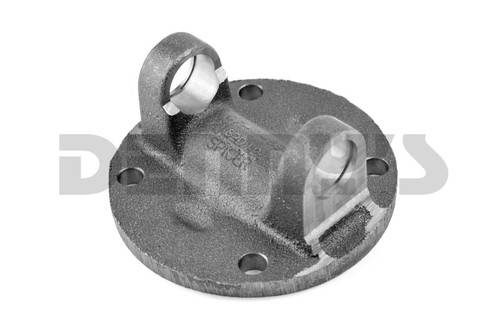

DANA SPICER 2-2-1399 Flange Yoke 1330 Series
Part Number:
2-2-1399


UPC:
Your Cost $44.25
Sorry, sold out
STATUS:  Discontinued Item...See other choices listed

DANA SPICER 2-2-1399

1330 Series Flange Yoke

  • 4.25 inch bolt circle
  • 3.125 inch female pilot






Spicer
DANA SPICER 2-2-1399 Flange Yoke 1330 Series
DANA SPICER 2-2-1399 Flange Yoke 1330 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  Discontinued Item...See other choices listed
YOUR COST:  $44.25

DANA SPICER 2-2-1399

1330Series Flange Yoke

  • A - Flange or Swing Diameter = 5.156 inches
  • B - Bolt Circle Diameter = 4.250 inches
    • Bolt Hole Diameter = 0.453 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 3.125 inches
    • Center Pilot = FEMALE
  • Series = 1330
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 3.625 inches
    • D - U-Joint Bearing cap diameter = 1.062 inches
  • G - Center of u-joint bore to Face of flange = 1.688 inches
  • X - 3.0 inches
  • Y - 3.0 inches
  • Special Notes: Bolts holes are equally spaced





Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 2-2-1399 Flange Yoke 1330 Series

DANA SPICER 2-2-1399 Flange Yoke 1330 Series
