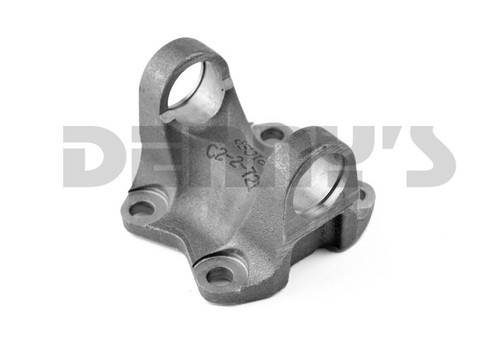

DANA SPICER 2-2-1519 Flange Yoke 1310 Series
|
|
Your Cost
$96.30 Sale Price $81.12You Save $15.18
STATUS:
FACTORY DIRECT - SPECIAL ORDER
|
|
DANA SPICER 2-2-1519
1310 Series Flange Yoke
UPC: 023913234669
Part Number: 2-2-1519
|
DANA SPICER 2-2-1519 Flange Yoke 1310 Series
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: FACTORY DIRECT - SPECIAL ORDER
YOUR COST:
$96.30 Sale Price $81.12You Save $15.18
|
DANA SPICER 2-2-1519
1310Series Flange Yoke
- A - Flange or Swing Diameter = 4.158 inches
- B - Bolt Circle Diameter = 3.346 inches
- Bolt Hole Diameter = 0.406 inches
- Bolt Holes = 4
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 2.559 inches
- Series = 1310
- Outside Snap Ring Style
- U-Joint Width between snap rings = 3.219 inches
- D - U-Joint Bearing cap diameter = 1.062 inches
- G - Center of u-joint bore to Face of flange = 1.766 inches
- X - inches
- Y - inches
- Special Notes:
|
|
