DANA SPICER 2-2-1789 Flange Yoke 1310 Series
Part Number:
2-2-1789


UPC:
Your Cost $31.85
Sorry, sold out
STATUS:  Discontinued Item...See other choices listed

DANA SPICER 2-2-1789

1310 Series Flange Yoke



DISCONTINUED ITEM...NO LONGER AVAILABLE




Spicer
DANA SPICER 2-2-1789 Flange Yoke 1310 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  Discontinued Item...See other choices listed
YOUR COST:  $31.85

DANA SPICER 2-2-1789

1310 Series Flange Yoke

  • A - Flange or Swing Diameter = 4.750 inches
  • B - Bolt Circle Diameter = 3.750 inches
    • Bolt Hole Diameter = 0.400 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 2.750 inches
    • Center Pilot = MALE
  • Series = 1310
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 3.219 inches
    • D - U-Joint Bearing cap diameter = 1.062 inches
  • G - Center of u-joint bore to Face of flange = 1.38 inches
  • X - inches
  • Y - inches
  • Special Notes: 10 mm bolt holes, equally spaced

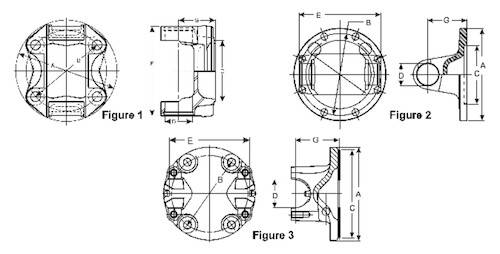

Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 2-2-1789 Flange Yoke 1310 Series
