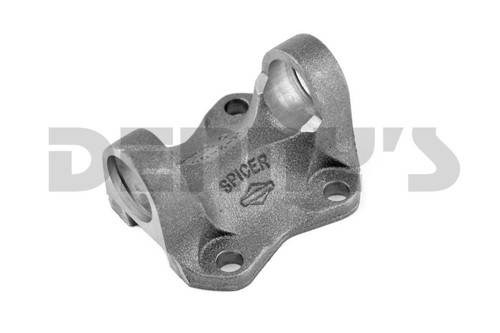

DANA SPICER 2-2-389 Flange Yoke 1310 Series
|
|
Your Cost
$87.80 Sale Price $73.96You Save $13.84
STATUS:
FACTORY DIRECT TO YOU
|
|
DANA SPICER 2-2-389
1310 Series Flange Yoke
UPC: 023913233938
Part Number: 2-2-389
|
DANA SPICER 2-2-389 Flange Yoke 1310 Series
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: FACTORY DIRECT TO YOU
YOUR COST:
$87.80 Sale Price $73.96You Save $13.84
|
DANA SPICER 2-2-389
1310Series Flange Yoke
- A - Flange or Swing Diameter = 3.875 inches
- B - Bolt Circle Diameter = 3.125 inches
- Bolt Hole Diameter = 0.375 inches
- Bolt Holes = 4
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 2.375 inches
- Series = 1310
- Outside Snap Ring Style
- U-Joint Width between snap rings = 3.219 inches
- D - U-Joint Bearing cap diameter = 1.062 inches
- G - Center of u-joint bore to Face of flange = 1.375 inches
- X - inches
- Y - inches
- Special Notes:
|
|
DANA SPICER 2-2-389 Flange Yoke 1310 Series
|
|
