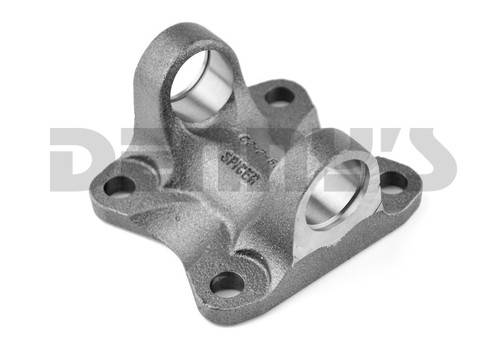

DANA SPICER 2-2-479 Flange Yoke 1310 Series
|
|
Your Cost
$32.95 Sale Price $29.59You Save $3.36
STATUS:
IN STOCK
|
|
DANA SPICER 2-2-479
1310 Series Flange Yoke
UPC: 023913228927
Part Number: 2-2-479
|
DANA SPICER 2-2-479 Flange Yoke 1310 Series
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: IN STOCK
YOUR COST:
$32.95 Sale Price $29.59You Save $3.36
|
DANA SPICER 2-2-479
1310Series Flange Yoke
- A - Flange or Swing Diameter = 4.625 inches
- B - Bolt Circle Diameter = 3.750 inches
- Bolt Hole Diameter = 0.438 inches
- Bolt Holes = 4
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 2.750 inches
- Series = 1310
- Outside Snap Ring Style
- U-Joint Width between snap rings = 3.219 inches
- D - U-Joint Bearing cap diameter = 1.062 inches
- G - Center of u-joint bore to Face of flange = 1.375 inches
- X - 2.375 inches
- Y - 2.875 inches
- Special Notes:
|
|
DANA SPICER 2-2-479 Flange Yoke 1310 Series
|
|
