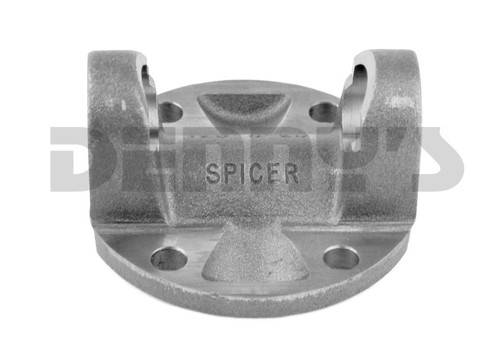

DANA SPICER 3-2-1549 Flange Yoke 1410 Series
|
|
Your Cost
$84.81 Sale Price $71.45You Save $13.36
STATUS:
FACTORY DIRECT TO YOU
|
|
DANA SPICER 3-2-1549
1410 Series Flange Yoke
UPC: 023913233969
Part Number: 3-2-1549
|
DANA SPICER 3-2-1549 Flange Yoke 1410 Series
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: FACTORY DIRECT TO YOU
YOUR COST:
$84.81 Sale Price $71.45You Save $13.36
|
DANA SPICER 3-2-1549
1410 Series Flange Yoke
- A - Flange or Swing Diameter = 4.760 inches
- B - Bolt Circle Diameter = 3.938 inches
- Bolt Hole Diameter = 0.484 inches
- Bolt Holes = 4
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 3.149 inches
- Series = 1410
- Outside Snap Ring Style
- U-Joint Width between snap rings = 4.187 inches
- D - U-Joint Bearing cap diameter = 1.187 inches
- G - Center of u-joint bore to Face of flange = 1.690 inches
- X - inches
- Y - inches
- Special Notes: BOLT HOLES ARE ON 36 DEGREES
|
|
DANA SPICER 3-2-1549 Flange Yoke 1410 Series
|
|
