DANA SPICER 3-2-1769 Flange Yoke 1480 Series
Part Number:
3-2-1769


UPC:
Your Cost $42.86 Sale Price $40.31
You Save $2.55
Sorry, sold out
STATUS:  Discontinued Item...See other choices listed

DANA SPICER 3-2-1769

1480 Series Flange Yoke




Spicer

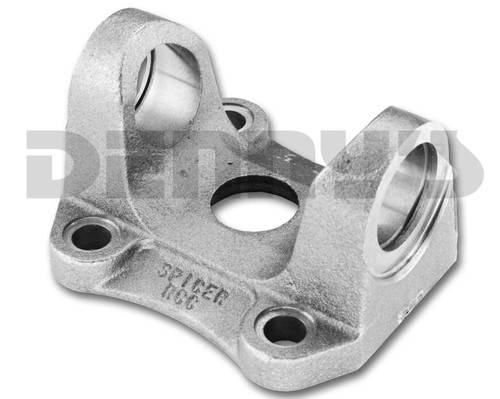

DANA SPICER 3-2-1769 Flange Yoke 1480 Series
DANA SPICER 3-2-1769 Flange Yoke 1480 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  Discontinued Item...See other choices listed
YOUR COST:  $42.86 Sale Price $40.31
You Save $2.55

DANA SPICER 3-2-1769

1480 Series Flange Yoke

  • A - Flange or Swing Diameter = 5.354 inches
  • B - Bolt Circle Diameter = 4.252 inches
    • Bolt Hole Diameter = 0.509 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 2.680 inches
    • Center Pilot = FEMALE
  • Series = 1480
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 4.187 inches
    • D - U-Joint Bearing cap diameter = 1.375 inches
  • G - Center of u-joint bore to Face of flange = 1.800 inches
  • X - inches
  • Y - inches
  • Special Notes: Bolt holes are equally spaced. Part has hole thru center.





Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 3-2-1769 Flange Yoke 1480 Series

DANA SPICER 3-2-1769 Flange Yoke 1480 Series
