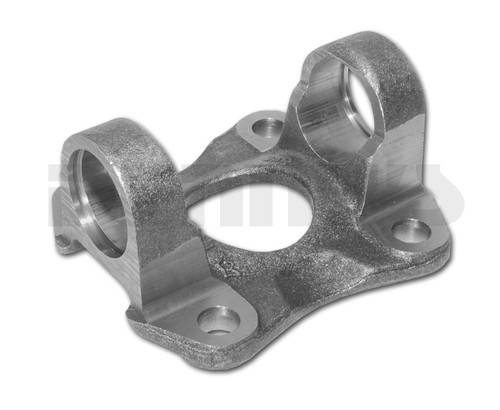

DANA SPICER 3-2-809 Flange Yoke 1350 Series
|
|
Your Cost
$62.95 Sale Price $56.95You Save $6.00
STATUS:
IN STOCK
|
|
DANA SPICER 3-2-809
1350 Series Flange Yoke
UPC: 023913230906
Part Number: 3-2-809
|
DANA SPICER 3-2-809 Flange Yoke 1350 Series
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: IN STOCK
YOUR COST:
$62.95 Sale Price $56.95You Save $6.00
|
DANA SPICER 3-2-809
1350 Series Flange Yoke
- A - Flange or Swing Diameter = 4.500 inches
- B - Bolt Circle Diameter = 3.750 inches
- Bolt Hole Diameter = 0.438 inches
- Bolt Holes = 4
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 2.750 inches
- Series = 1350
- Outside Snap Ring Style
- U-Joint Width between snap rings = 3.625 inches
- D - U-Joint Bearing cap diameter = 1.187 inches
- G - Center of u-joint bore to Face of flange = 1.281 inches
- X - inches
- Y - inches
- Special Notes: CORVETTE REAR HALF SHAFT FLANGE YOKE
|
|
DANA SPICER 3-2-809 Flange Yoke 1350 Series
|
|
