DANA SPICER 3-2-909 Flange Yoke 1480 Series
Part Number:
3-2-909


UPC:
023913217921
Your Cost $146.95
Sorry, sold out
STATUS:  FACTORY BACK ORDER at this time

DANA SPICER 3-2-909

1480 Series Flange Yoke




Spicer

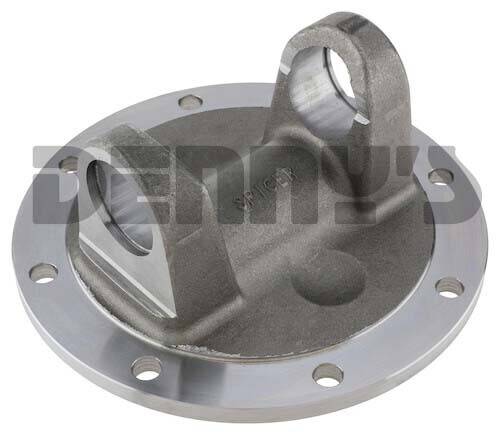

DANA SPICER 3-2-909 Flange Yoke 1480 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY BACK ORDER at this time
YOUR COST:  $146.95

DANA SPICER 3-2-909

1480 Series Flange Yoke

  • A - Flange or Swing Diameter = 6.875 inches
  • B - Bolt Circle Diameter = 6.125 inches
    • Bolt Hole Diameter = 0.386 inches
    • Bolt Holes = 8
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 5.312 inches
    • Center Pilot = MALE
  • Series = 1480
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 4.187 inches
    • D - U-Joint Bearing cap diameter = 1.375 inches
  • G - Center of u-joint bore to Face of flange = 1.938 inches
  • X - inches
  • Y - inches
  • Special Notes: FLANGE HAS PILOT FOR BRAKE





Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 3-2-909 Flange Yoke 1480 Series
