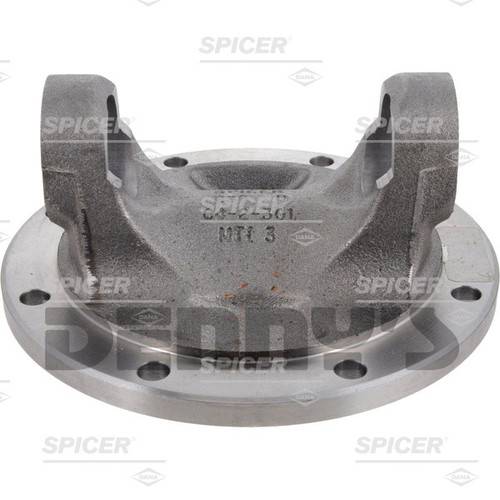

DANA SPICER 4-2-699 Flange Yoke 1550 Series
|
|
Your Cost
$238.29 Sale Price $200.74You Save $37.55
STATUS:
FACTORY DIRECT TO YOU
|
|
DANA SPICER 4-2-699
1550 Series Flange Yoke
UPC: 023913219376
Part Number: 4-2-699
|
DANA SPICER 4-2-699 Flange Yoke 1550 Series
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: FACTORY DIRECT TO YOU
YOUR COST:
$238.29 Sale Price $200.74You Save $37.55
>>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
|
DANA SPICER 4-2-699
1550 Series Flange Yoke
- A - Flange or Swing Diameter = 6.875 inches
- B - Bolt Circle Diameter = 6.125 inches
- Bolt Hole Diameter = 0.386 inches
- Bolt Holes = 8
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 5.312 inches
- Series = 1550
- Outside Snap Ring Style
- U-Joint Width between snap rings = 4.964 inches
- D - U-Joint Bearing cap diameter = 1.375 inches
- G - Center of u-joint bore to Face of flange = 2 inches
- Special Notes: Flange has pilot for brake
- Use with Dana Spicer 5-155X, 5-808X or 5-809X universal joint
|
|
DANA SPICER 4-2-699 Flange Yoke 1550 Series
|
|
