NEAPCO N3-83-3281X Double Cardan 1350 CV Flange Yoke fits DODGE RAM 2500 RAM 3500 4x4 2006 to 2010 AAM Front Driveshaft

Part Number:
N3-83-3281X

UPC:

083869012674

Your Cost ~~$112.77~~ Sale Price $107.40

You Save $5.37

STATUS: IN STOCK - FREE SHIPPING

NEAPCO N3-83-3281X

DODGE RAM 2500 RAM 3500 4x4
1350 Series Double Cardan CV Flange Yoke
Fits 2006 to 2010 AAM Front Driveshaft

IMPORTANT: YOU MUST MEASURE....to order the correct parts

YOU NEED TO KNOW if you have 1.062 (1-1/16) or 1.187 (1-3/16) bearing caps in your double cardan on your front driveshaft

IF YOU HAVE 1.062 (1-1/16) inch bearing caps then you are on the wrong page....CLICK HERE
IF YOU HAVE 1.187 (1-3/16) inch bearing caps then this is the correct part for your 2003 to 2010 Ram Front Driveshaft

NEAPCO N3-83-3281X Double Cardan 1350 CV Flange Yoke fits DODGE RAM 2500 RAM 3500 4x4 2006 to 2010 AAM Front Driveshaft

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: ~~$112.77~~ Sale Price $107.40

You Save $5.37

NEAPCO N3-83-3281X

DODGE RAM 2500 RAM 3500 4x4
1350 Series Double Cardan CV Flange Yoke
Fits 2006 to 2010 AAM Front Driveshaft

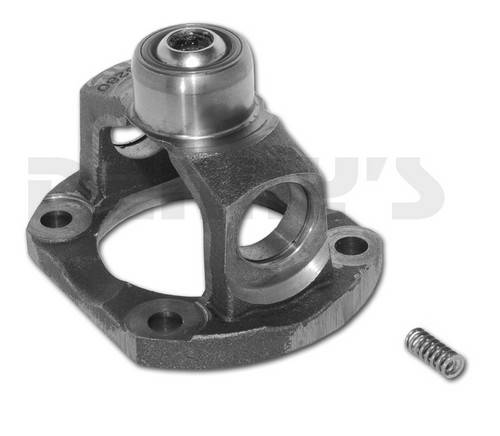

DODGE Double Cardan CV Flange Yoke 1350 Series. Non Greaseable Maintenance Free design. Mounts to any Dodge Double Cardan CV style transfer case flange with 3.125 pilot. Use this CV flange yoke to attach a 1350 Series Double Cardan CV driveshaft to a Dodge 4x4 Transfer Case.

Typically found on Dodge 4x4 front driveshafts with outside snap ring style 1350 series universal joints.

1350 Series Double Cardan CV Flange Yoke
Use with 1350 Series greaseable u-joints listed below.
- Does not work with non greaseable Dana Spicer 5-1350X or 5-1350-1X greaseable universal joints because the body of the u-joint it too large to flex freely in this yoke
Needle Bearing Ball Socket fits 1/2 inch stud yoke
Maintenance Free
Comes with New Spring included
Bolt Pattern.... 4.25 inches measured diagonally
Pilot Diameter... 3.125 inches (3 1/8 inches)
Bearing cap diameter is 1.187 (1 3/16th) for all 1350 series CV Flange yokes
Centering Yoke Fits 1350 Series Universal Joint
- Dimension between snap rings on centering yoke is (3.625 inches) 3 5/8 inches
- Designed to fit (1.187 inches) 1 3/16 inch U-Joint Bearing cap

It is recommended that you install a new rubber boot every time you service the Double Cardan CV joint.

Please see the bottom of this page for new rubber boot.

NEAPCO N3-83-3281X Double Cardan 1350 CV Flange Yoke fits DODGE RAM 2500 RAM 3500 4x4 2006 to 2010 AAM Front Driveshaft
Click Here to Enlarge	Click Here to Enlarge

You May Also Need These Parts to Complete the Job

Neapco 2-0053G universal joint 1350 Series non greaseable 3.622 x 1.188 Part#: 2-0053G ~~$24.10~~ $22.95	DE-15688 Installation Tool for use with Rubber Boot Part Number 2-86-418 Part#: DE-15688 $32.95
AAM 19256728 Universal Joint for AAM Front CV Driveshaft 1355 series DODGE 2500 and 3500 (40085102), (7064399) Part#: 19256728 $36.95	Dana Spicer 5-178X Greaseable u-joint 1350 Series Part#: 5-178X $20.95
DANA SPICER 2-86-418 Rubber Boot for Dodge OEM Non Greaseable CV Centering Yoke Part#: 2-86-418 $6.85	NEAPCO N3-26-757 - CV "H" Yoke 1350 Series for DODGE Part#: N3-26-757 ~~$47.20~~ $44.95
