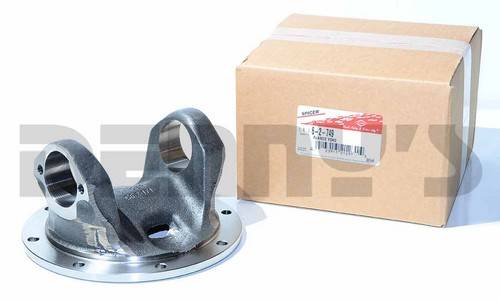

DANA SPICER 6-2-749 Flange Yoke 1710 Series
|
|
Your Cost
$210.95
STATUS:
FACTORY DIRECT TO YOU
|
|
DANA SPICER 6-2-749
1710 Series Flange Yoke
UPC: 023913212315
Part Number: 6-2-749
|
Dana Spicer 6-2-749 Flange Yoke 1710 series
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: FACTORY DIRECT TO YOU
YOUR COST:
$210.95
>>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
|
DANA SPICER 6-2-749
1710 Series Flange Yoke
- A - Flange or Swing Diameter = 8 inches
- Bolt Circle Diameter = 7.250 inches
- Bolt Hole Diameter = 0.375 inches
- Bolt Holes = 8
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 7.750 inches
- Series = 1710
- U-Joint Width = 6.094 inches
- D - U-Joint Bearing cap diameter = 1.938 inches
- G - Center of u-joint bore to Face of flange = 3 inches
- Special Notes: Bearing Plate Style
|
|
Dana Spicer 6-2-749 Flange Yoke 1710 series
|
|
