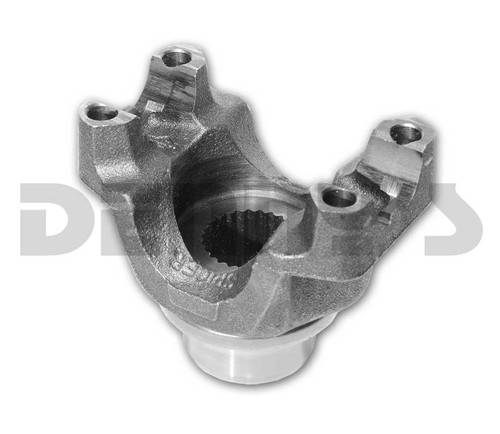

DANA SPICER 2-4-8091X Pinion Yoke U-Bolt Style 1310 series 26 spline fits Dana 44 REAR 1997 to 2006 Jeep TJ Wrangler

Part Number:
2-4-8091X

UPC:

023913235321

Diagram Number:
11

Your Cost $54.28

STATUS: IN STOCK

DANA SPICER 2-4-8091X

PINION YOKE - U-Bolt Style

Fits JEEP TJ Wrangler DANA 44 REAR
- 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
26 splines
U-Bolt style....U-Bolts sold separately ...see item at bottom of page
SPLINE OD = 1.146
D = 1.062
E = 3.219
Q = 1.500
R = 1.552
S = 3.000

IMPORTANT NOTE:

The Dana Spicer 2-4-8091X replaces old obsolete Dana Spicer part numbers 2-4-8141-1 and 2-4-7791-1.
The 2-4-8091X dimension "S" in the chart is .250 inches (1/4 inch) shorter than the original equipment pinion yokes that are no longer in production. The driveshaft slip will easily handle this without concern.

DANA SPICER 2-4-8091X Pinion Yoke U-Bolt Style 1310 series 26 spline fits Dana 44 REAR 1997 to 2006 Jeep TJ Wrangler

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $54.28

DANA SPICER 2-4-8091X

PINION YOKE - U-Bolt Style

Fits JEEP TJ Wrangler DANA 44 REAR
- 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
26 splines
U-Bolt style....U-Bolts sold separately ...see item at bottom of page
SPLINE OD = 1.146
D = 1.062
E = 3.219
Q = 1.500
R = 1.552
S = 3.000

IMPORTANT NOTE:

The Dana Spicer 2-4-8091X replaces old obsolete Dana Spicer part numbers 2-4-8141-1 and 2-4-7791-1.
The 2-4-8091X dimension "S" in the chart is .250 inches (1/4 inch) shorter than the original equipment pinion yokes that are no longer in production. The driveshaft slip will easily handle this without concern.

DANA SPICER 2-4-8091X Pinion Yoke U-Bolt Style 1310 series 26 spline fits Dana 44 REAR 1997 to 2006 Jeep TJ Wrangler
