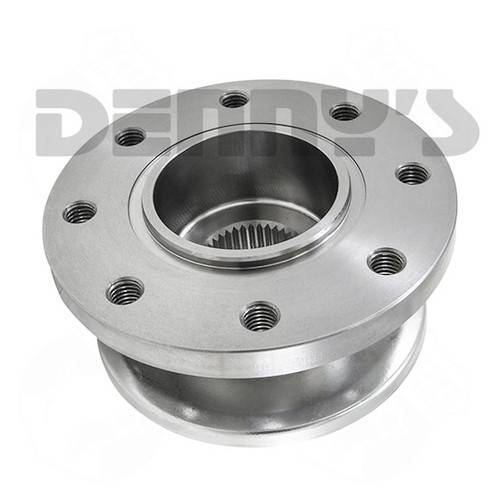

3462919 Pinion Companion Flange for Ford F350, F450 Dana 80 rear end with 37 spline pinion 84794
Part Number:
3462919


UPC:
Your Cost $227.27
Sorry, sold out
STATUS:  FACTORY BACK ORDER at this time

3462919

PINION FLANGE - COMPANION FLANGE

FITS FORD F350, F450 DANA 80 rear end with 37 spline pinion gear

Can also be used on any DANA 80 to convert pinion yoke to companion flange

  • Use with 1410 or 1480 Series flange yoke see listings at the bottom of this page
  • SPLINE OD = 1.609
  • C = 2.953 Male Pilot
  • E = 2.500
  • F = 2.00 end to washer surface
  • G = 3.25
  • COUNTERBORE DEPTH = .240

3462919 is an exact replacement for obsolete Dana Spicer part number 84794, YY D80-RND-37R, BC3Z4851B


3462919 Pinion Companion Flange for Ford F350, F450 Dana 80 rear end with 37 spline pinion 84794
3462919 Pinion Companion Flange for Ford F350, F450 Dana 80 with 37 spline pinion 84794
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY BACK ORDER at this time
YOUR COST:  $227.27

3462919

PINION FLANGE - COMPANION FLANGE

FITS FORD F350, F450 DANA 80 rear end with 37 spline pinion gear

Can also be used on any DANA 80 to convert pinion yoke to companion flange

  • Use with 1410 or 1480 Series flange yoke see listings at the bottom of this page
  • SPLINE OD = 1.609
  • C = 2.953 Male Pilot
  • E = 2.500
  • F = 2.00 end to washer surface
  • G = 3.25
  • COUNTERBORE DEPTH = .240

3462919 is an exact replacement for obsolete Dana Spicer part number 84794, YY D80-RND-37R, BC3Z4851B

image/jpeg
3462919 Pinion Companion Flange for Ford F350, F450 Dana 80 rear end with 37 spline pinion 84794

3462919 Pinion Companion Flange for Ford F350, F450 Dana 80 with 37 spline pinion 84794
