Dana Spicer 211631X CV Flange Yoke 1330 Series Double Cardan FORD with 4.25 inch bolt circle and 2 inch pilot

Part Number:
211631X

UPC:

023913230722

Your Cost $118.68

STATUS: IN STOCK - FREE SHIPPING

DANA SPICER 211631X

FORD Double Cardan CV Flange Yoke 1330 Series. Non Greaseable Maintenance Free design. Mounts to any Ford Double Cardan CV style transfer case flange.

Use this CV flange yoke to attach a 1330 Series Spicer Double Cardan CV driveshaft to a Ford 4x4 Transfer Case.

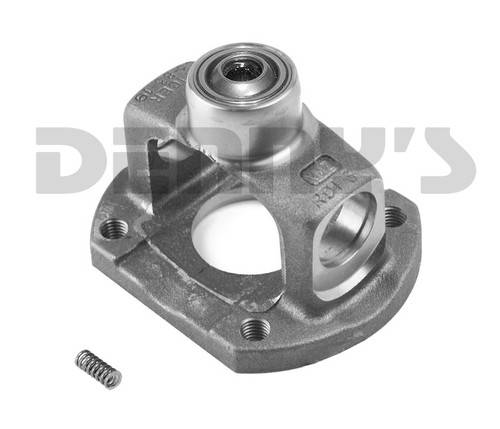

Dana Spicer 211631X CV Flange Yoke 1330 Series Double Cardan FORD with 4.25 inch bolt circle and 2 inch pilot

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $118.68

DANA SPICER 211631X

FORD Double Cardan CV Flange Yoke 1330 Series.

Non Greaseable Maintenance Free design.

Mounts to Ford Double Cardan CV style transfer case flange with 4.25 inch bolt circle and 2 inch pilot diameter

Use this CV flange yoke to attach a 1330 Series Spicer Double Cardan CV driveshaft to a Ford 4x4 Transfer Case.

1330 Series Double Cardan CV Flange Yoke
4 Mounting holes are THREADED to accept OEM Ford bolts
Use with 1330 Series U-Joints listed below.
Needle Bearing Ball Socket fits 1/2 inch stud yoke
Maintenance Free
Comes with New Spring included
Bolt Pattern.... 4.25 inches measured diagonally
Pilot Diameter... 2 inches
Centering Yoke Fits 1330 Series Universal Joint
- Dimension between locating tabs on centering yoke is (3.625 inches) 3 5/8 inches
- Designed to fit (1.062 inches) 1 1/16 inch U-Joint Bearing cap

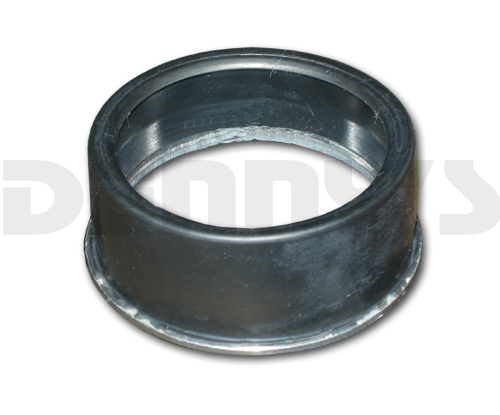

- It is recommended that you install a new rubber boot every time you service the Double Cardan CV joint.

  Please see the bottom of this page for new rubber boot

Dana Spicer 211631X CV Flange Yoke 1330 Series Double Cardan FORD with 4.25 inch bolt circle and 2 inch pilot

You May Also Need These Parts to Complete the Job

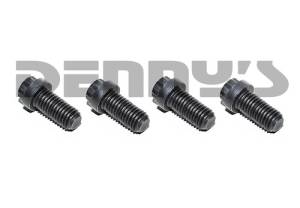

42-1855 BOLT Set M12-1.75 for Ford Transmission/Transfer Case Flange - 12mm 12 point bolt set Part#: 42-1855 $11.95	DE-15688 Installation Tool for use with Rubber Boot Part Number 2-86-418 Part#: DE-15688 $32.95
Dana Spicer 5-1330-1X GREASEABLE Universal Joint 1330 Series Part#: 5-1330-1X $20.43	Dana Spicer 5-213X Universal Joint 1330 Series Greaseable U-Joint Part#: 5-213X $19.19
DANA SPICER 5-1330X - Universal Joint 1330 Series with (4) 1.062 Bearing Caps NON Greaseable Part#: 5-1330X $20.77	DANA SPICER 2-86-418 Rubber Boot for Ford OEM Non Greaseable CV Centering Yoke Part#: 2-86-418 $6.85
Ford CV H Yoke 1330 Series Part#: N2-26-527 $48.95	DANA SPICER 2-26-527 Double Cardan CV H Yoke 1330 Series fits 1330 series CV Driveshaft Part#: 2-26-527 ~~$55.22~~ $46.24
