Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

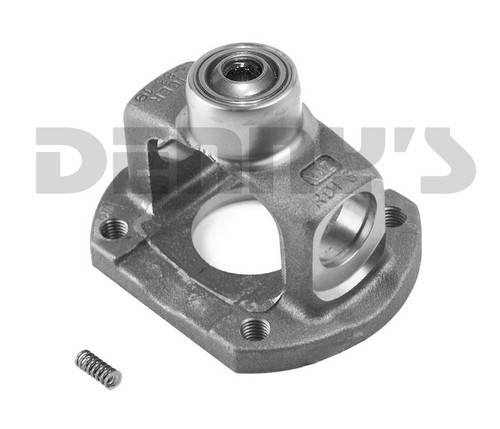

Spicer 211631X CV Flange Yoke 1330 Series Double Cardan FORD with 4.25 inch bolt circle and 2 inch pilot
Part Number:
211631X


UPC:
023913230722
Your Cost $118.68
STATUS:  IN STOCK - FREE SHIPPING

SPICER 211631X

  • FORD Double Cardan CV Flange Yoke 1330 Series.
  • Non Greaseable Maintenance Free design.
  • Mounts to Ford Double Cardan CV style transfer case flange with 4.25 inch bolt circle and 2 inch pilot diameter

Use this CV flange yoke to attach a 1330 Series Spicer Double Cardan CV driveshaft to a Ford 4x4 Transfer Case.



Spicer
Spicer 211631X CV Flange Yoke 1330 Series Double Cardan FORD with 4.25 inch bolt circle and 2 inch pilot
Spicer 211631X CV Flange Yoke 1330 Series Double Cardan FORD with 4.25 inch bolt circle and 2 inch pilot
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $118.68

SPICER 211631X

  • FORD Double Cardan CV Flange Yoke 1330 Series.
  • Non Greaseable Maintenance Free design.
  • Mounts to Ford Double Cardan CV style transfer case flange with 4.25 inch bolt circle and 2 inch pilot diameter

Use this CV flange yoke to attach a 1330 Series Spicer Double Cardan CV driveshaft to a Ford 4x4 Transfer Case.

  • 1330 Series Double Cardan CV Flange Yoke
  • 4 Mounting holes are THREADED to accept OEM Ford bolts
  • Use with 1330 Series U-Joints listed below.
  • Needle Bearing Ball Socket fits 1/2 inch stud yoke
  • Maintenance Free
  • Comes with New Spring included
  • Bolt Pattern.... 4.25 inches measured diagonally
  • Pilot Diameter... 2 inches
  • Centering Yoke Fits 1330 Series Universal Joint
    • Dimension between locating tabs on centering yoke is (3.625 inches) 3 5/8 inches
    • Designed to fit (1.062 inches) 1 1/16 inch U-Joint Bearing cap
    • image/jpegIt is recommended that you install a new rubber boot every time you service the Double Cardan CV joint.

      Please see the bottom of this page for new rubber boot
