DANA 60 FRONT - CHEVY > PINION YOKE > 1310 SERIES

Dana Spicer 2-4-3801X Pinion Yoke U-Bolt style 1310 series 29 splines fits Dana 60 front Chevy K30, GMC K35

Part Number:
2-4-3801X

UPC:

023913259624

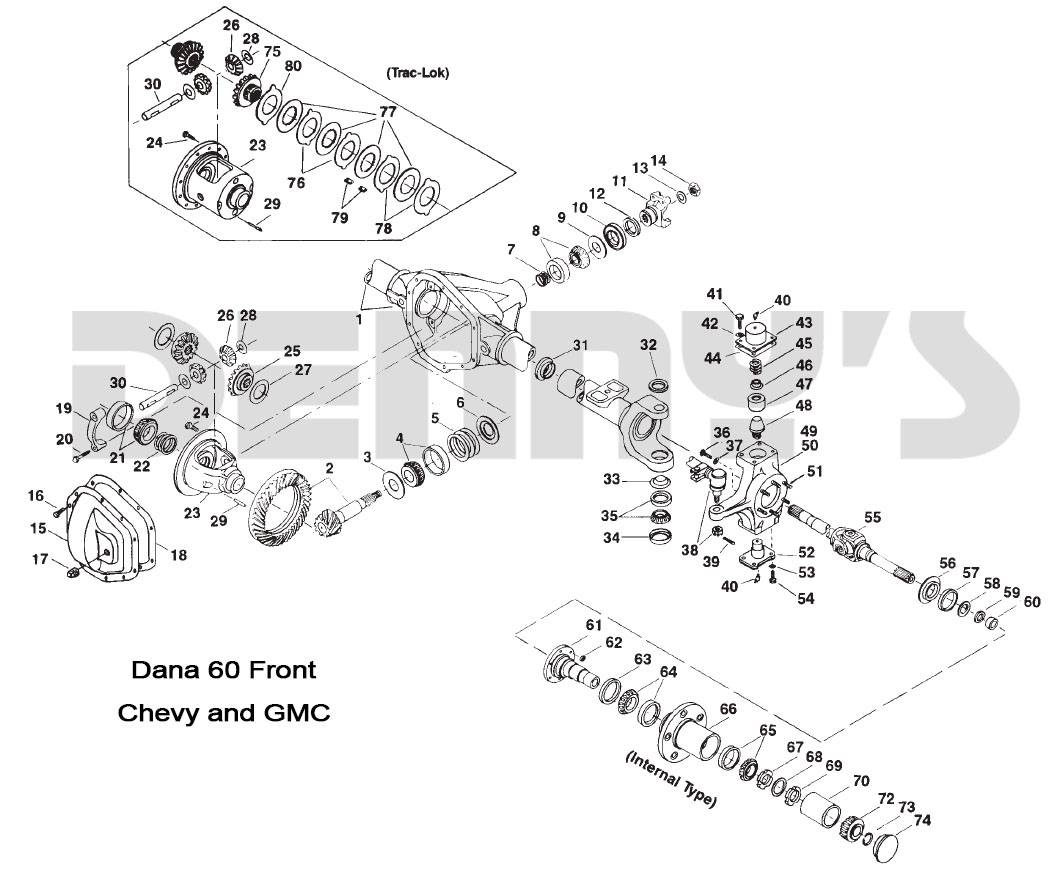

Diagram Number:
11

Your Cost ~~$53.90~~ Sale Price $45.14

You Save $8.76

STATUS: IN STOCK

Dana Spicer 2-4-3801X

Pinion Yoke U-Bolt Style

Fits Dana 60, 61, 70

Fits Dana 60 front in Chevy K30, GMC K35

1310 Series
29 splines
U-Bolt Style.. sold separately please see bottom of this page
D = 1.062
E = 3.219

Spicer

Dana Spicer 2-4-3801X Pinion Yoke U-Bolt style 1310 series 29 splines fits Dana 60 front Chevy K30, GMC K35

Dana Spicer 2-4-3801X Pinion Yoke U-Bolt style 1310 series 29 splines fits Dana 60 front Chevy K30, GMC K35

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: ~~$53.90~~ Sale Price $45.14

You Save $8.76

Dana Spicer 2-4-3801X

Pinion Yoke U-Bolt Style

Fits Dana 60, 61, 70

Fits Dana 60 front in Chevy K30, GMC K35

1310 Series
29 splines
U-Bolt Style.. sold separately please see bottom of this page
D = 1.062
E = 3.219

	Model/Part #: 2-4-3801X
Spline O.D.	1.276
No. of Splines	29 I
R) Hub Dia.	1.875
Q) Len. Thru Hole	1.500
S) C/L to End	2.938
C'Bore Depth	.000
Style	UB
Slinger Part No.	34592

image/jpeg

Dana Spicer 2-4-3801X Pinion Yoke U-Bolt style 1310 series 29 splines fits Dana 60 front Chevy K30, GMC K35

Dana Spicer 2-4-3801X Pinion Yoke U-Bolt style 1310 series 29 splines fits Dana 60 front Chevy K30, GMC K35

You May Also Need These Parts to Complete the Job

Dana Spicer 42449 Pinion Seal fits Chevy, GMC, Ford, Dodge with Dana 60 Part#: 42449 $7.95	Dana Spicer 2-94-28X U-Bolt Set fits 1.062 bearing cap diameter 1.416 CL on 1310 or 1330 pinion yokes, transfer case yokes and transmission yokes FORD, CHEVY, GMC, DODGE, JEEP, IHC Part#: 2-94-28X $5.98
Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.10	Dana Spicer 5-1310-1X Universal Joint 1310 Series GREASEABLE 3.219 x 1.062 outside snap rings Part#: 5-1310-1X $26.95
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66
