DANA SPICER SPL55-4X Front Axle Universal Joint GREASEABLE 3.00 lockup dimension fits OEM Axle shaft 2005 to 2016 FORD F-250 Super Duty, F-350 Super Duty with DANA 60 Front
Part Number:
SPL55-4X


UPC:
023913126216
Your Cost $61.77
STATUS:  IN STOCK

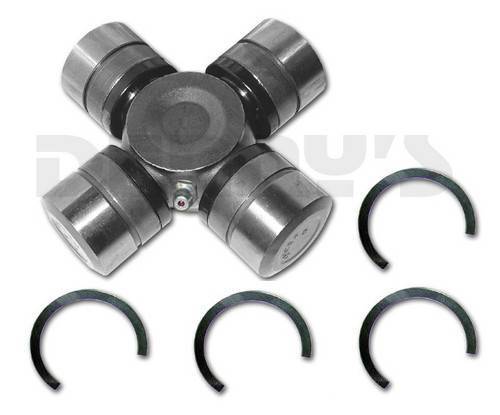

Dana Spicer SPL55-4X

Dana 60 Front Axle U-joint

  • GREASEABLE front axle universal joint
  • Fits OEM axle shaft FORD F-250 and F-350 Super Duty with Dana 60 Front Axles
    • 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

DIMENSIONS

  • C & D = 1.375 inch diameter with inside "C" Clips to lock the cap in place.
  • A & B = 3 inches is the span between the yoke inner surfaces where the "C" Clips lock in.
  • 1480WJ series
  • Replaces old number Dana Spicer part number 5-806X

See SPL55-3X for NON GREASEABLE version

See SPL70-4X for LARGER axle u-joint

Spicer
DANA SPICER SPL55-4X Front Axle Universal Joint GREASEABLE 3.00 lockup dimension fits OEM Axle shaft 2005 to 2016 FORD F-250 Super Duty, F-350 Super Duty with DANA 60 Front
DANA SPICER SPL55-4X Front Axle Universal Joint GREASEABLE 3.00 lockup dimension fits OEM Axle shaft 2005 to 2016 FORD F-250 Super Duty, F-350 Super Duty with DANA 60 Front
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $61.77

Dana Spicer SPL55-4X

Dana 60 Front Axle U-joint

  • GREASEABLE front axle universal joint
  • Fits OEM axle shaft FORD F-250 and F-350 Super Duty with Dana 60 Front Axles
    • 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

DIMENSIONS

  • C & D = 1.375 inch diameter with inside "C" Clips to lock the cap in place.
  • A & B = 3 inches is the span between the yoke inner surfaces where the "C" Clips lock in.
  • 1480WJ series
  • Replaces old number Dana Spicer part number 5-806X

See SPL55-3X for NON GREASEABLE version

See SPL70-4X for LARGER axle u-joint
