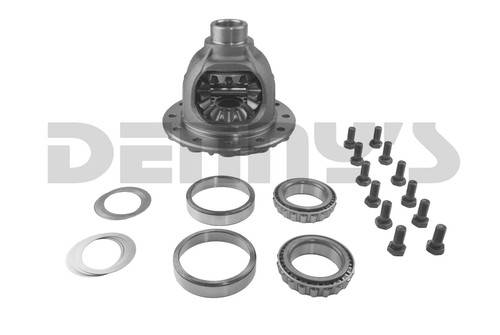

Dana Spicer 2005501 Dana 60 / Super 60 Open DIFF CARRIER LOADED CASE 1.50 - 35 spline 4.56 ratio and UP fits 2005 to 2018 FORD F250, F350, F450, F550 HIGH PINION Dana 60 FRONT differential

Part Number:
2005501

UPC:

023913132316

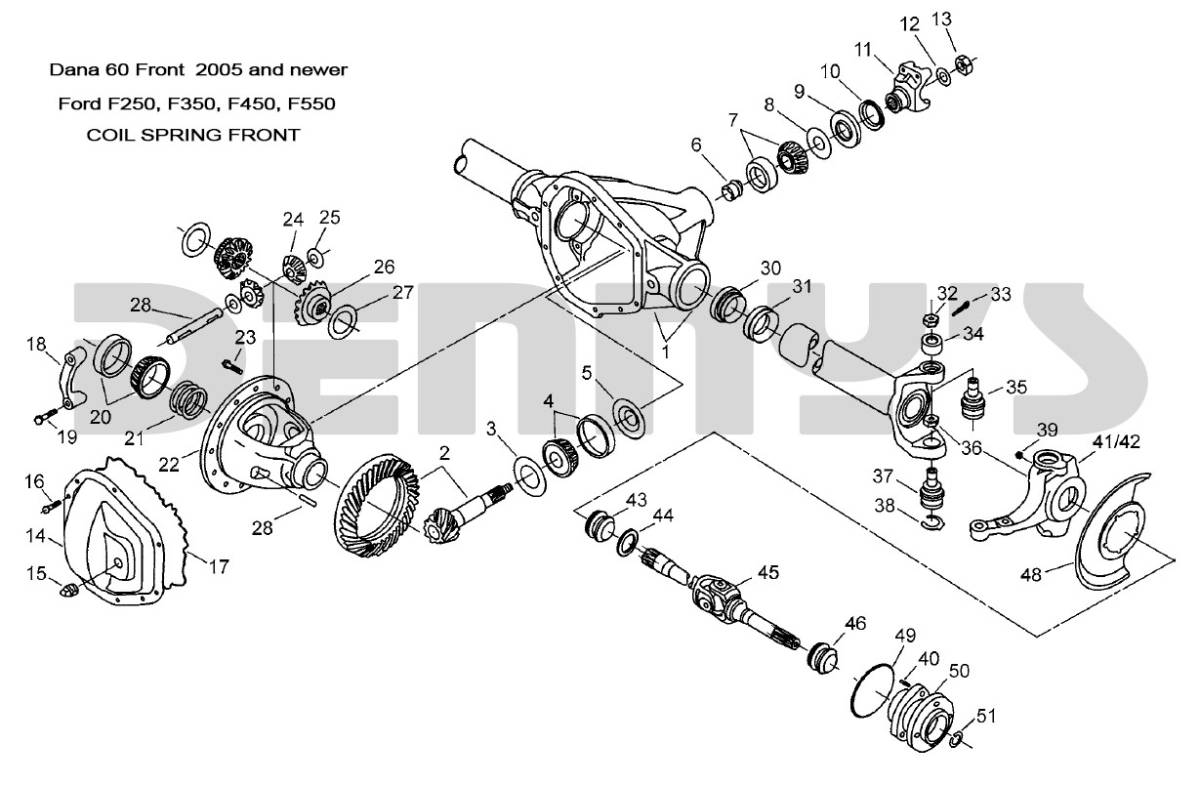

Diagram Number:
22

Your Cost $319.95

STATUS: IN STOCK - FREE SHIPPING

Dana Spicer 2005501

OPEN DIFFERENTIAL CARRIER LOADED CASE ASSEMBLY

Fits FORD F250, F350, F450, F550 with Dana 60 High Pinion Reverse rotation Front Axle
- 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
DANA 60 / Super 60 OPEN differential for FORD HIGH PINION FRONT
- OPEN DIFF - NOT positraction
- LOADED CASE complete with Internal Parts
- Not compatible with ABS
- Fits 4.56 and UP Gear ratios
  - 2.360 inches from end of side bearing mount to face of flange
- Fits 1.50 - 35 spline axles

INCLUDES:

(2) 706047X DIFF BEARINGS - CUPS AND CONES
(1) 702002 / 708012 SET DIFF BEARING SHIM KIT
(12) 701056X RING GEAR BOLTS

Dana Spicer 2005501 Dana 60 / Super 60 Open DIFF CARRIER LOADED CASE 1.50 - 35 spline 4.56 ratio and UP fits 2005 to 2018 FORD F250, F350, F450, F550 HIGH PINION Dana 60 FRONT differential

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $319.95

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

Dana Spicer 2005501

OPEN DIFFERENTIAL CARRIER LOADED CASE ASSEMBLY

Fits FORD F250, F350, F450, F550 with Dana 60 High Pinion Reverse rotation Front Axle
- 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
DANA 60 / Super 60 OPEN differential for FORD HIGH PINION FRONT
- OPEN DIFF - NOT positraction
- LOADED CASE complete with Internal Parts
- Not compatible with ABS
- Fits 4.56 and UP Gear ratios
  - 2.360 inches from end of side bearing mount to face of flange
- Fits 1.50 - 35 spline axles

INCLUDES:

(2) 706047X DIFF BEARINGS - CUPS AND CONES
(1) 702002 / 708012 SET DIFF BEARING SHIM KIT
(12) 701056X RING GEAR BOLTS

Dana Spicer 2005501 Dana 60 / Super 60 Open DIFF CARRIER LOADED CASE 1.50 - 35 spline 4.56 ratio and UP fits 2005 to 2018 FORD F250, F350, F450, F550 HIGH PINION Dana 60 FRONT differential
