Dana Spicer 3-4-5731-1X Pinion Yoke 1350 series OEM replacement fits Dana 60 front in 2005 to 2016 Ford Super Duty F250, F350, F450, F550

Part Number:
3-4-5731-1X

UPC:

023913229986

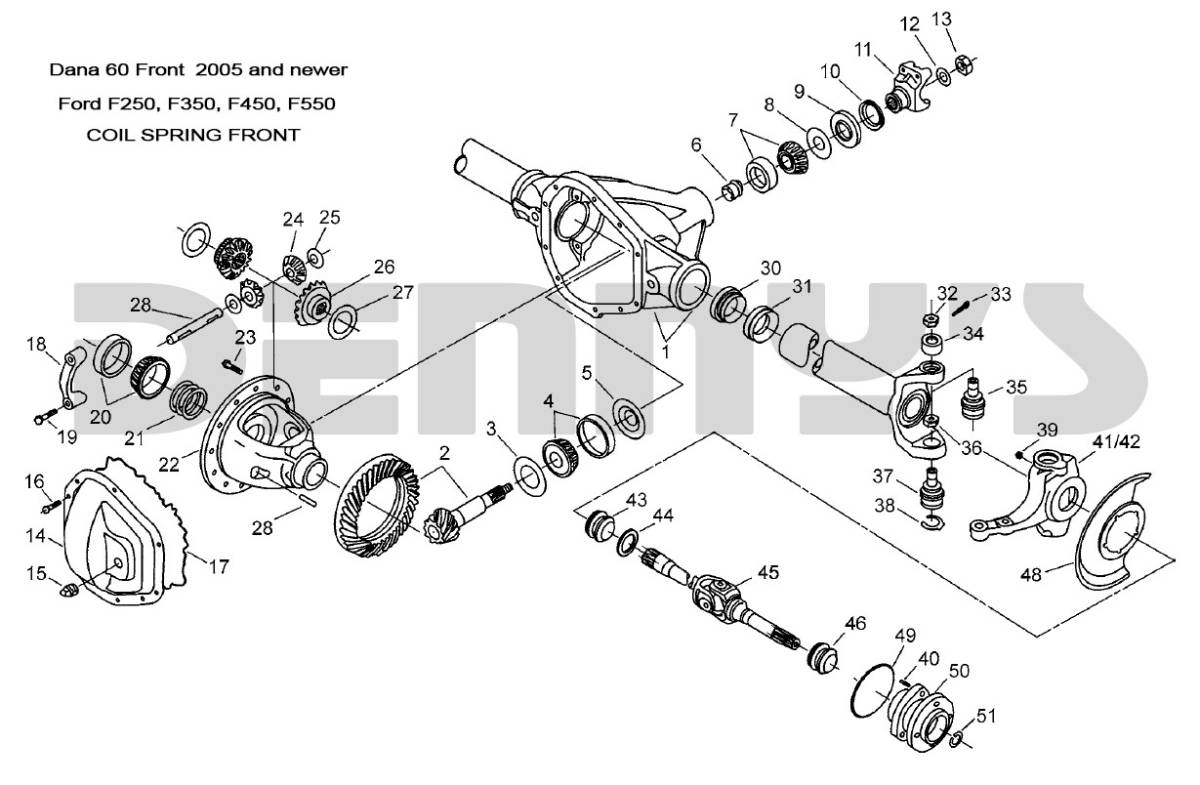

Diagram Number:
11

Your Cost $55.95

STATUS: IN STOCK

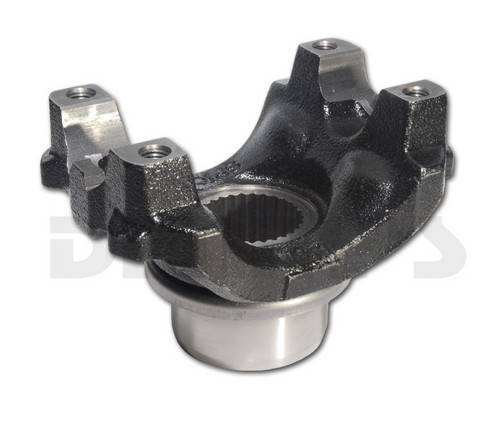

Dana Spicer 3-4-5731-1X

PINION YOKE
Fits Dana 60 front in Ford Super Duty F250, F350, F450, F550
- 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
1350 series
OEM Strap and Bolt style
- Strap and bolt set can be purchased separately at the bottom of this page.

DIMENSIONS

Fits 1350 series u-joint 3.625 inches (3 5/8) wide with 1.188 inches (1 3/16) bearing cap diameter
SPLINE OD = 1.276
D = 1.188
E = 3.625
Q = 1.500
R = 1.875
S = 3.000

Genuine Dana Spicer Pinion Yoke

Replaces Dana Spicer 3-4-14531-1 and 3-4-12771-1

Dana Spicer 3-4-5731-1X can be used to replace the 3-4-14531-1 and 3-4-12771-1 by simply removing the dust shield. Otherwise these yokes are all the same

Dana Spicer 3-4-5731-1X Pinion Yoke 1350 series OEM replacement fits Dana 60 front in 2005 to 2016 Ford Super Duty F250, F350, F450, F550

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $55.95

Dana Spicer 3-4-5731-1X

PINION YOKE
Fits Dana 60 front in Ford Super Duty F250, F350, F450, F550
- 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
1350 series
OEM Strap and Bolt style
- Strap and bolt set can be purchased separately at the bottom of this page.

DIMENSIONS

Fits 1350 series u-joint 3.625 inches (3 5/8) wide with 1.188 inches (1 3/16) bearing cap diameter
SPLINE OD = 1.276
D = 1.188
E = 3.625
Q = 1.500
R = 1.875
S = 3.000

Genuine Dana Spicer Pinion Yoke

Replaces Dana Spicer 3-4-14531-1 and 3-4-12771-1

Dana Spicer 3-4-5731-1X can be used to replace the 3-4-14531-1 and 3-4-12771-1 by simply removing the dust shield. Otherwise these yokes are all the same.

Dana Spicer 3-4-5731-1X Pinion Yoke 1350 series OEM replacement fits Dana 60 front in 2005 to 2016 Ford Super Duty F250, F350, F450, F550
