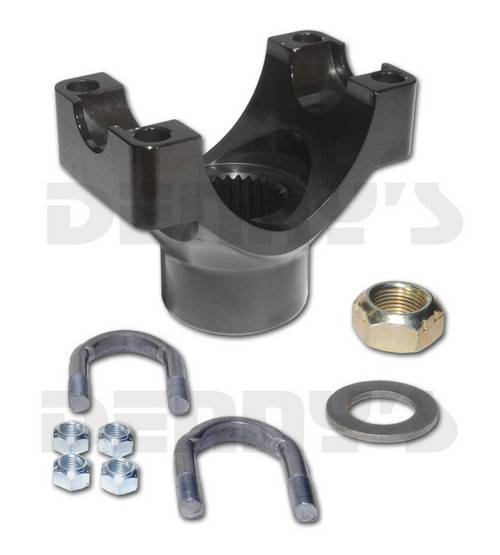

9522421 CHROMOLY Pinion Yoke 1350 series fits Ford Dana 60, 61, 70 front or rear with 29 Spline pinion
Part Number:
9522421


UPC:

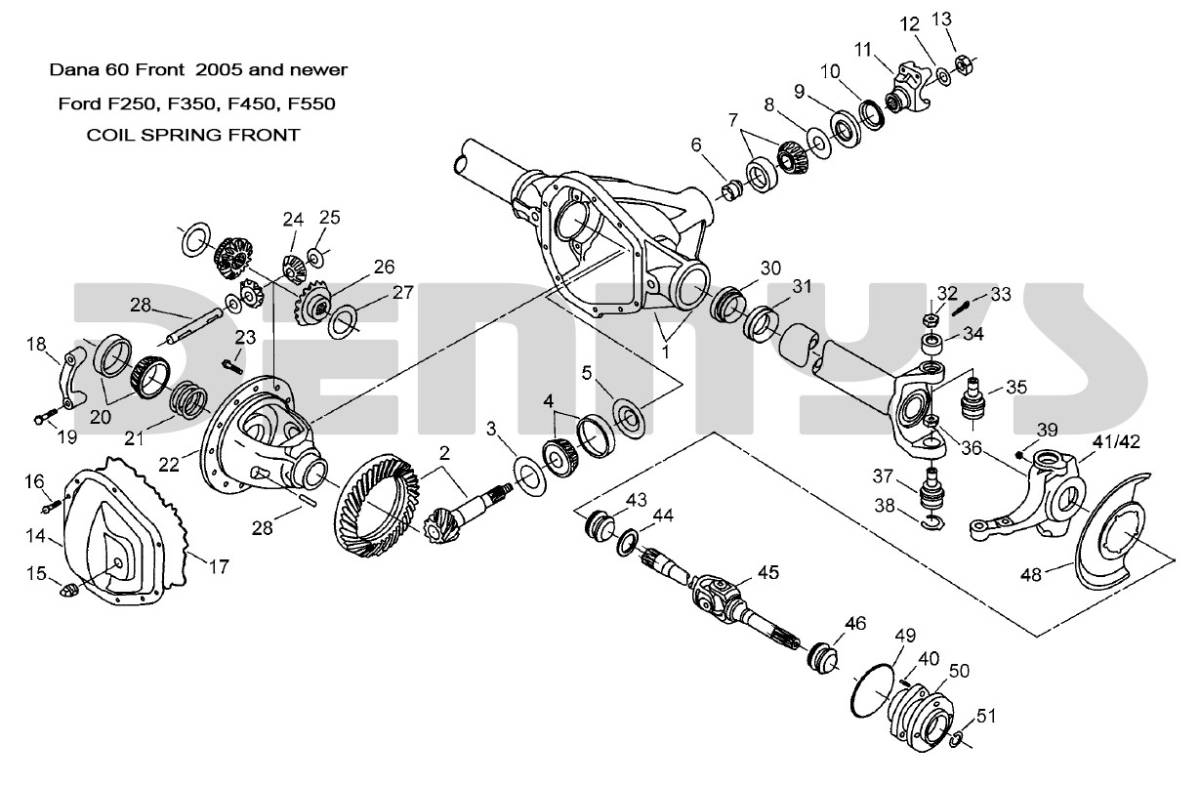

Diagram Number:
11
Your Cost $169.95
STATUS:  IN STOCK - FREE SHIPPING

9522421

Chromoly Pinion Yoke 1350 Series

  • Fits Dana 60, 61, 70
    • Fits Ford Dana 60, 61, 70 front end or rear ends with 29 spline pinion gear
  • Fits 1350 Series universal joint
    • E = 3.625 between tab shoulders
    • D = 1.188 Bearing Cap Diameter
  • 29 spline
  • Forged 4340 Chromoly for superior strength

INCLUDES

  • Pinion nut and washer
  • 1350 series u-bolt set.

DIMENSIONS

  • S = 3.00 inch
  • R = 1.875 inch
  • Q = 1.500 inch
    • full spline - no counterbore
  • SPLINE OD = 1.276 inch
  • Washer OD = 1.500 inch
  • Washer ID = .900 inch
  • Washer thickness = .120 inch
  • Socket wrench size for nut =  1-5/16 inch
9522421 CHROMOLY Pinion Yoke 1350 series fits Ford Dana 60, 61, 70 front or rear with 29 Spline pinion
9522421 CHROMOLY Pinion Yoke 1350 series fits Ford Dana 60, 61, 70 front or rear with 29 Spline pinion
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $169.95

9522421

Chromoly Pinion Yoke 1350 Series

  • Fits Dana 60, 61, 70
    • Fits Ford Dana 60, 61, 70 front end or rear ends with 29 spline pinion gear
  • Fits 1350 Series universal joint
    • E = 3.625 between tab shoulders
    • D = 1.188 Bearing Cap Diameter
  • 29 spline
  • Forged 4340 Chromoly for superior strength

INCLUDES

  • Pinion nut and washer
  • 1350 series u-bolt set.

DIMENSIONS

  • S = 3.00 inch
  • R = 1.875 inch
  • Q = 1.500 inch
    • full spline - no counterbore
  • SPLINE OD = 1.276 inch
  • Washer OD = 1.500 inch
  • Washer ID = .900 inch
  • Washer thickness = .120 inch
  • Socket wrench size for nut =  1-5/16 inch
