9606112 FORGED Pinion Yoke 1410 series U-Bolt style fits all Dana 60, 61, 70 with 29 spline pinion
Part Number:
9606112


UPC:
Diagram Number:
12
Your Cost $169.95
STATUS:  IN STOCK - FREE SHIPPING

9606112

  • PINION YOKE
  • Fits all Dana 60, 61 and 70 with 29 spline pinion
  • 1410 series
  • U-Bolt style
  • FORGED


9606112 FORGED Pinion Yoke 1410 series U-Bolt style fits all Dana 60, 61, 70 with 29 spline pinion
9606112 FORGED Pinion Yoke 1410 series U-Bolt style fits all Dana 60, 61, 70 with 29 spline pinion
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $169.95

9606112

  • PINION YOKE
  • Fits all Dana 60, 61 and 70 with 29 spline pinion
  • 1410 series
  • U-Bolt style
  • FORGED

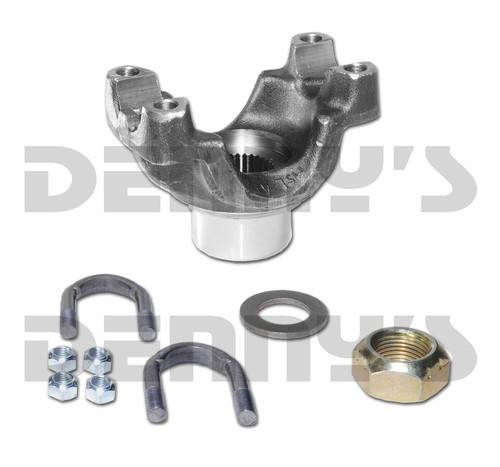

Comes with U-Bolts, Pinion Nut and Pinion Washer

  • Fits 1410 series u-joint 4.188 inches (4 3/16) wide with 1.188 inches (1 3/16) bearing cap diameter
  • 1410 series
  • 29 SPLINE
  • U-Bolt Style
  • SPLINE OD = 1.276
  • D = 1.188
  • E = 4.188
  • Q = 1.500
  • R = 1.875
  • S = 3.5
