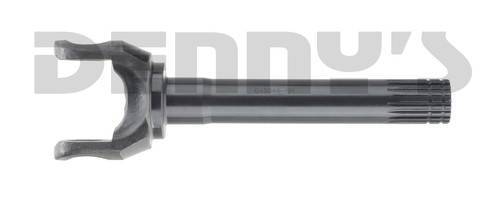

Dana Spicer 10007802 CHROMOLY OUTER Axle Shaft fits 1973 to 1980 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with DANA 44 front axle 19 spline 9.94 inches fits 5-760X Axle U-joint

Part Number:
10007802

UPC:

023913254360

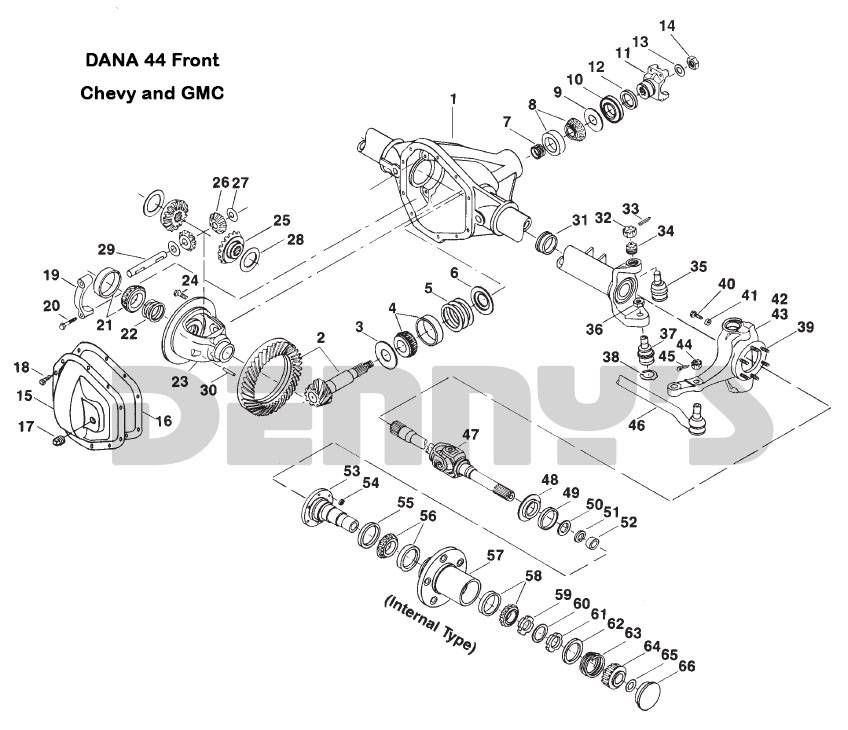

Diagram Number:
47-OUTER

Your Cost $163.95

STATUS: IN STOCK - FREE SHIPPING

Dana Spicer 10007802

CHROMOLY OUTER AXLE SHAFT
- 19 Splines
Fits DANA 44 Front Axle
- Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
  - 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
Use with original inner axle shaft or replacement made for 5-760X u-joint ONLY
DOES NOT FIT all with 1.062 bearing caps (see 5-260X ) typically found on 1969 to 1972 Chevy and GMC Blazer, 1/2 ton, 3/4 ton.

DIMENSIONS

19 SPLINES
Dimension "B1" = 1.250 inch diameter
Dimension "B" = 9.94 inches
Use with Spicer 5-760X Universal Joint...See bottom of this page
- U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
- U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )

Dana Spicer 10007802 CHROMOLY OUTER Axle Shaft fits 1973 to 1980 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with DANA 44 front axle 19 spline 9.94 inches fits 5-760X Axle U-joint

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $163.95

Dana Spicer 10007802

CHROMOLY OUTER AXLE SHAFT
- 19 Splines
Fits DANA 44 Front Axle
- Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
  - 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
Use with original inner axle shaft or replacement made for 5-760X u-joint ONLY
DOES NOT FIT all with 1.062 bearing caps (see 5-260X ) typically found on 1969 to 1972 Chevy and GMC Blazer, 1/2 ton, 3/4 ton.

DIMENSIONS

19 SPLINES
Dimension "B1" = 1.250 inch diameter
Dimension "B" = 9.94 inches
Use with Spicer 5-760X Universal Joint...See bottom of this page
- U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
- U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )

Dana Spicer 10007802 CHROMOLY OUTER Axle Shaft fits 1973 to 1980 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with DANA 44 front axle 19 spline 9.94 inches fits 5-760X Axle U-joint

You May Also Need These Parts to Complete the Job

Dana Spicer 31624 Snap Ring for Outer Axle Shafts DANA 44 Part#: 31624 $0.76	Dana Spicer 36364 Seal Retainer for Outer Axle Shaft fits 1973 and newer Chevy K5, K10, K20, GMC Jimmy, K15, K25 with DANA 44 front axle Part#: 36364 $3.65
Dana Spicer 5-760X Front Axle Universal Joint for CHEVY and GMC 1973 and newer with DANA 44 Front ALL with 1.188 u-joint bearing cap diameter Part#: 5-760X $28.56
